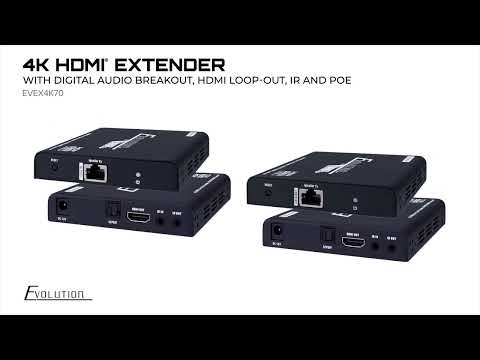

Evolution EVEX4K70 4K HDMI Extender with Digital Audio Breakout, HDMI Loop-out, IR and PoE (up to 230')

Evolution EVEX4K70 4K HDMI Extender with Digital Audio Breakout, HDMI Loop-out, IR and PoE (up to 230')
Disponibilidad:
en stock, listo para ser enviado
$197.95 - $197.95
$197.95
$197.95 - $197.95
$197.95

Evolution EVEX4K70 4K HDMI Extender with Digital Audio Breakout, HDMI Loop-out, IR and PoE (up to 230ft)

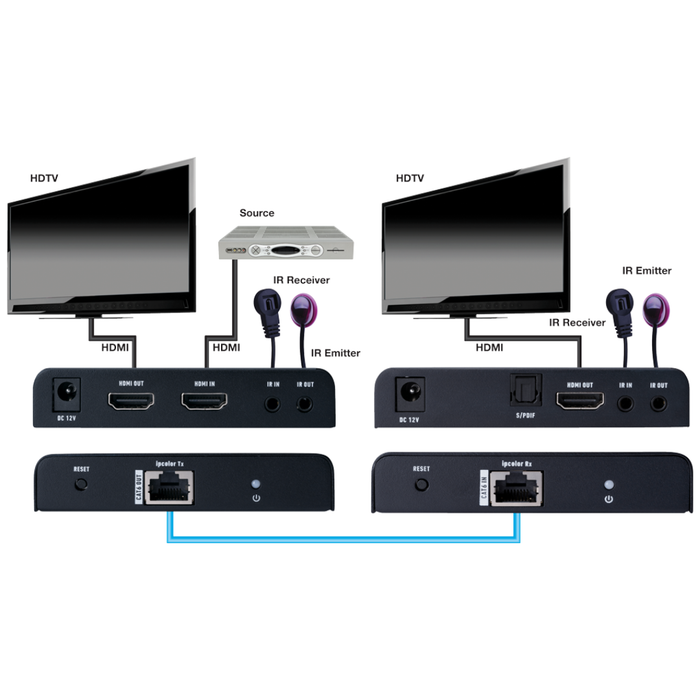

The Vanco Evolution Evolution 4K HDMI Extender with Digital Audio Breakout, HDMI Loop-out, IR and PoE includes both a transmitter and receiver that allows you to send 4K HDMI video over Cat6/6a/7 cable up to 230'.
  • Allows HDMI audio/video signals to be transmitted using a single Cat6/6A/7 Cable
  • Extends 4K@60Hz, 4:4:4, and HDR10 up to 230ft/70m and 1080p up to 330ft/100m
  • Features bi-directional Power over Ethernet (PoE) technology which transmits power over Cat6, allowing the transmitter and receiver to be powered off of a single power supply
  • Supports multiple audio formats such as (Dolby TrueHD 7.1CH/Dolby Digital 5.1CH)
  • HDCP 1.4/2.2 compliant
  • Dynamic EDID for compatibility and plug and play operation
  • HDMI loop-out for local monitoring or use with other HDMI distribution products
  • Digital optical audio breakout for audio extraction
  • Supports bi-directional IR (20~60KHz) for source or display control
  • Slim and compact design
  • Dimensions: 4.2” x 3.9” x 1” (106.0 x 99.0 x 26.2mm)
  • Patent No. 9,710,038 B1

Tech Support Tips:

  • All specifications and ratings for the EVEX4K70 have been tested and confirmed using Cat6 cabling. Cat6 or better is strongly recommended for optimum performance, achieve rated distance, and to maximize resolution capabilities of this product. Cat5e is not recommended and may not achieve distance and/or resolution expectations.

Specifications

  • HDMI Compliance - HDMI Deep Color 30/36/48 bit color depth, Full 3D
  • HDCP Compliance - Yes
  • Video Bandwidth - 594 MHz
  • Video Support  - 480i/480p/720p/1080i/1080p/4Kx2K @60
  • Audio Support - Surround Sound (up to 7.1 ch) or stereo digital audio
  • Input TMDS Signal - 1.2 Volts (peak to peak)
  • Input DDC Signal - 5 Volts (peak to peak, TTL)
  • ESD protection - (1) Human body model +/- 6kV (air-gap discharge) & (contact discharge) (2) Core chipset - +/-8KV
  • PCB stack-up - 4 layer board (impedance control - differential 100, single 50
  • IR pass-thru - Full-duplex bi-directional

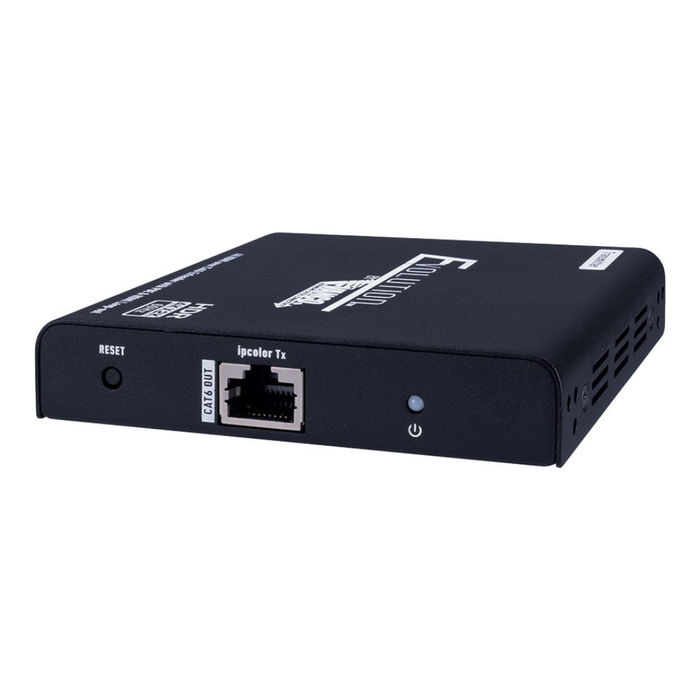

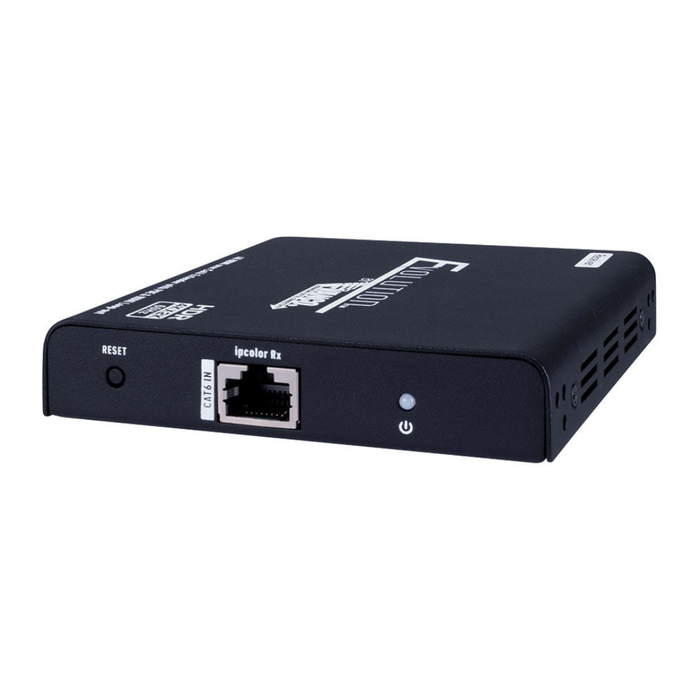

  • Input  - (TX) 1xHDMI; ( RX) 1xRJ45 + 2x3.5mm
  • Output - (TX) 1xRJ45 + 2x3.5mm; (RX) 1xHDMI
  • HDMI source control - Controllable via IR pass-through from RX to TX and from TX to RX with IR extenders
  • HDMI connector - Type A 19 pin female
  • RJ-45 connector - WE/SS 8P8C
  • LED indicators - Video lock yellow, Power, green
  • 3.5mm connector - (TX and RX) IR Receiver/ IR blaster
  • MECHANICAL SPECS
  • Housing -  Metal enclosure
  • Power supply - (1)12V 1A
  • Power consumption - 3.5 Watts TX, 2.5 Watts RX
  • Operation temperature - 0 ~ 45 degrees Celsius
  • Storage temperature - -20~85 degrees Celsius
  • Relative humidity - 20-90% RH (no condensation)

Package Contents:

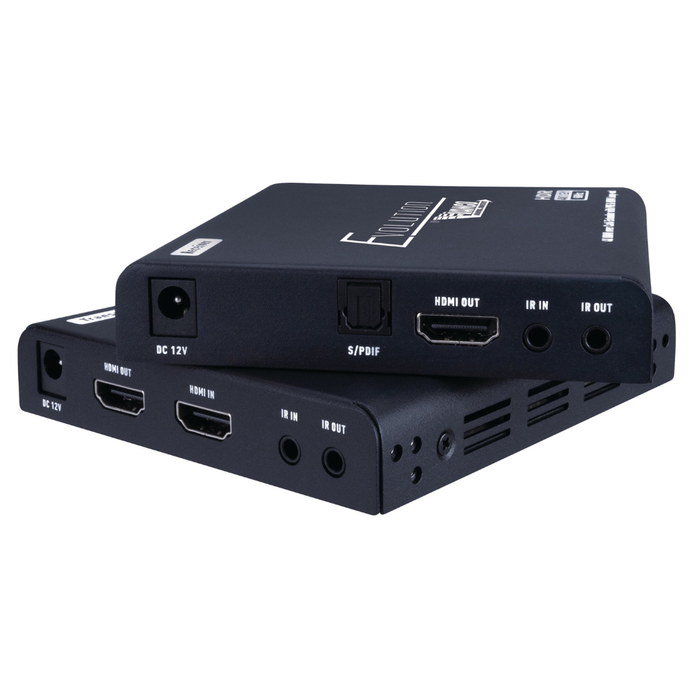

  • EVEX4K70 (TX & RX)
  • (1) IR Receiver
  • (1) IR Emitter
  • (1) Set of Mounting Hardware
  • (1) DC 12V, 1A Power Suppy
  • (1) Product Manual

Docs/Instruction Links

What is Proposition 65?

California’s Proposition 65 protects California consumers by requiring special warnings for products that contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm where those products would expose consumers to such chemicals above certain threshold levels.

If a product description on this site directed you to this page, the warning for this item is:

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Who is this message intended for?

Customers with a California billing or ship to address.

Why are you seeing the message now?

California implemented new guidelines for Proposition 65 warnings, effective August 30, 2018. These guidelines were applied to make the warnings more clear and reasonable.

Where can you get more information about Proposition 65?

Learn more from the California Office of Environmental Health Hazard Assessment (OEHHA) site here.

loading
Description

Evolution EVEX4K70 4K HDMI Extender with Digital Audio Breakout, HDMI Loop-out, IR and PoE (up to 230ft)

The Vanco Evolution Evolution 4K HDMI Extender with Digital Audio Breakout, HDMI Loop-out, IR and PoE includes both a transmitter and receiver that allows you to send 4K HDMI video over Cat6/6a/7 cable up to 230'.
  • Allows HDMI audio/video signals to be transmitted using a single Cat6/6A/7 Cable
  • Extends 4K@60Hz, 4:4:4, and HDR10 up to 230ft/70m and 1080p up to 330ft/100m
  • Features bi-directional Power over Ethernet (PoE) technology which transmits power over Cat6, allowing the transmitter and receiver to be powered off of a single power supply
  • Supports multiple audio formats such as (Dolby TrueHD 7.1CH/Dolby Digital 5.1CH)
  • HDCP 1.4/2.2 compliant
  • Dynamic EDID for compatibility and plug and play operation
  • HDMI loop-out for local monitoring or use with other HDMI distribution products
  • Digital optical audio breakout for audio extraction
  • Supports bi-directional IR (20~60KHz) for source or display control
  • Slim and compact design
  • Dimensions: 4.2” x 3.9” x 1” (106.0 x 99.0 x 26.2mm)
  • Patent No. 9,710,038 B1

Tech Support Tips:

  • All specifications and ratings for the EVEX4K70 have been tested and confirmed using Cat6 cabling. Cat6 or better is strongly recommended for optimum performance, achieve rated distance, and to maximize resolution capabilities of this product. Cat5e is not recommended and may not achieve distance and/or resolution expectations.
