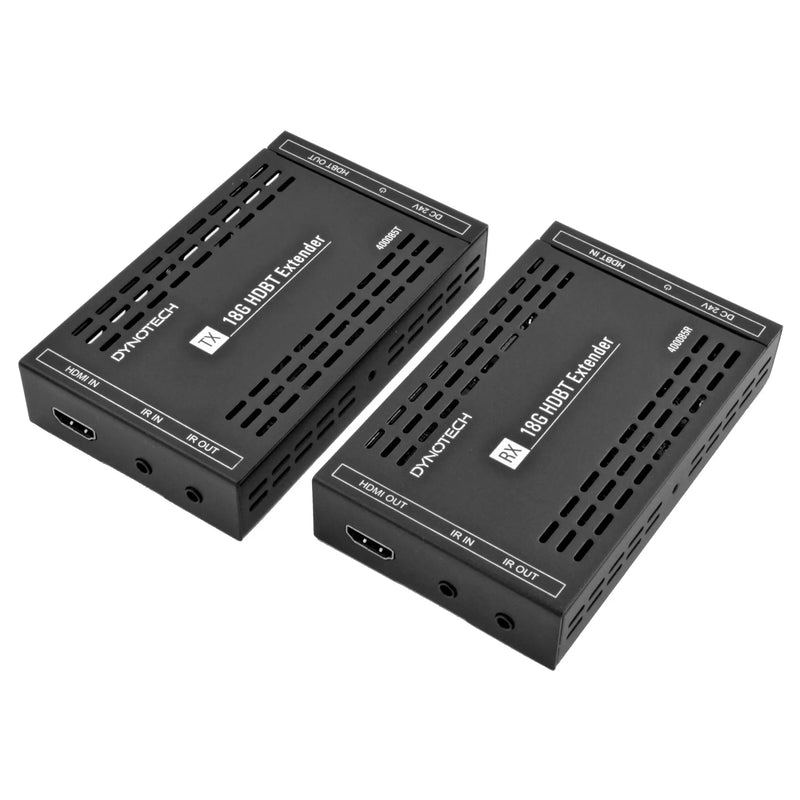

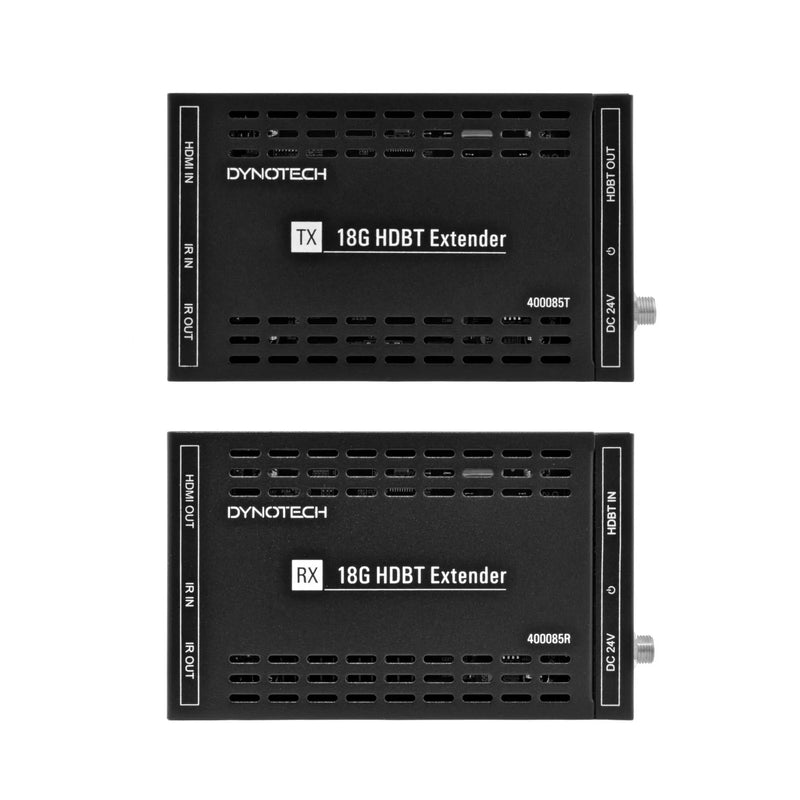

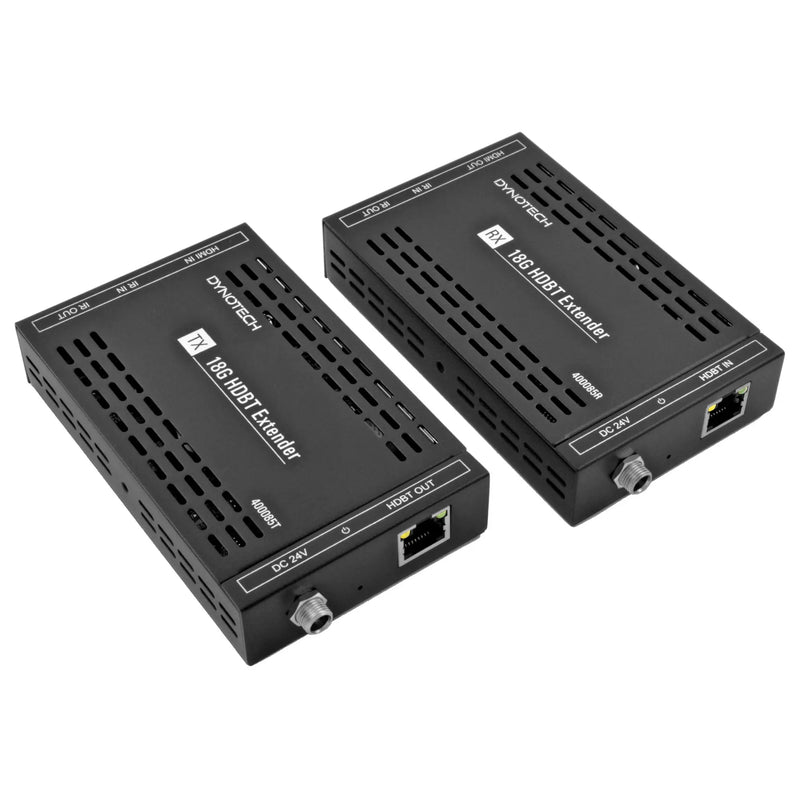

18G HDMI 2.0 HDBT Extender Kit over HDBaseT with Single CAT5e/CAT6 Cable 4K@60Hz Up to 230FT

Disponibilidad:
Stock bajo
Precio original $0.00 - Precio original $0.00
Precio original $0.00
$256.44
$256.44 - $256.44
Precio actual $256.44

With Premium HD technology, you will get the best picture quality because this technology maintains your Ultra HD 4K picture quality with super stability/reliability, even at 230 feet away from your video source via single CAT5/CAT6 network cable.

18G enabling technology applied to all video formats exceeding 10.2Gbps to accommodate transmission channel

The transmitter in this HDMI HDBaseT extender kit features a small footprint and built-in HDMI cable that connects directly to your source for reduced clutter. It’s powered from a USB port on your source device, which makes it easier to install in areas where power outlets may be limited. Mounting hardware is included for the receiver for a discreet, professional installation.

Features:

  • HMDI V2.0 standard and HDCP 2.2 compliant
  • Supports video resolution up to 4Kx2K@60Hz 4:4:4 HDR
  • Transmission distance is up tp 131ft/40m for 4Kx2K, and 230ft/70m for 1080P
  • Supports bi-directional IR pass-through for long-distance control
  • Supports bi-directional 24V PoC
  • Supports EDID and CEC pass-through

Specifications:

Transmitter (Tx)

  • Input: (1) HDMI
  • Input Connector: (1) Female type-A HDMI
  • Output: (1) HDBT
  • Output Connector: (1) RJ45
  • Control: (1) IR IN, (1) IR OUT
  • Control Connector: (2) 3.5mm mini jacks

Receiver (Rx)

  • Input: (1) HDBT
  • Input Connector: (1) RJ45
  • Output: (1) HDMI
  • Output Connector: (1) Female type-A HDMI
  • Control: (1) IR IN, (1) IR OUT
  • Control Connector: (2) 3.5mm mini jacks

General

  • Video Resolution: Up to 4Kx2K@60Hz 4:4:4
  • Transmission Mode: HDBaseT
  • Transmission Distance: 1080P@60Hz < 230ft/70m, 4K@60Hz < 131ft/40m
  • HDMI Version : 2.0
  • HDCP Version 2.2
  • Bandwidth: 18Gbps
  • Power Consumption: 11.2W (Max)
  • Operation Temperature: -10 degree celcius ~ +55 degree celcius
  • Storage Temperature: -25 degree celcius ~ +70 degree celcius
  • Relative Humidity: 10%-90%
  • Dimension (W*H*D): 74mm x 24mm x 120mm
  • Net Weight: Tx: 200g, Rx: 210g

  • 1x Transmitter (TX)
  • 1x Power Adaptor (24V DC, 1.25A)
  • 1x IR Receiver
  • 1x Receiver (RX)
  • 1x User Manual
  • 1x IR Emitter
