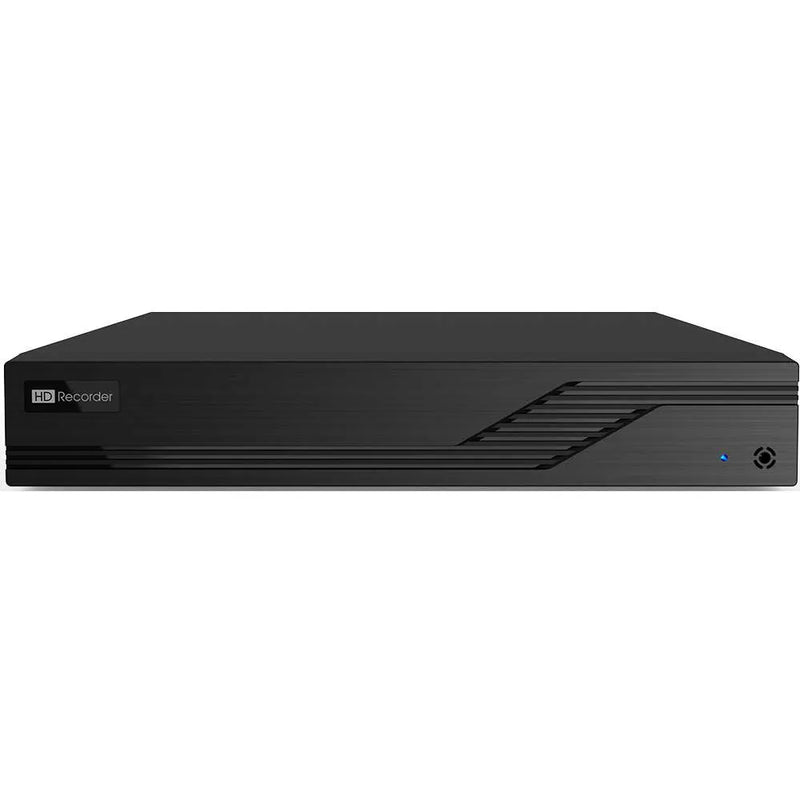

ED8008H5-BN2 Titanium 8 Channel 5MP Lite Hybrid DVR with 1 x SATA & NDAA Compliant with 2TB HDD

ED8008H5-BN2 Titanium 8 Channel 5MP Lite Hybrid DVR with 1 x SATA & NDAA Compliant with 2TB HDD

ED8008H5-BN2 is 8 CH 1080P high-definition DVRs with ability to connect analog and IP cameras simultaneously, which adopt the standard H.265 high profile compression format and the most advanced SOC technique to ensure real time recording in each channel and realize outstanding robustness of the system.

• 8 CH DVR supports TVI / AHD/CVI 5MP/4MP/1080P/720P/WD1 video input 4 /
• 8CH DVR supports 2 / 4 CH 5MP / 4MP / 3MP /1080P / 960P /720P IP video input by default
• 4CH DVR: 4CH analog video input can be switched to 4CH IP video input
• 8CH DVR: 8CH analog video input can be switched to 8CH IP video input
• Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
• Intuitive and user-friendly Graphics User Interface ( GUI , window style operation by mouse
• Multi-mode recording: manual / timed / sensor / motion / AI recording
• Playback : 4 / 8 CH simultaneously playback
• Search: time slice, time, event, tag search
• Express and flexible backup via USB, network and so on
• Pentaplex: preview, record, playback, backup and remote access
• DHCP, DDNS, PPPoE network protocol
• Remote control via Web or CMS : preview, playback, backup, PTZ and configuration
• Authorization management, log review and device status review
• Support 1080P output, true high resolution display
• Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
• Support NAT function and QRCode scanning by mobile phones
• Powerful mobile surveillance by smart phones with iOS and Andriod OS

Specifications

• 8-channel hybrid DVR supporting both analog (TVI/AHD/CVI up to 5MP) and IP cameras (up to 12 channels total in hybrid mode)
• Supports full HD 1080P recording with real-time performance on all channels
• Uses H.265 / H.265+ / H.264 compression for high-quality video with lower bandwidth and storage usage
• Video outputs include HDMI, VGA (up to 1920×1080), and BNC (CVBS spot/main output)
• Supports simultaneous 8-channel playback with advanced controls (play, pause, FF/FB, zoom)
• Recording modes include manual, scheduled, motion detection, sensor-triggered, and AI-based events
• Flexible search options: time, event, tag, and time-slice with color-coded smart playback
• Pentaplex functionality enables preview, recording, playback, backup, and remote access at the same time
• Supports PTZ control via RS-485 with up to 255 presets and 8 cruise paths
• Network connectivity via RJ-45 (100 Mbps) with support for major protocols (TCP/IP, DHCP, DDNS, HTTP/HTTPS, FTP, RTSP, SMTP, etc.)
• Remote access through web browser, CMS software, and mobile apps (iOS & Android), with up to 5 simultaneous users
• Supports NAT and QR code setup for easy remote viewing
• Storage includes 1 SATA HDD slot supporting up to 10 TB, with backup via USB or network
• Includes 2 USB 2.0 ports and supports USB mouse operation with GUI interface
• Audio support: 1 RCA input with G.711 compression
• Max bandwidth: ~32 Mbps incoming (up to 60 Mbps), 60 Mbps outgoing
• Frame rates depend on resolution (up to 30 fps; lower for higher resolutions like 5MP Lite)
• Multi-screen display layouts supported for monitoring multiple cameras
• Built-in embedded Linux operating system for stable performance
• Power: DC 12V / 2A, low consumption (≤ 8W without HDD)
• Operating conditions: -10°C to 50°C, 10–90% humidity
• Compact design (~255 × 222 × 42 mm)
• AI features include smart motion detection and basic perimeter protection
• Includes user management, log review, device monitoring, and email alerts
• Certified (CE, FCC) and compliant with environmental standards (RoHS, WEEE, REACH)

Docs/Instruction Links

• Specification Sheet
• User Manual
• Quick Start Guide
• Mobile Manual
