1000ft Bulk CAT6 23AWG UTP 8C CMR Bare Copper Unshielded 550MHz Ethernet Cable - White

1000ft Bulk CAT6 23AWG UTP 8C CMR Bare Copper Unshielded 550MHz Ethernet Cable - White
Disponibilidad:
en stock, listo para ser enviado
$179.00 - $179.00
$179.00
$179.00 - $179.00
$179.00

Vertical Cable CAT6 23AWG UTP 8C CMR Solid Bare Copper Unshielded 550MHz Riser Rated PVC Jacket 1000ft Bulk Ethernet Cable - White

  • High-Performance Data Cable
  • 550MHz Bandwith for Data Applications, Fast Ethernet and 155Mbps TP-PMD/CDDI
  • Meets or exceeds ANSI/TIA-568.2-D Transmission Performance Specifications
  • Category-6 Unshielded Twisted Pair
  • Easy-to-See Vivid-Color Conductor Insulation & Jacket
  • 23AWG Solid Bare Copper Conductors
  • Supports PoE++ (Type 3) IEEE 802.3bt (51W)
  • Riser Fire Safety Rating (CMR)
  • ETL Listed, RoHS Compliant
  • 1000ft Pull Box

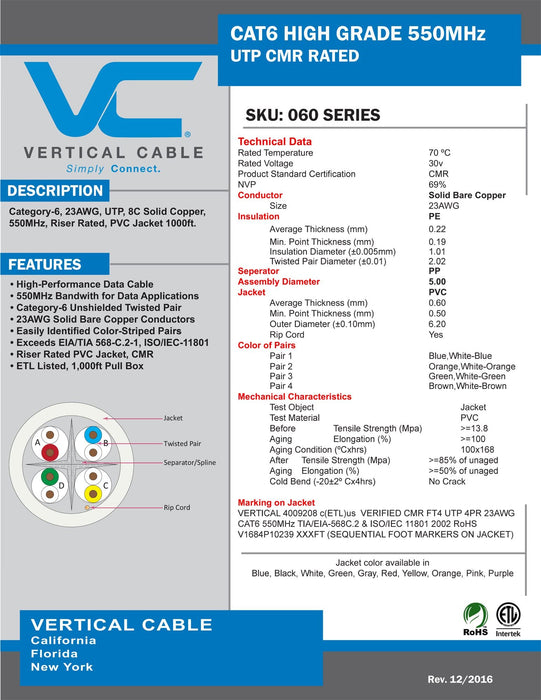

Specifications:

Certifications

  • RoHS Compliant
  • UL Listed
  • Exceeds EIA/TIA 568-C.2 and ISO/EIC

Conductor

  • Material: Sold Bare Copper
  • Size: 23AWG x 4P
  • Diameter: 0.56±/-0.008mm

Insulation

  • Material Type: HDPE
  • Diameter: 1.0±/-0.05mm
  • Average Thickness: 0.22±/-0.05mm
  • Number of Insulations: 4 Pair

Pair Colors

  • Pair 1: White - Blue/Blue
  • Pair 2: White - Orange/Orange
  • Pair 3: White - Green/Green
  • Pair 4: White - Brown/Brown

Jacket

  • Material: PVC
  • Diameter: 6.5±/-0.2mm
  • Average Thickness: 0.6±/-0.1mm
  • Flame Rate: CM/CMR
  • Rip Cord: Nylon
  • Unaged: Tensile Strength 13.5 Mpa, Elongation 150%
  • Aged: Tensile Strength 12.5 Mpa, Elongation 125%

Mechanical Characteristics

  • Cable Under the Minimum Tension: 400N
  • Conductor Elongation: 15%

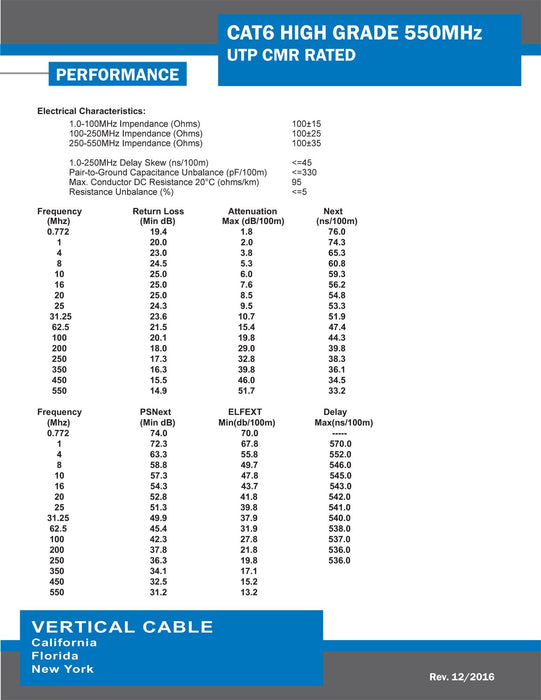

Electrical Characteristics

  • Impedance: 1-550 MHz 100±15 (Ohms)
  • Cold Bend Test: -20°C 4 Hours No Cracking
  • Overall Temperature Rating: 75°C
  • DC Resistance Unbalance: Max. 2.5%
  • DC Resistance 20°C: 87 (Ohms/Km)
  • Pair to Ground Capacitance Unbalance: 330 (pF/100M)
  • Insulation Resistance: >5000MKm
  • Dielectric Strength: DC 2500V 2s
