4 Port Unmanaged Fast Ethernet PoE Switch with 2 Uplink Ports, 10/100Mbps

Sorry, this product has been discontinued.

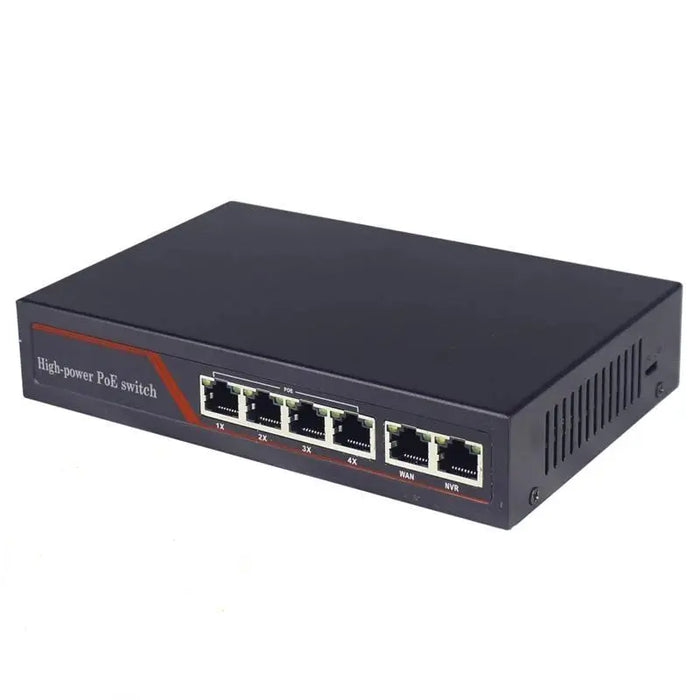

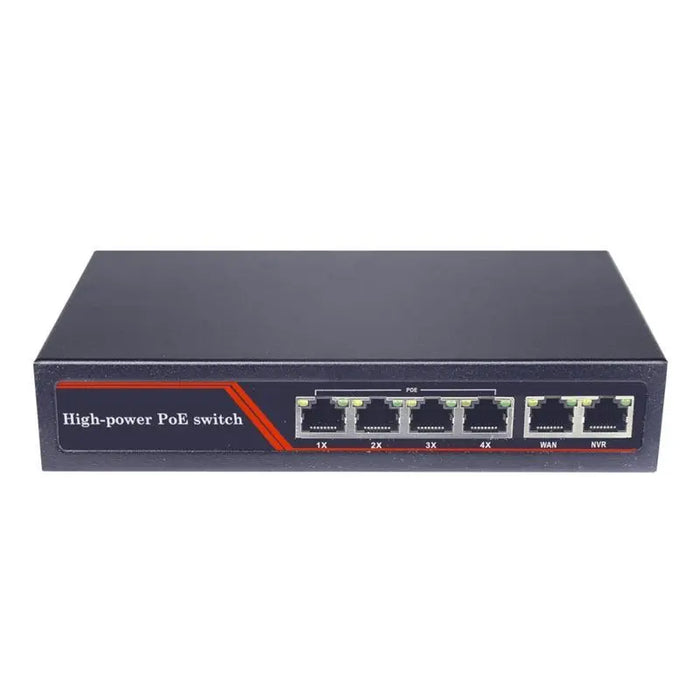

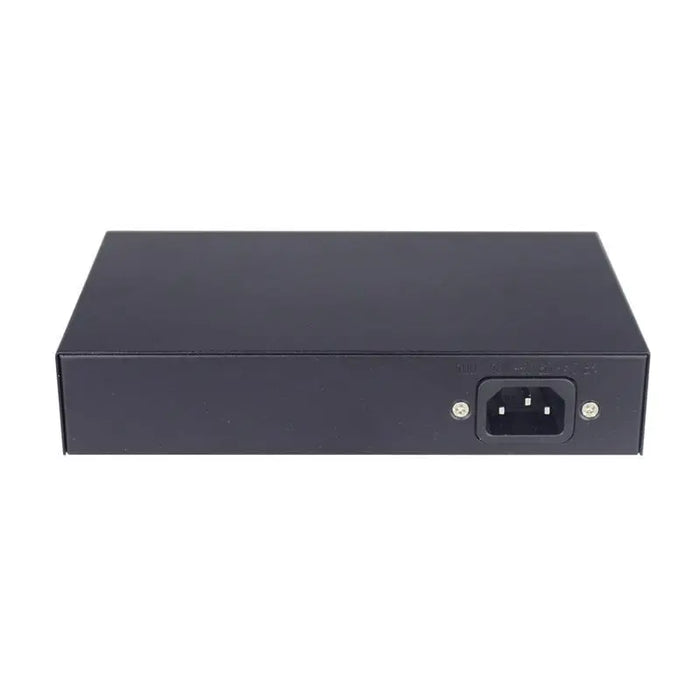

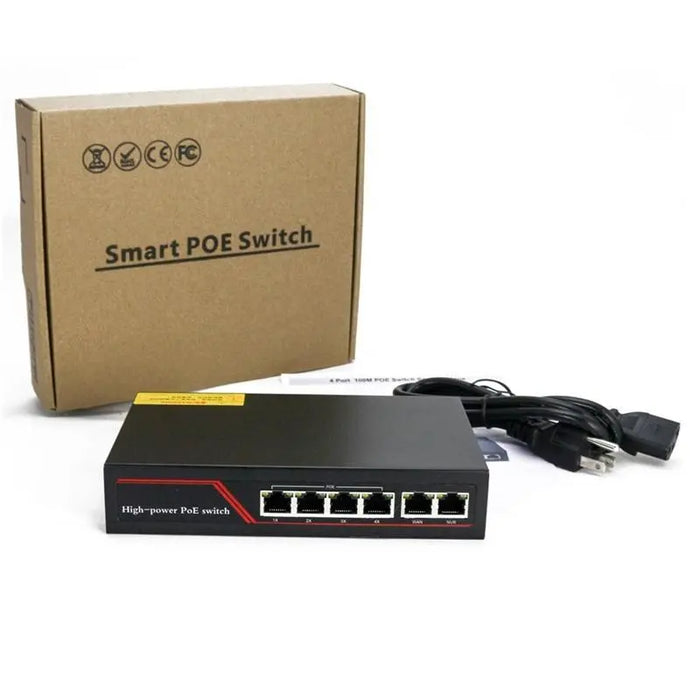

4 Port Unmanaged Fast Ethernet PoE Switch with 2 Uplink Ports, Plug and Play 10/100Mbps

MPN: POE-2006-4E-65W
Condition: New

The PoE switch support IEEE802.3af/at POE standard, using advanced sensing algorithm, only for the terminal device which support the IEEE802.3af/at power over Ethernet standard,
do not need to worry about damage to private standard PoE or non- PoE devices. Automatic recognition of PoE demand, speed, duplex and using the Auto Uplink cable,
simple and convenient to use,no need to configure, plug and play.

PoE eliminates the equipment specially connected with the power socket. The connection from the AC power supply equipment more flexible, simplified wiring,
flexible and extensible, get rid of affection by power line layout constraints in family and office network.Design of high performance to price ratio, compact,
flexible, EC series is the ideal choice of small business network to economical use of PoE deployment of wireless access point (AP) and IP camera.

Automatic detection and recognition PD device which in accordance with IEEE 802.3af/at and power supply for the device.
Intelligent power management, if the electrical equipment power exceeds the normal power output, the system will cut off power supply of the port, after 1-2 minutes, it will reexamination and power supply.

Port type: RJ45 adaptive
Port rate: 10/100M
Cable type: CAT5 or CAT6
PoE: support IEEE802.3af/at (15.4W/30W)
PoE power supply parameters: single port: 15.4W/30W/MAX Power: 65W Serials
Power supply mode:data line 1/2 (+), 3/6 (-); spare line 4/5 (+), 7/8 (-) optional
Power supply distance: Maximum power distance with CAT5 UTP 100meters,
Protocol standard: IEEE 802.3 i 10 BASE-T;IEEE 802.3 u 100 BASE-TX;IEEE 802.3 x Flow Control;IEEE 802.3 af/at Power over Ethernet
Working temperature: 0~55 °c
Storage temperature: -20~70 °c
Working humidity: 10%~90%, no condensation
Storage humidity: 5%~95%, no condensation
Power: DC 52V/1.5A
Input Voltage: AC100-240V 50/60Hz
Dimensions (L x W x H): 4.65" x 3.5" x 0.98"
