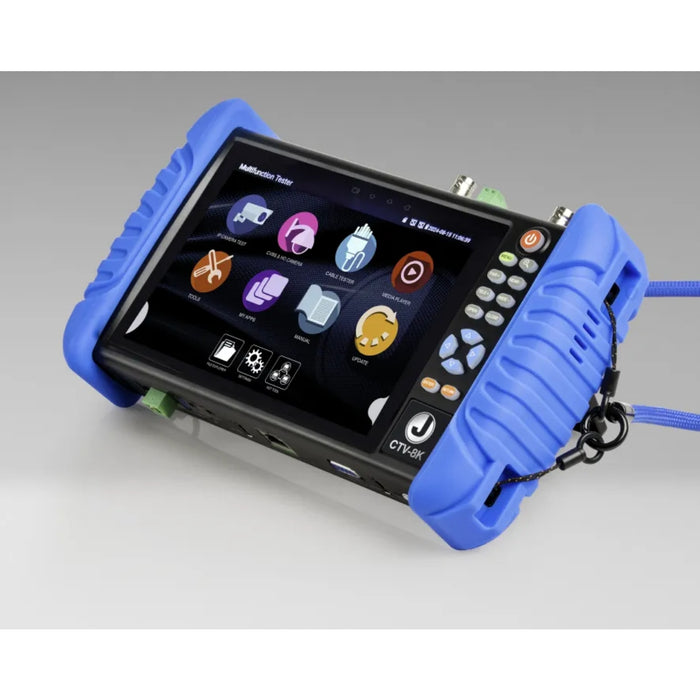

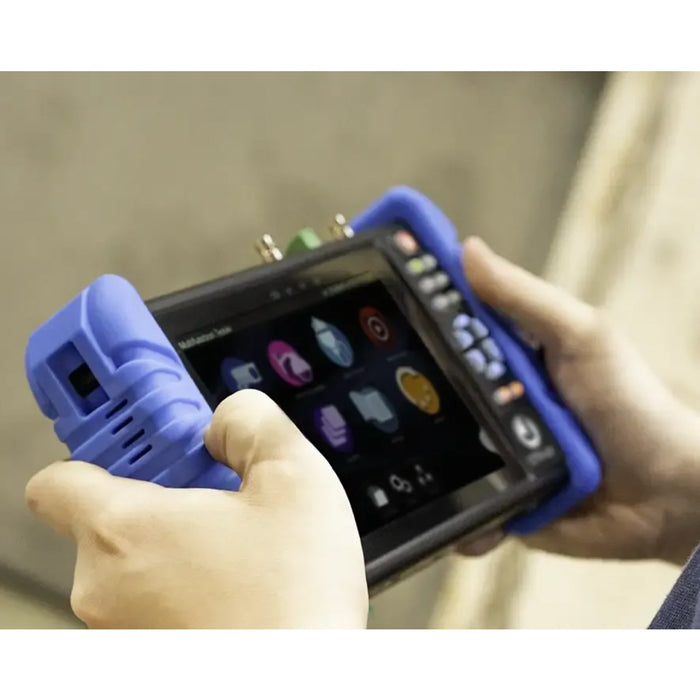

Jonard Tools CTV-8K Multifunctional CCTV Tester 8K IP Camera Tester

Specifications

• IP Camera Test  -  8K H.265 IP
• HDMI Output  -  Max support 4K 60FPS; Open HDMI app output pure color interface
• VGA Input  -  Supports up to 1920 x 1080P
• Additional Functions  -  PoE protocol detection and testing; Real-time network traffic monitoring; Cable Length Measurement/TDR; RS485 input/output
• Android System Version  -  11
• Supported Camera Types  -  IP, CVBS, AHD, CVI, TVI

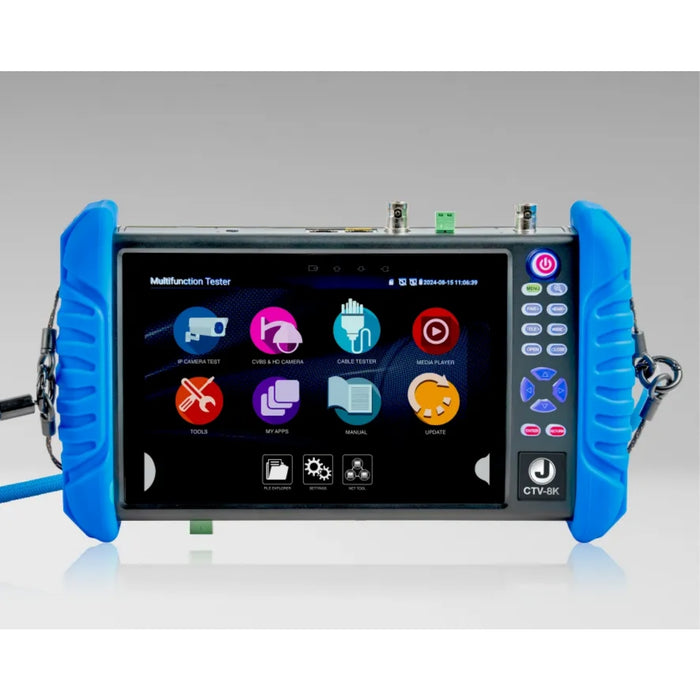

• Display  -  7-inch touch screen, 1280 x 800
• Network port   - Auto-adjusting 10/100/1000 Mbps, RJ45, Dual LAN port
• Wifi Speed  -  150 Mbps
• 8K H.265 Mainstream Test  -  New hardware decoding, 8K H.265/4K H.264 camera image display by mainstream testing
• IP Camera Type  -  ONVIF, ONVIF PTZ, Dahua IPC-HFW2100P, Hikvision DS-2CD864-E13, Samsung SNZ-5200, Tiandy TD-NC9200S2, Kodak IPC120L, Honeywell HICC-2300T, RTSP Viewer
• CVI Video Signal Test   - 1 channel CVI input (BNC interface). Supports resolutions: 720P 25/30/50/60fps,1080P 25/30fps, 2560x1440P 25/30fps, 2592x1944 20fps, 2960x1920 20fps, 3840 x 2160 12.5/15 fps.
• TVI Video Signal Test  -  1 channel TVI input (BNC interface). Supports resolutions: 720P 25/30/50/60fps, 1080P 25/30fps, 2048x1536P 18/25/30fps, 2688x1520P 15fps, 2560x1440P 15/25/30fps, 2560x1944P 12.5/20fps, 3840 x 2160 12.5/15 fps
• AHD Video Signal Test  -  1 channel AHD input (BNC interface). Supports resolutions: 720P 25/30fps, 1080P 25/30fps, 2048x1536P 18/25/30fps, 2560x1440P 15/25/30fps, 2560x1944P 12.5/ 20fps, 3840 x 2160P 15 fps
• Analog Video Test  -  1 channel BNC Input & 1 channel BNC Output , NTSC/PAL (Auto adapting)
• Battery   - 11.1V Li-Po, 5200 mAh
• IP discovery   - Auto-scan the whole network segment camera IP
• Rapid ONVIF  -  Search cameras quickly, auto log in and display images from the camera, and activate Hikvision cameras
• Hik Test Tool  -  Batch activate Hikvision cameras, display images from the camera, modify channels, batch modify IP, change username and password parameters, etc.
• DH Test Tool  -  Batch activate Dahua cameras, batch modify IP, modify channels, change username and password parameters, etc.
• Auto HD  -  Auto-recognize the resolution and auto-display the image of the connected camera. Supports coaxial PTZ control and calls the OSD menu. Supports up to 8MP TVI/CVI/AHD and CVBS cameras.
• Zoom Image  -  Supports Analog and IP camera image zooming & movement
• Snapshot, Video record and playback  -  Capture current images and record live video as JPG file. Media player will view photos and playback video
• HDMI IN  -  HDMI IN, Support 4K 30FPS, 3840x2160P 30FPS, 720×480P /720×576P/1280×720P/1920×1080P /1024×768P/1280×1024P /1280×900P /1440×900P.
• RJ45 cable TDR test  -  RJ45 cable TDR test and cable quality test -- to test cable pair status, length, attenuation, reflectivity, impedance, skew and other parameters.
• 24V 2Apower output   - Output DC24V/2A power to camera
• 12V 3A power output  -  Output DC12V/3A power to camera
• USB 5V power output -   5V 2A power output
• PoE++ power output  -  PoE++ power output, Max power 90W
• Drop-down menu  -  PoE power switch, IP setting, WLAN switch, HDMI IN functions, screen lock, password lock screen or pattern lock
• Audio test   - 1 channel audio signal input and 1 channel audio signal output to connect headphones
• PTZ control  -  Supports RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, and others.
• Color bar generator  -  Output one channel PAL/NTSC color bar video signal for testing monitors or video cables. (red, green, blue, white and black color )
• UTP Cable tester  -  Test UTP cable connection status and display on the screen. Read the number on the screen
• Data monitor  -  Captures and analyzes the command data from controlling device, also can send hexadecimal
• NET TOOL PRO  -  NET TOOL PRO-Cable Test, Wireless Tool, Link Tool, Full Duplex Detection, PING, IP Scan, DHCP Server, PPPOE, OUI Search, Socket Tool, DNS, LLLDP.
• PoE /PSE voltage test  -  Measures PoE switch voltage and displays pin configuration
• Cable length  -  TDR supports cable length up to 1.8 mi (3 km)
• External power supply    DC 15V 1.6A
• Rechargeable  -  Fasting charge, after charging 3.5 hours, normal working time is 11 hours
• Operation setting  -  Capacitive touch screen, OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, Polish, etc.
• Auto off  -  1-30 (mins)
• Working Temperature  -  -10℃---+50℃
• Working Humidity  -  30%-90%
• Dimensions  -  12 in x 7 in x 4 in (30.48 cm x 17.78 cm x 10.16 cm)
• Weight  -  4.68 lb (2124.72 g)
