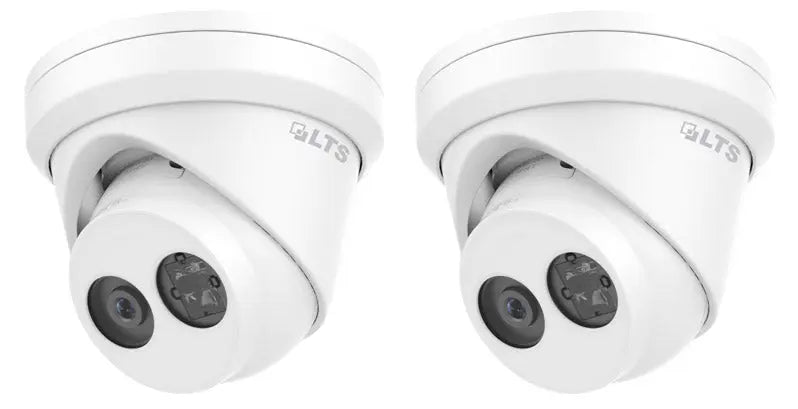

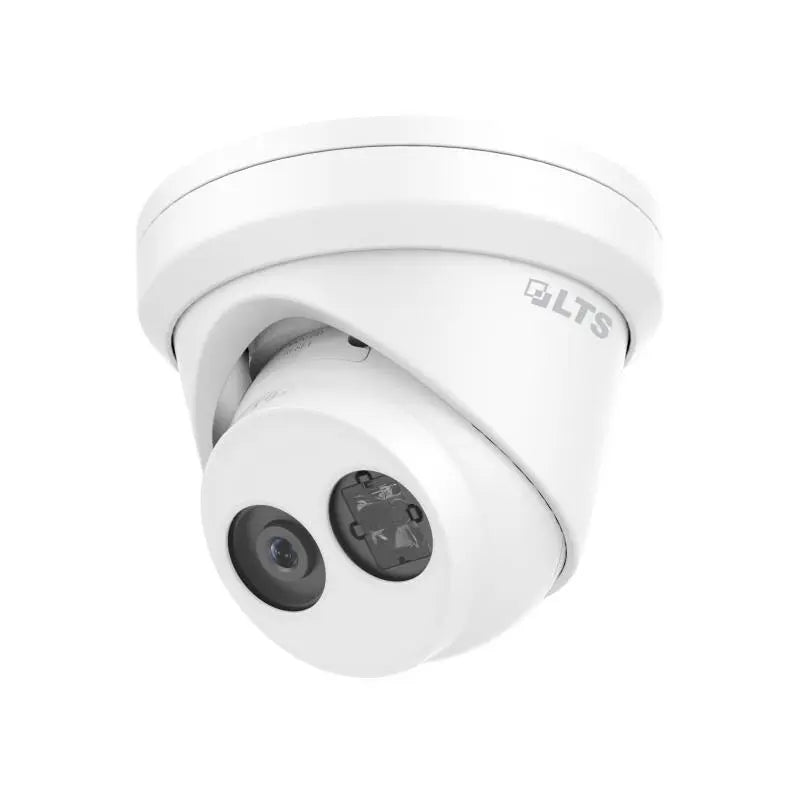

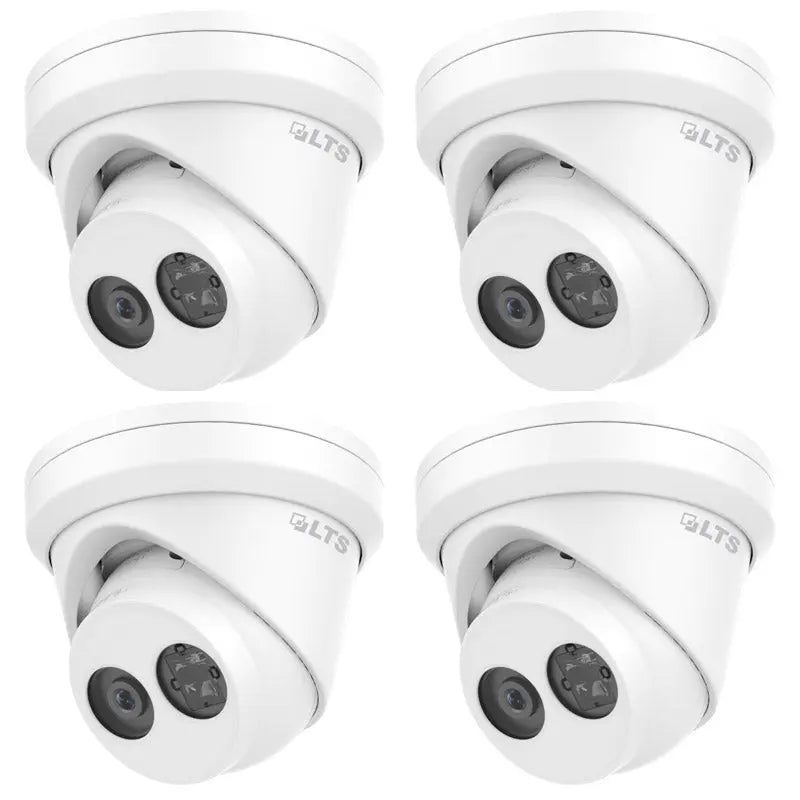

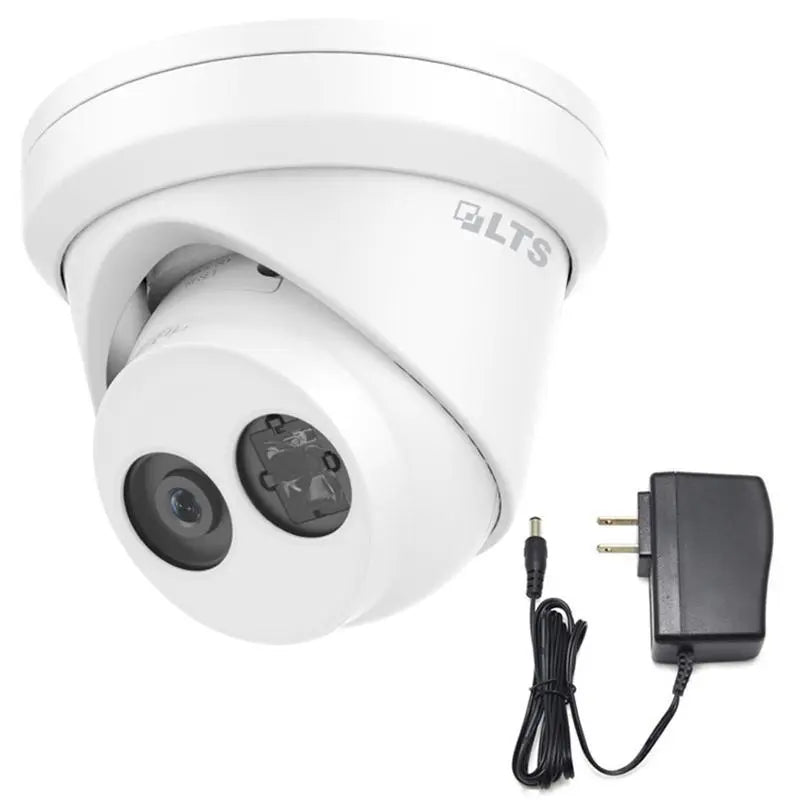

LTS-CMIP3342W-28M Platinum Network HD 4MP Wide Angle Turret IP Camera

Apologize!!! This product has been discontinued.

LTS-CMIP3342W-28M Platinum Network IP67 HD 4MP 2.8mm Wide Angle Turret IP Camera

4MP High Definition
Up to 2688x1520@30fps
2.8mm Fixed Lens
0.018 Lux @ F1.6
Matrix IR 2.0, IR Range up to 100 feet
H.265, H.265+, H.264, H.264+ Ready
True WDR 120dB
IP67
MicroSD Slot up to 128GB
DC 12V, PoE

CAMERA:
Image Sensor: 1/3" Progressive Scan CMOS
Min. Illumination: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Speed: 1/3 s to 1/10,000 s
Lens: 2.8mm, horizontal FOV:98°, vertical FOV: 55°, diagonal FOV: 114°
Lens Mount: M12
Day & Night: IR cut filter with auto switch
DNR: 3D DNR
Wide Dynamic Range: True WDR 120dB
Angle Adjustment: Pan:0° ~ 360°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360°
COMPRESSION STANDARD:
Video Compression:
Main stream:
H.265/ H.264
Sub stream: H.265/H.264/ MJPEG
Third stream: H.265/ H.264
H.264 / H.264+ Type: Main Profile / High Profile / Main Stream and Sub Stream Support
H.265 / H.265+ Type: Main Profile / Main stream and sub stream support
Video Bit Rate: 32 Kbps ~ 16 Mbps
Dual Stream: Support
IMAGE:
Max. Resolution:
2560×1440
Main Stream: 50Hz:25fps (2560×1440,2304×1296,1920×1080) 60Hz: 30fps (2560×1440,2304×1296,1920×1080)
Sub Stream: 50Hz:25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream: 50Hz:25fps (1280×720, 640×360, 352×288) 60Hz: 30fps (1280×720, 640×360, 352×240)
Behavioral Analysis: Line crossing detection, intrusion detection
NETWORK:
Network Storage:
Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger: Motion Detection, Tampering Alarm, Intrusion Detection, Line Crossing Detection, HDD Full, HDD Error, Network Disconnected, IP Address Conflicted
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General: One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter
Standard: ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
INTERFACE:
Communication Interface: 1 RJ45 10M/100M Ethernet port
Reset: Yes
GENERAL:
Working Temperature/Humidity:
-22 °F ~ 140 °F (-30 °C ~ 60 °C)/Humidity 95% or less (non-condensing)
Power Supply: DC12V ± 25%
Power Consumption: 12 VDC, 0.5A, Max. 6W
IR Range: Up to 100ft
Weather Proof Ratings: IP67
Dimensions: 5.01″ × 3.78″ (127.3 × 95.9 mm)
Weight: 1.3 lb. (610g)

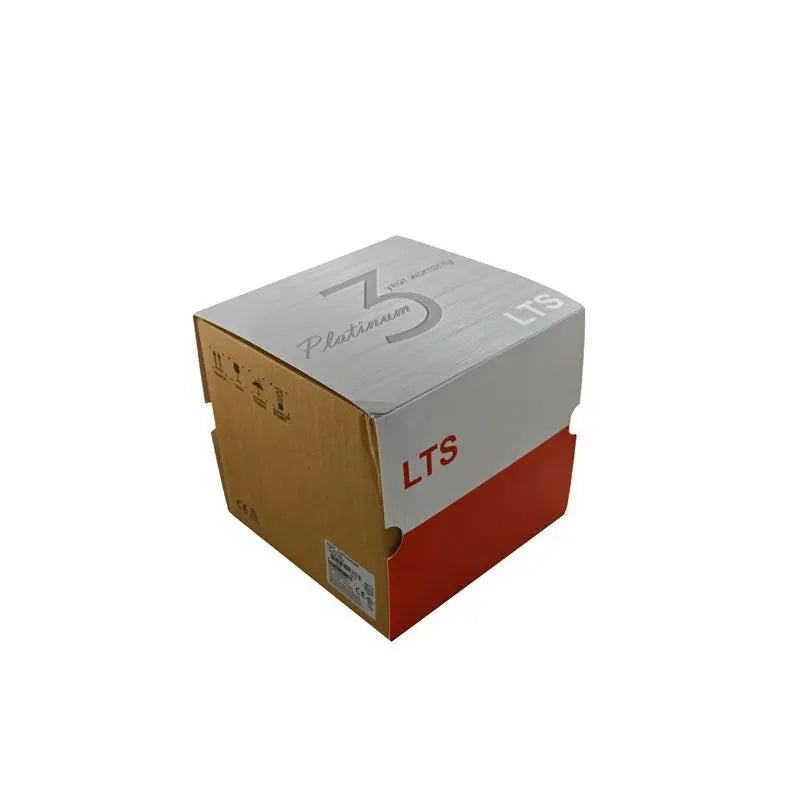

1x CMIP3342W-28M ea.
