LTS-CMIP7342W-28M Network Vandal HD 4MP 2.8mm Wide Angle Dome IP Cam

Apologize!!! This product has been discontinued.

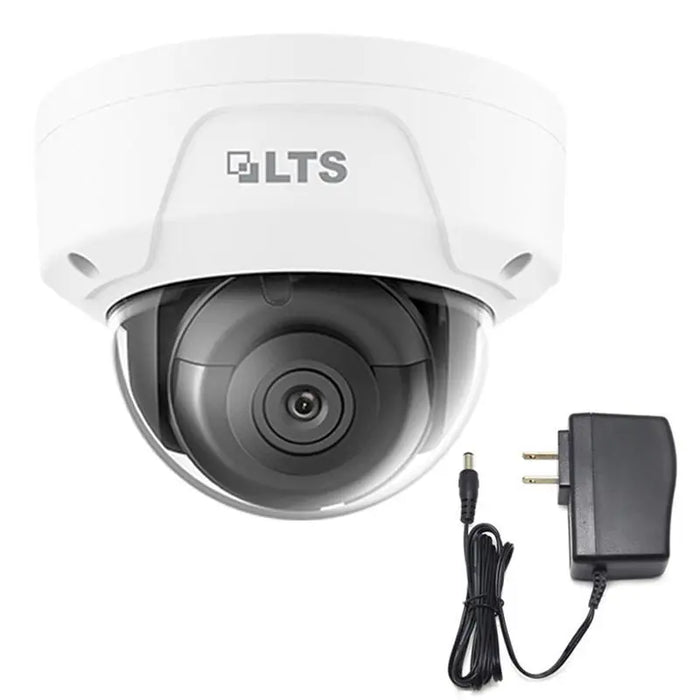

LTS-CMIP7342W-28M Network Vandal IP67 & IK10 HD 4MP 2.8mm Wide Angle Dome IP Cam

Brand:
LTS
MPN: CMIP7342W-28M
Condition: New

4MP High Definition
2560x1440@30fps
2.8mm Fixed Lens
0.018 Lux @ F1.6
Matrix IR 2.0, IR Range up to 100 feet
H.265, H.265+, H.264, H.264+ Ready
True WDR 120dB
IP67 & IK10
MicroSD Slot up to 128GB
DC 12V, PoE

CAMERA:
Image Sensor:
1/3" Progres s ive S can CMOS
Min. Illumination: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed: 1/3 s to 1/10,000 s
Lens: 2.8 mm: horizontal FOV:98°, vertical FOV: 55°, diagonal FOV: 114°
Lens Mount: M12
Day & Night: IR cut filter
DNR: 3D DNR
Wide Dynamic Range: 120dB
Angle Adjustment: Pan:0° ~ 360°, T ilt: 0° ~ 75°, Rotation: 0° ~ 360°
COMPRESSION STANDARD:
Video Compression:

Main stream: H.265+/H.265/H.264 Zip+/H.264
Sub stream: H.265+/H.265/H.264 Zip+/H.264/MJPEG
Third stream: H.265+/H.265/H.264 Zip+/H.264
H.264/H.264+ Type: Main/High Profile
H.265/H.265+ Type: Main Profile/Sub-stream support
Video Bit Rate: 32 Kbps ~ 16 Mbps
Dual Stream: Support
IMAGE:
Max. Resolution: 2560 × 1440
Main Stream 50Hz:25fps (2560×1440,2304×1296,1920×1080) 60Hz: 30fps (2560×1440,2304×1296,1920×1080)
Sub Stream 50Hz: 25fps (640 × 360, 352 × 288)60Hz: 30fps (640 × 360, 352 × 240)
Third Stream 50Hz: 25fps (1280×720, 640×360, 352×288)  60Hz: 30fps (1280×720, 640×360, 352×240)
Others: Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser and client software
Behavioral Analysis: Line crossing detection, intrusion detection
NETWORK:
Network Storage: Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger: Motion Detection, VideoTampering, Network Disconnected, IP Address Conflicted, Illegal Login, HDD Full, HDD error
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General: One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter
Standard: ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
INTERFACE:
Communication Interface:
1 RJ45 10M/100M self-adaptive Ethernet port
Reset: Built-in microSD/SDHC/SDXC slot, up to 128 GB
SVC: H.264 and H.265 encoding
GENERAL:
Working Temperature/Humidity:
-22 °F ~+140 °F(-30 °C ~ +60 °C ) Humidity 95% or less (non-condensing)
Power Supply: DC 12V ± 25%,PoE(802.3af)
Power Consumption: Max.6W
IR Range: Up to 100ft(30m)
Weather Proof Ratings: IP67
Impact Protection: IK10
Dimensions: Φ4.4″ × 3.2″ (Φ111 × 82.4 mm)
Weight: 1.3lbs (610g)
