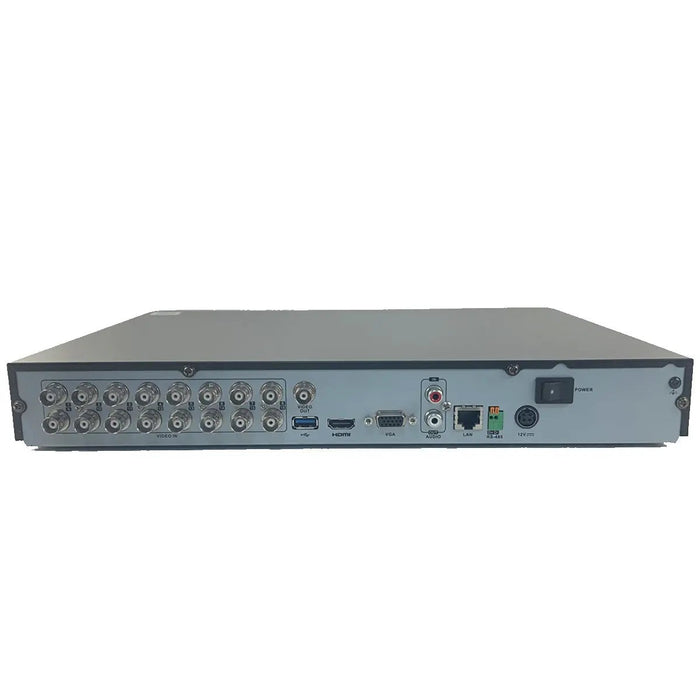

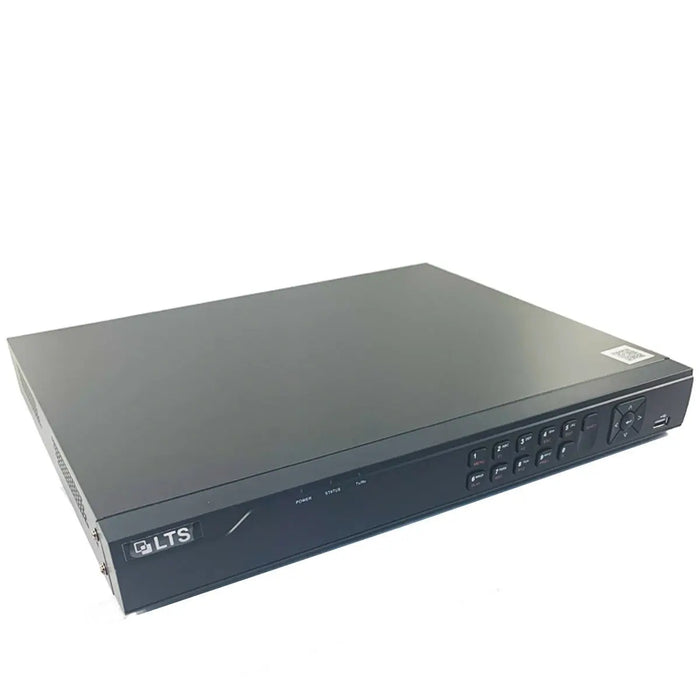

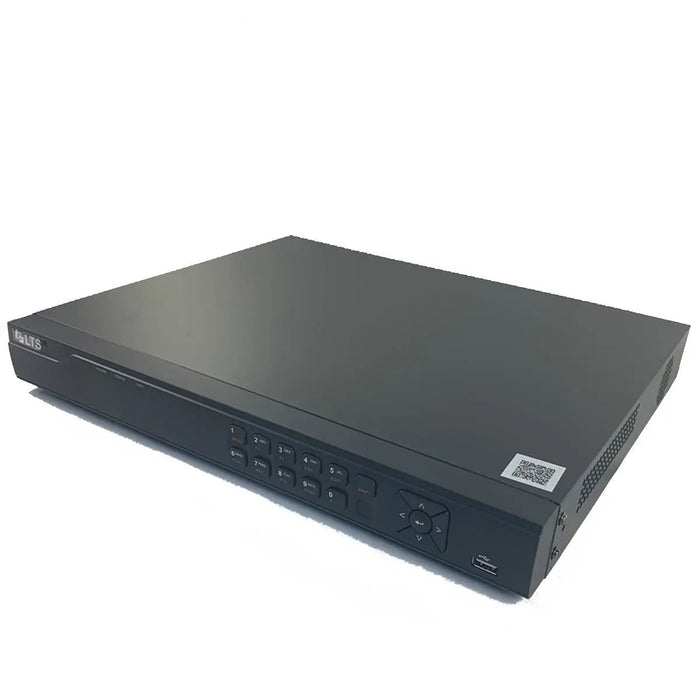

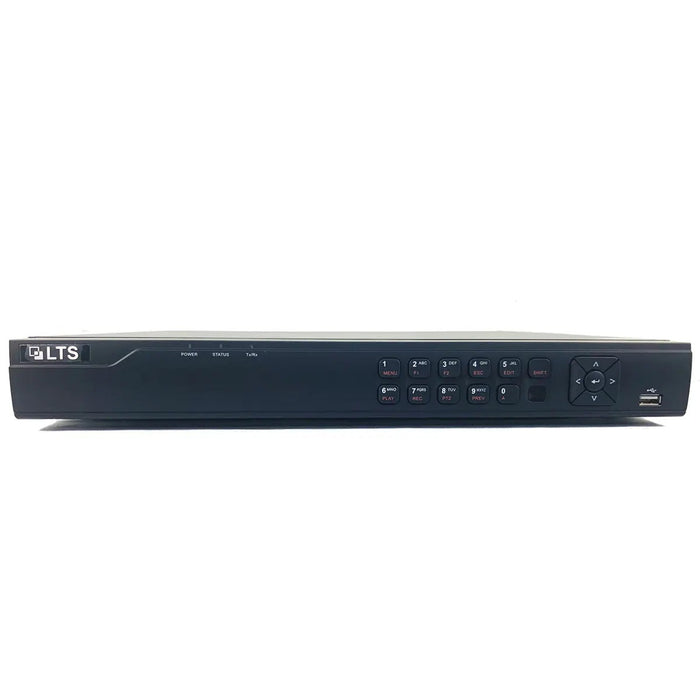

LTS LTD8316K-ET H.265 / H.265+ Platinum Professional 16 Channel HD-TVI DVR with built-in 4TB Hard Drive

Specifications

• Recorder Series: Platinum Series
• Recorder Channel: 16-Channel
• Recorder Case: 1U Case
• Recorder Technology: TVI DVR
• Video compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding resolution: When 1080p lite mode is not enabled:
• -4MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF When 1080p Lite mode is enabled:
• -5MP lite/4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
• Main Stream Frame Rate: When 1080p Lite mode not enabled
• For 4 MP stream access- 4MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
• For 1080p stream access- 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
• For 720p stream access- 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled:
• 5 MP lite/4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps
• (P)/30fps (N)
• Sub-stream Frame Rate: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
• Video bit rate: 32 Kbps to 6 Mbps
• Dual stream: Support
• Stream type: Video, Video & Audio
• Audio compression: G.711u
• Audio bit rate: 64 Kbps
• IP video input: 8-ch (up to 24-ch)
• Up to 6 MP resolution
• Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog video input: 16-ch
• BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDTVI input: 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
• *The 3 MP signal input is only available for channel 1/2 of LTD8308K-ET, and for channel 1/2/3/4 of LTD8316K-ET.
• AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
• HDCVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
• CVBS input: PAL/NTSC
• CVBS output: 1-ch, BNC (1.0 Vp-p, 75 Ω); PAL Resolution: 704 × 576; NTSC Resolution: 704 × 480
• VGA output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• HDMI output: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 ×1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×768/60Hz
• Audio input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio output: 1-ch, RCA (Linear, 1 KΩ)
• Two-way audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous playback: 16-ch
• Remote connection: 128
• Network protocol: TCP/IP, PPPoE, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Network interface: 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
• Auxiliary interface
• SATA: 2 SATA interfaces
• Capacity: Up to 10 TB capacity for each disk
• Serial interface: RS-485 (half-duplex)
• Front panel USB interface: 1 × USB 2.0
• Rear panel USB interface: 1 × USB 3.0
• Power supply: 12 VDC
• Consumption (without HDD): ≤ 25 W
• Working temperature: -10 °C to +55 °C (+14 °F to +131 °F)
• Working humidity: 10% to 90%
• Dimension (W × D × H): 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
• Weight (without HDD): ≤ 2 kg (4.4 lb)
