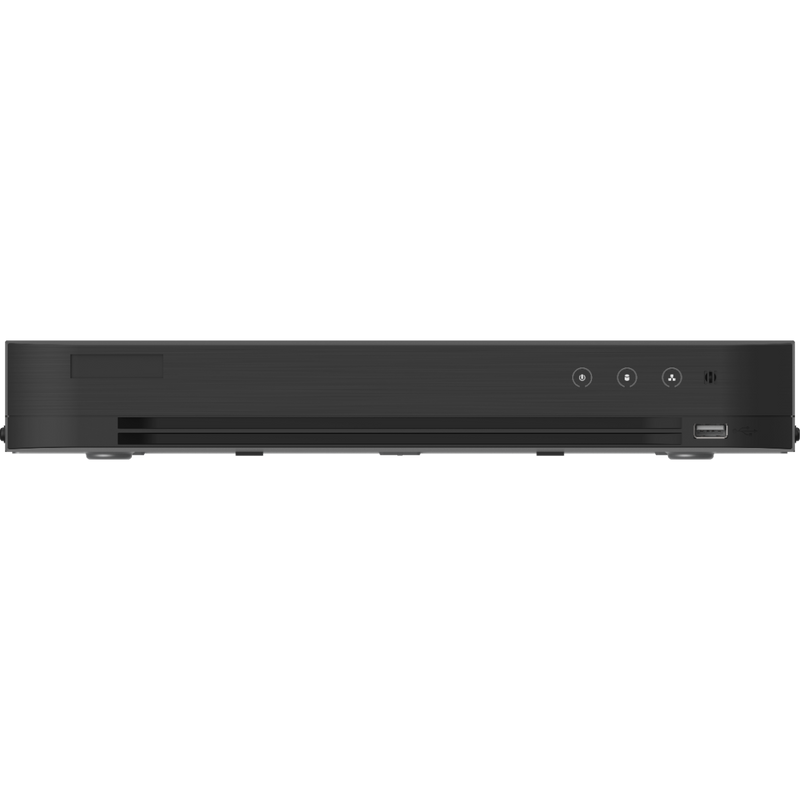

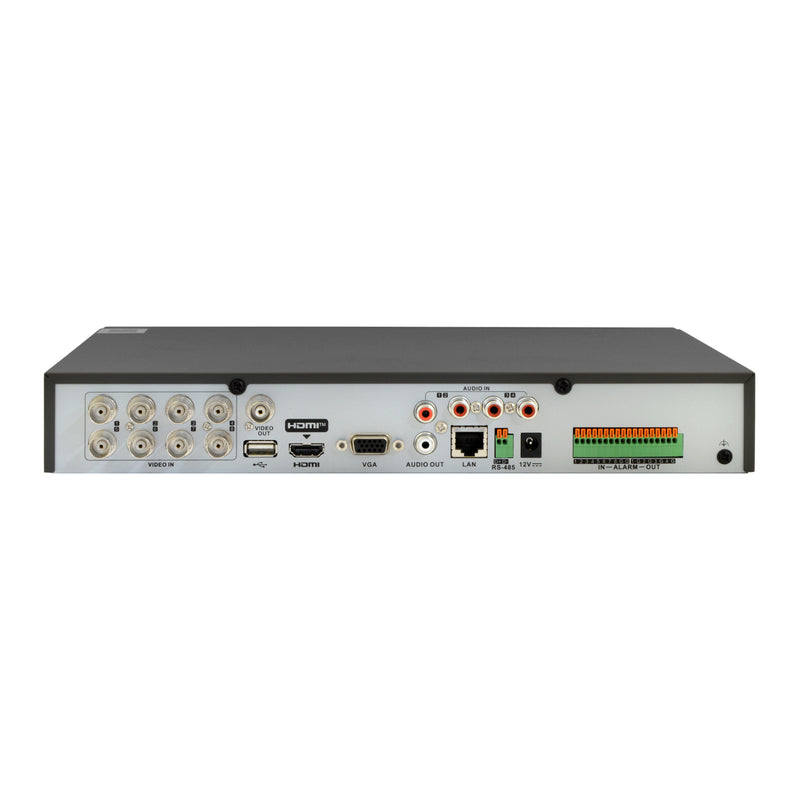

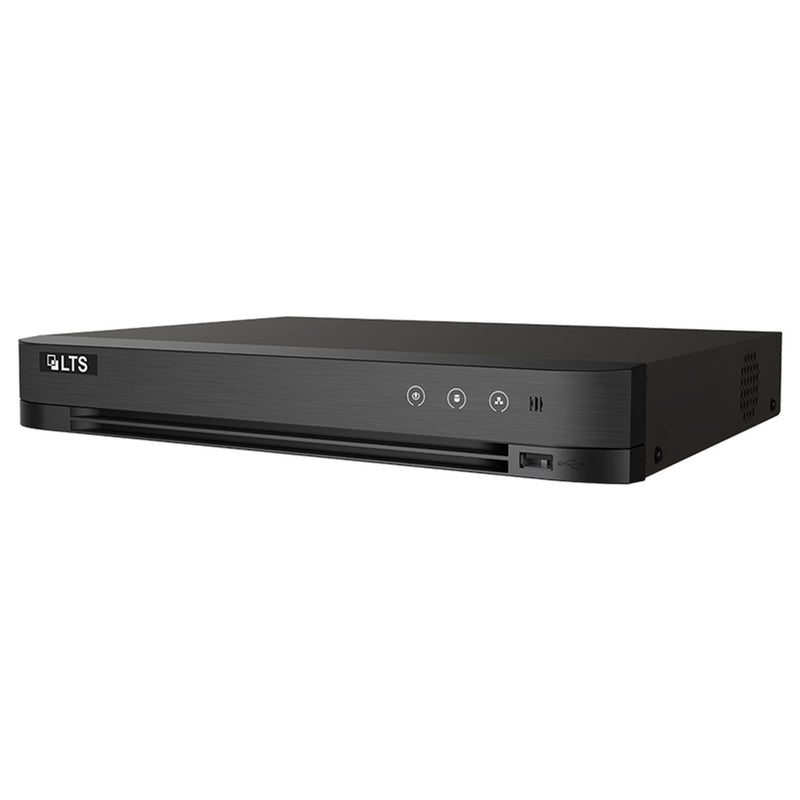

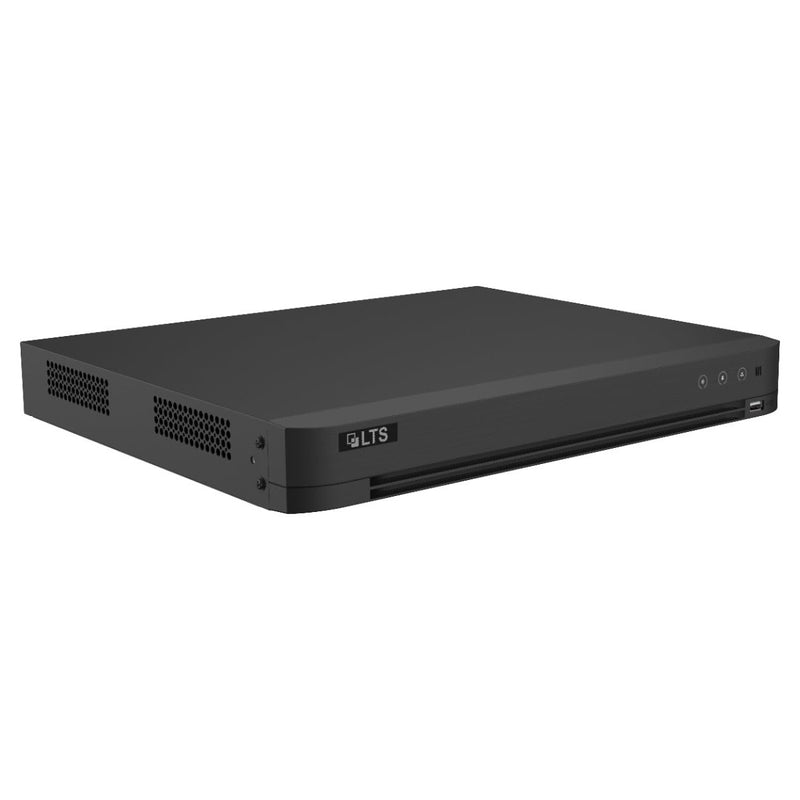

LTS LTD8308D-ETC 8-Channel H.265+ HD-TVI DVR with 2TB HDD Pre-Installed Storage

LTS LTD8308D-ETC 8-Channel H.265+ HD-TVI DVR with 2TB HDD Pre-Installed Storage
Disponibilidad:
Agotado
Agotado
$0.00 - $0.00
$0.00
$270.95
$270.95 - $270.95
$270.95

LTS LTD8308D-ETC 8-Channel H.265+ HD-TVI DVR with 2TB Pre-Installed Storage

Find out just how much a TVI DVR can do with this advanced recorder from LTS. You'll be happily surprised at the capabilities with this 8-channel HD-TVI 1U digital video recorder from the Platinum Series. Get multiple signals in multiple ports with motion detection, H.265 Pro+, face recognition, and much more, at an exciting price point.

  • 8 chs. + 2 IP or 4 IP (up to 6 MP)
  • 4 MP lite @ 15 fps
  • Supports 2 chs. Facial Recognition or 4 chs. advanced VCA functionality based on Deep Learning algorithm
  • Supports HD-TVI Two-Way Audio technology
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 3K / 5 MP Lite @ 12 fps
  • 5 input signal options (HD-TVI / AHD / CVI / CVBS / IP) (self-adaptive)
  • Up to 12 network cameras can be connected
  • Supports Motion Detection technology on all channels
  • with 2TB HDD Pre-Installed Storage

Features:

  • 8 Channel Video Recorder
  • No HDD Included
  • Compact Case H.265/H.265+
  • Support TVI/ AHD/ ANALOG/ CVI/ IP input (5 in 1)
  • 1st and 2nd channel support up to 3MP HD-TVI input
  • Support Live View, Storage, Playback up to 8 HD-TVI/ Analog Cameras + 1 IP Camera up to 4MP
  • Up to 1080P (1920*1080) HDMI Video Output
  • CVBS Output
  • 1x SATA slot, up to 6TB each HDD
  • 2x USB 2.0

Specifications:

Video / Audio Input

  • Video compression: H.264
  • HD-TVI video input: 8-channel
  • Video input interface: BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adaptive
  • IP input: 2ch(1080p@30fps)
  • Audio compression:  G.711u
  • Audio input: 1-ch, RCA (2.0 Vp-p, 1 kΩ)
  • Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1 kΩ)

Video / Audio Output

  • HDMI/VGA output    1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
  • Encoding resolution: Main stream: 1080P(non-real-time) / 720P / VGA / WD1 / 4CIF / CIF
  • Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA
  • Frame rate: Main stream: 1/16 fps ~ Real time frame rate
  • Sub-stream: 1/16 fps ~ Real time frame rate
  • Video bit rate: 32 Kbps-4 Mbps
  • Audio output: 1-ch, RCA (Linear, 1 kΩ)
  • Audio bit rate: 64 Kbps
  • Dual-stream: Support
  • Stream type: Video, Video & Audio
  • Synchronous playback: 8-ch
  • Playback resolution: 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF

Network

  • Remote connection: 128
  • Network protocols: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS

Hard Disk

  • SATA: 1 SATA interface
  • Capacity: Up to 4TB capacity for each disk

External Interface

  • Network interface: 1:10M / 100M self-adaptive Ethernet interface

General

  • Power supply: 12V DC
  • Power Consumption: ≤ 20 W
  • Working temperature: -10 °C~+55°C(14°F ~ 131 °F)
  • Working humidity: 10% ~ 90%
  • Chassis: 1U chassis
  • Dimension: 315 × 230 × 45 mm (12.4" x 9.1" x 1.8")
