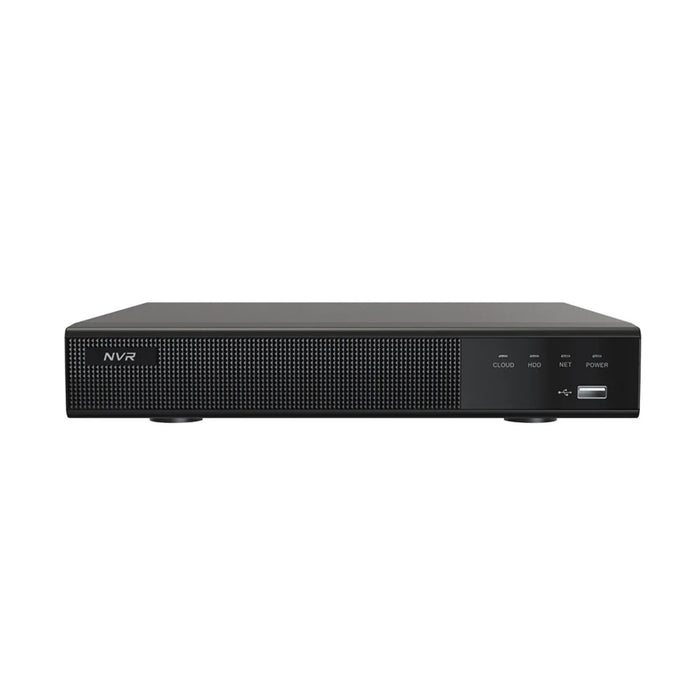

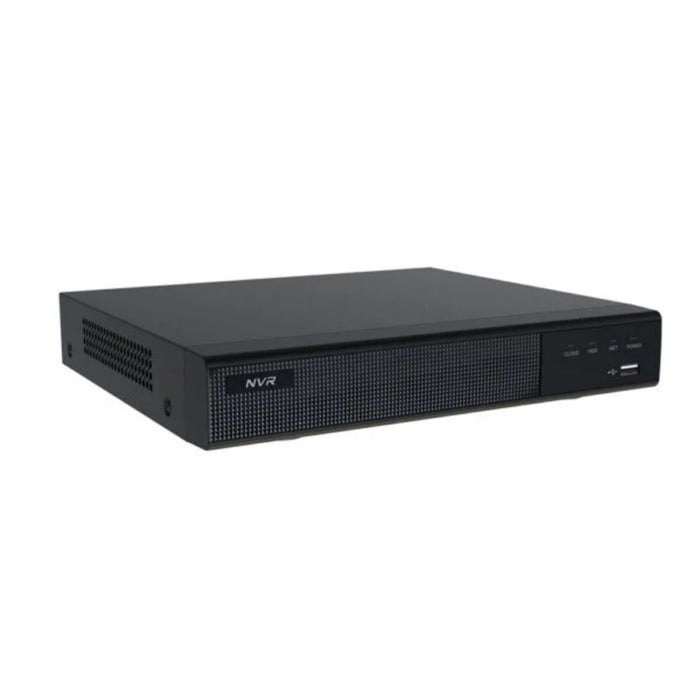

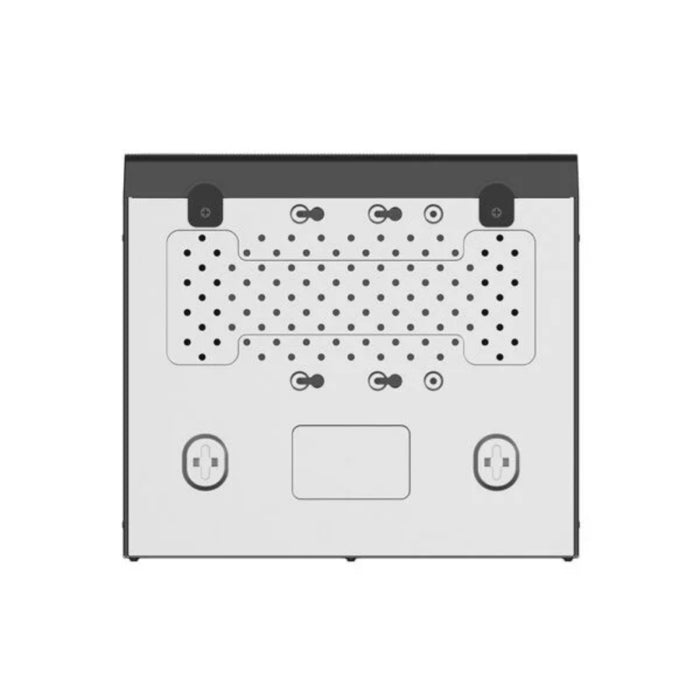

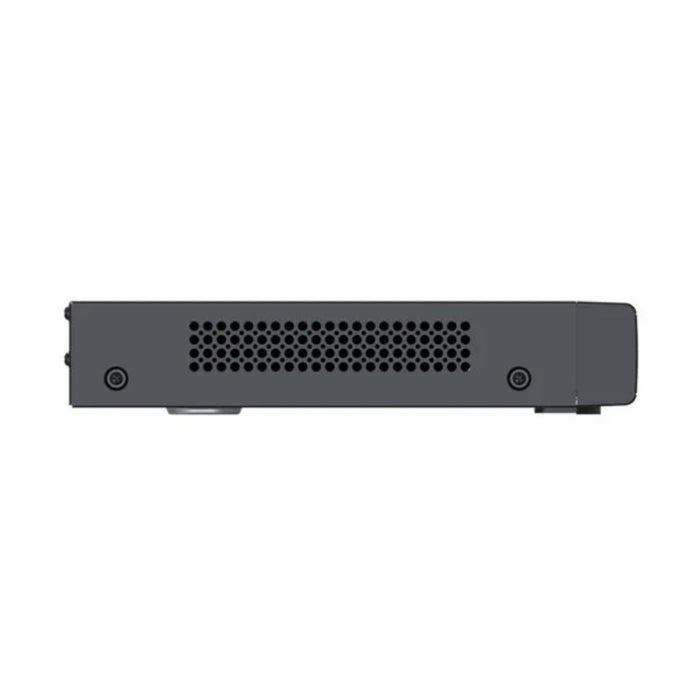

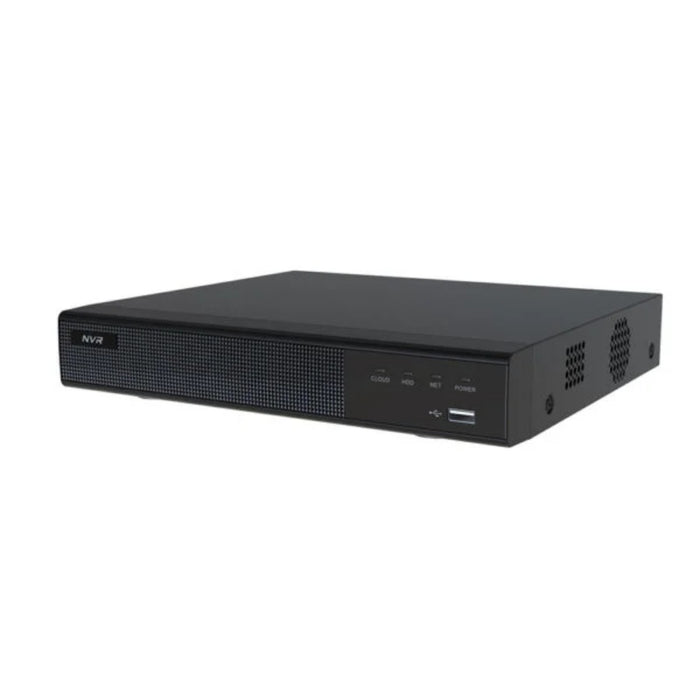

32-Channel 12MP NVR 16 PoE Ports 2X SATA Network Video Recorder with AI Management Function

Specifications

System

• Main Processor  -  Quad Cortex A53
• Operating System  -  Embedded LINUX

Video

• Input  -  32CH(12MP/8MP/6MP/5MP/4MP/3MP/1080p/1280×1024/960p/720p/D1/CIF)
• Output   - 1*HD,1*VGA

Audio

• Input  -  1 Port RCA, support 32CH IPC audio input
• Output   - 1 Port RCA(Linear, 1kΩ), HD output
• Audio Bit Rate  -  64kbps
• Audio Compression standard  -  G711U, G711A, AAC, MP2L2
• Intercom  -  support (two-way)

Alarm

• Sensor Input  -  4CH
• Output  -  1CH
• Motion Detection   - 32Channel, MD Zones: 396 (22 × 18)
• Trigger Events  -  Recording, Email, FTP, Snapshot and Screen Tips, Pop-up Window, Buzzer, Notify Surveillance Center, Alarm Output

Display

• HD Output1 -   4K(3840*2160)/2K(2560*1440)/1920*1080/1280*1024/1280*720/1024*768
• HD Output2   - N/A
• VGA  -  Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Display Split   - 36CH/25CH/17CH/16CH/13CH/10CH/9CH/8CH/6CH/4CH/2CH/1CH
• Digital Zoom  -  YES
• OSD  -  Camera Title, Time, Recording, Motion Detection, Event Alarm

Recording

• Video Compression    H265/H264/H265+/H264+
• Resolution    12MP(4000*3000),8MP(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P(1920×1080),960P(1280×960),720P(1280×720),D1 (720×576/720×480)
• Record Rate    PAL :12MP@32CHx25fps,8MP@32CHx25fps,5MP@32CH×25fpss,4MP@32CHx25fps,3MP@32CH×25fps,1080P@32CH×25fps, 960P@32CH×25fps,720P@32CH×25fps, D1@32CH×25fps
• NTSC: 12MP@32CHx30fps,8MP@32CHx30fps,5MP@32CH×30fps,4MP@32CH×30fps,3MP@32CH×30fps,1080P@32CH×30fps, 960P@32CH×30fps, 720P@32CH×30fps, D1@32CH×30fps
• Record Mode    Manual\Timer\Motion Detection\ Alarm\Smart Event

Playback & Backup

• Local Sync Playback  -  2CH 12MP@30fps,4CH 8MP@30fps,6CH 5MP@30fps,8CH 4MP@30fps, 16CH 1080P@30fps, 16CH 960P@30fps, 16CH 720P@30fps,16CH D1@30fps
• Decode Capability   - 1080P(1920×1080)@480fps
• Remote Sync Playback  -  YES
• Search Mode  -  ALL, Timing Video, Motion Detection, Alarm,Tag  search,Smart Event,Pictrue,Log
• Playback Functions  -  Play, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clip, audio
• Backup Mode  -  USB Device/Network

Network

• Interface  -  1xRJ45 10M/100/1000MAdaptive Ethernet Interface
• Incoming Bandwidth  -  320Mbps
• Outgoing Bandwidth  -  160Mbps
• Network Functions  -  IPv6,TCP/IP, HTTP,HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE
• Onvif  -  Profile S, Profile T
• Web Browser  -  Edge,IE8-11, Google Chrome , Firefox ,Safari
• CMS Software  -  Support  Windows 7/ Windows 8/Windows 10/Windows 11/MAC OS
• Cloud Support  -  Yes
• Smart Phone -   iPhone,  Android
• POE  -  16 x Independent 100Mbps POE Network Interfaces(Output power AF mode 15W per port), 45/78 line order, Total Power Output≤ 200W,  Support Plug and Play, Support network cable extended mode Max. 200M
• WIFI  -  N/A

Storage

• Interface Type  -  2 SATA Hard Disk Interface (3.5″ SATA)
• Capacity -   Up to 10 TB capacity for each HDD
• eSATA  -  N/A

General

• Language  UI -   Simplified Chinese, Traditional Chinese, English, Polski, Czech, Arabic, German, French, Portuguese, Spanish, Italian, Hungarian, Korean, Dutch, Greek, Janpanese, Ukrainian, Kazakh
• USB Interface -   Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
• RS485  -  N/A
• Power consumption  -  100-240VAC , 50/60Hz   ≤15W(Without Hard Disk and POE)
• Working Environment  -  -10℃～50℃, 10%～90%(humidity)
• Product Dimension(W×D×H) - 380 x 316 x 51mm
• Net Weight  -  2.58kg(without HDD)
• Gross Weight  -  3.48≤ kg(without HDD)

Docs/Instruction Links

• NR-5232N-P16
• Value NVR User Manual
