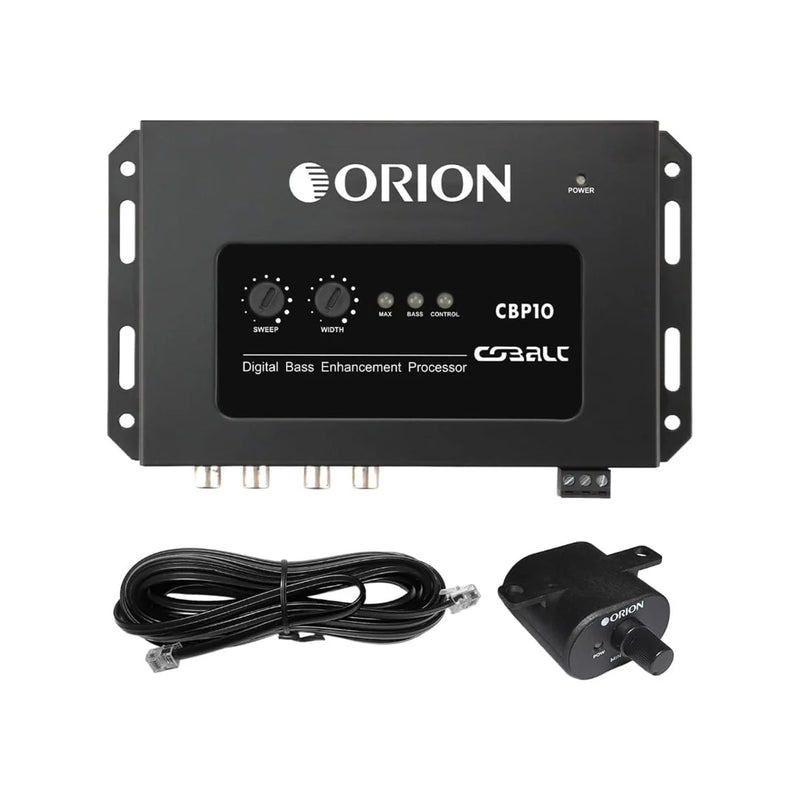

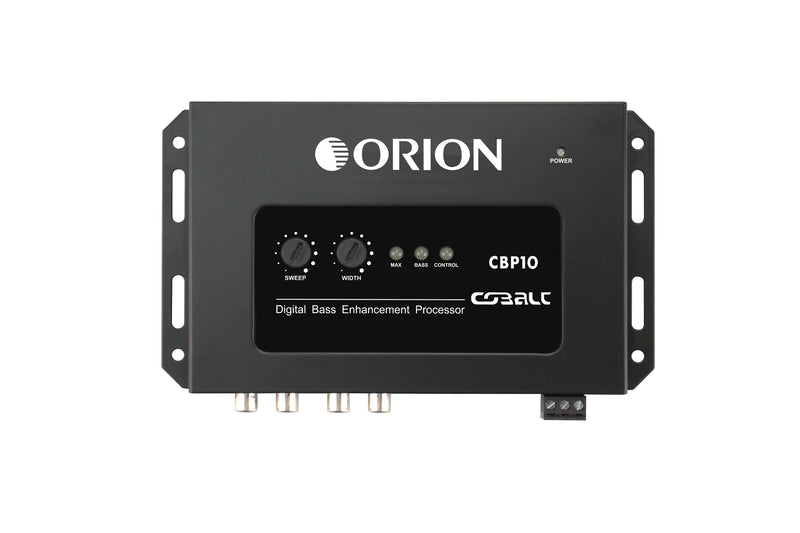

Orion CBP10 Digital Bass Enhancement Processor with Bass Restoration & 10V Output
Upgrade your car audio system with the CBP10 Digital Bass Enhancement Processor. It restores and enhances low-frequency performance for stronger, deeper bass.
Many factory and compressed audio sources reduce bass output. As a result, your subwoofer can lose impact. The CBP10 processes the signal to recover lost bass and restore the full depth of your music.
Precision Bass Tuning
The CBP10 gives you full control over your bass response. Therefore, you can fine-tune your system to match your setup.
You can adjust:
Because of this, you can choose deep, rolling bass or tight, punchy lows.
High-Output Performance
The processor includes selectable output levels (2.5V, 5V, 7.5V, 10V). As a result, it works with a wide range of amplifiers.
Moreover, it delivers low distortion (<0.02% THD) and high signal clarity (>110dB S/N). Your audio stays clean and powerful, even at higher volumes.
Flexible System Integration
The CBP10 is built for easy installation and flexible setup. It supports balanced and unbalanced inputs.
In addition, it includes ground isolation settings and RCA input/output connections. Therefore, it integrates easily with both factory and aftermarket systems.
Built for Better Sound
Whether you upgrade a stock system or optimize a high-power setup, the CBP10 delivers reliable performance.
-
Digital Bass Enhancement Processor: Restores low-frequency information lost in compressed or factory audio signals, delivering deeper, tighter, and more impactful bass.
-
Sweep Frequency Control: Adjusts the center frequency of the bass enhancement to target the exact bass range you want to restore or boost.
-
Width Bandwidth Control: Allows precise adjustment of the bass processing range for either wide low-frequency enhancement or tighter, more focused bass response.
-
Selectable Output Voltage: Choose between 2.5V, 5V, 7.5V, or 10V output levels to match your amplifier's input sensitivity and system configuration.
-
High Signal-to-Noise Performance: Provides a clean audio signal with a signal-to-noise ratio greater than 110dB for minimal background noise.
-
Ultra-Low Distortion Processing: Maintains excellent audio clarity with less than 0.02% total harmonic distortion at 2V output.
-

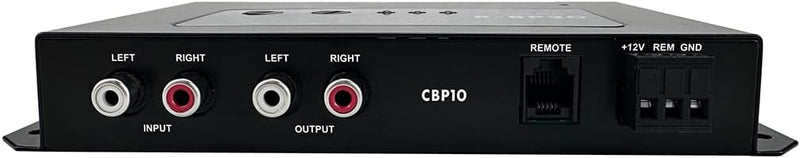

Balanced / Unbalanced Input Options: Allows compatibility with both aftermarket head units and factory audio systems.
-
Ground Isolation Control: Helps eliminate alternator whine and system noise using selectable grounding modes.
-

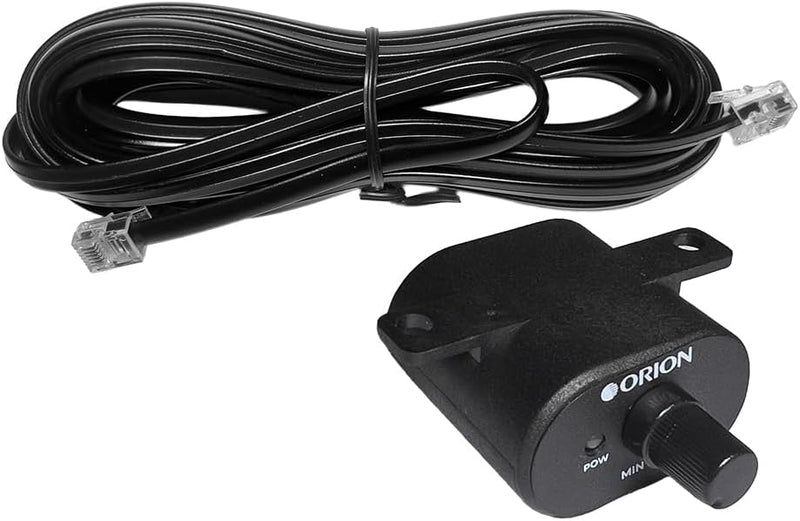

Remote Bass Control Support: Includes a remote port that allows real-time bass adjustment directly from the driver’s seat.
