ORION HCCA5000.1DV2 HCCA Competition Class D Monoblock Amplifier 10000 Watts Max

Sorry, this product has been discontinued.

ORION HCCA5000.1DV2 HCCA Competition Class D Monoblock Amplifier 10000 Watts Max

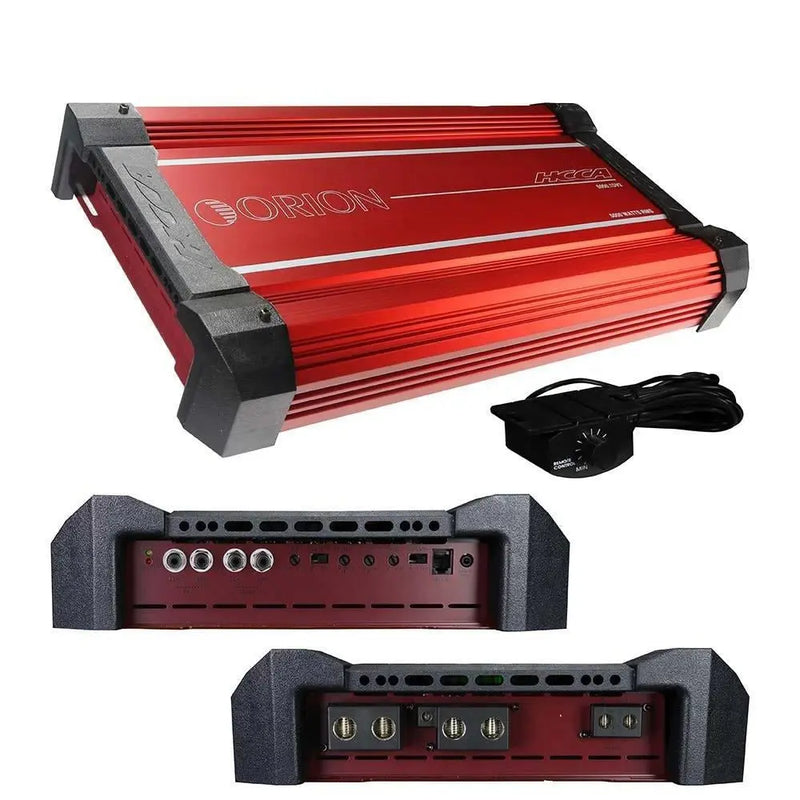

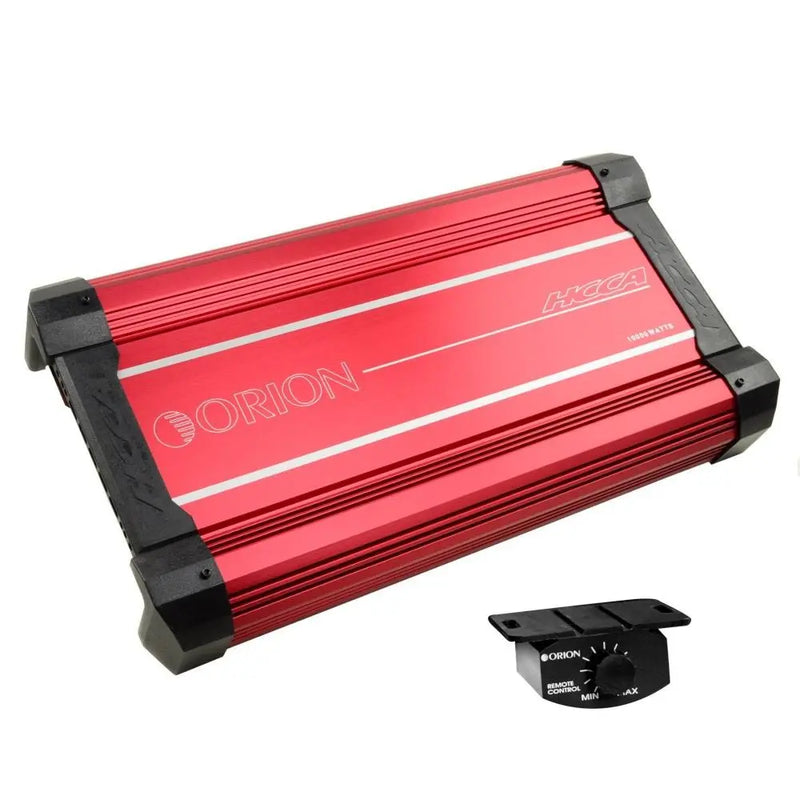

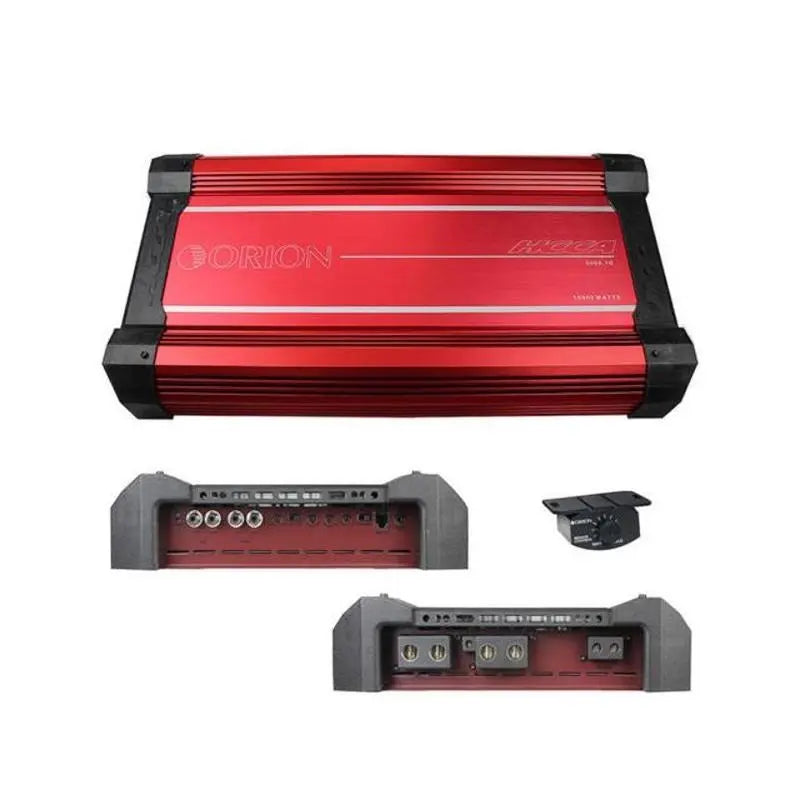

This is Orion's new model of the HCCA5000.1D Monoblock amplifier. This is part of their Competition series. This is a beast of a machine and made for serious audio competitors and enthusiasts. This Mono Channel amplifier is designed and crafted with the best components on the market. Built in a heavy duty rugged die-cast aluminum heatsink with great internal components. This amplifier is sure to get the job done and includes a bass knob.

RMS Power @ 4 Ohms MONO @ 0.5% THD 2300 Watts
RMS Power @ 2 Ohms MONO @ 0.5% THD 3500 Watts
RMS Power @ 1 Ohms MONO @ 0.5% THD 5000 Watts

12dB/Octave Low-Pass Filter
Frequency Response: 20Hz to 250Hz
Low Pass Crossover: 40Hz~300Hz
Signal to Noise Ratio: >65dB
THD at 1 Watt, 4 Ohm: <0.5

All MOSFET Power Supply and Output Stage
Electronic Crossover Network
Bass Boost Circuit
Remote Gain Control
Low Pass Filter Control
Power and Protection LED Indicators
Phase Control 0~180 degree
Soft Turn-On / Turn-Off
Balanced Input (CMRR)
Heavy Gauge Direct-Wire High Current Power and Speaker Terminals

Length (in/cm): 22.0" / 56.0
Height (in/cm): 3.0" / 7.7
Depth (in/cm): 11.8" / 30.2

Power Output: 2300 Watts RMS x 1 at 4 Ohms and < 1% THD+N
Signal to Noise Ratio: >70 dBA (reference 1 Watt into 4 Ohms
Additional Power: 5000 Watts RMS x 1 at 1 ohm and < 1% THD+N

Amplifier Section
RMSWATIS@   4OHMMONO     @ 0.5%THD+N    2150W
RMSWATIS@   2OHMMONO     @ 0.5%THD+N    3740W
RMSWATIS@   1OHMMONO     @ 0.5%THD+N    5000W

Amplifier  Efficiency: > 88%
SignaltoNoise ratioatratedoutput powerand lowestimpedance: > 90d8
Remote Gain  Function: Yes
Distortion  at Rated Power: 0.5% THD+N
Frequency Response: 15 Hz to 250Hz +/- 2.5  dB
Linear  Bandwidth: 15  Hz to 250Hz +/-  3 dB
Damping  Factor: 200
Input Sensitivity(rms): 200mV to 8V
Supply Voltage  Range: 9 to 16V
Protection: thermal, DCoffset, short protection, undervoltage, over-voltage

Power: AWG "O"  X 2PCS
Remote: AWG  10
Ground: AWG "O"  X 2PCS
Speaker: AWG  4

Input  Impedance: 24kΩ
Balanced input  (CMRR): Yes
Di mensions(inches): 19.7X11.7X2.8

Crossover  Section
Low Pass Crossover: Continuously  variable  (40-300Hz)
Phase  shift  control: 0◦ to 180◦
Bass  Boost: 0·18dB  variable
Infrasonic(sub  sonic) Filter: Selectable  On/Off  Octave 12dB at 25Hz
