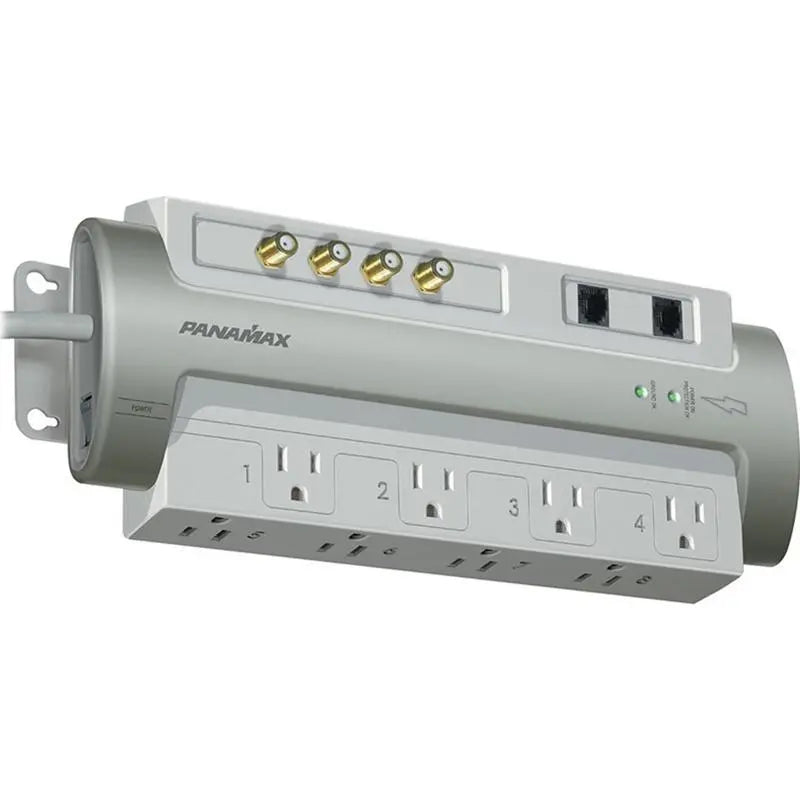

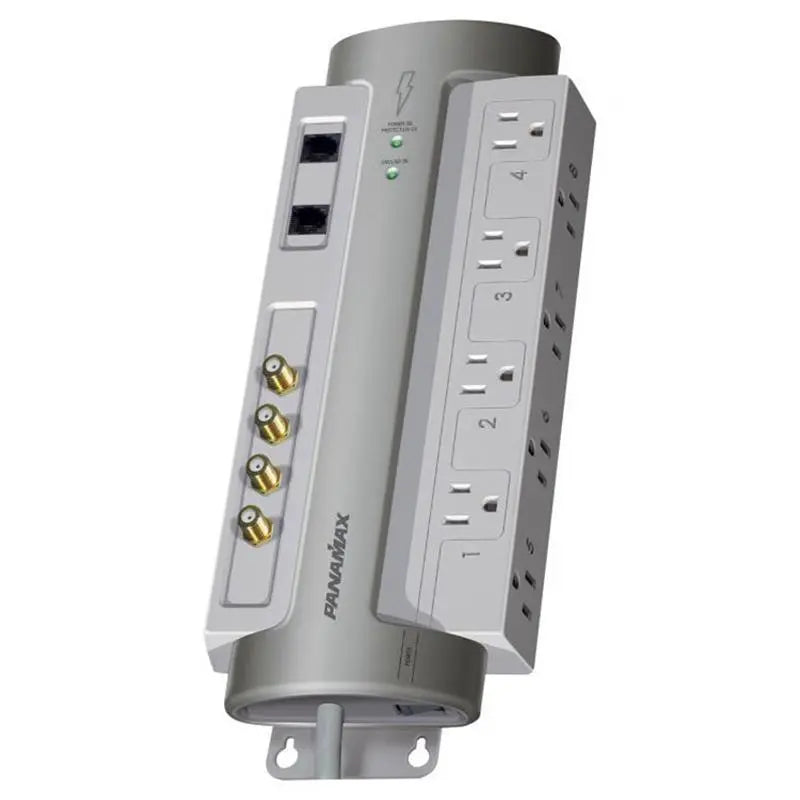

Panamax PM8-AV 8 Outlet Home Theater Power Management Surge Protection

Panamax PM8-AV Home Theater Power Management 8 AC Tel Cable Sat Surge Protection

Brand: Panamax
MPN: PM8-AV
Condition: New

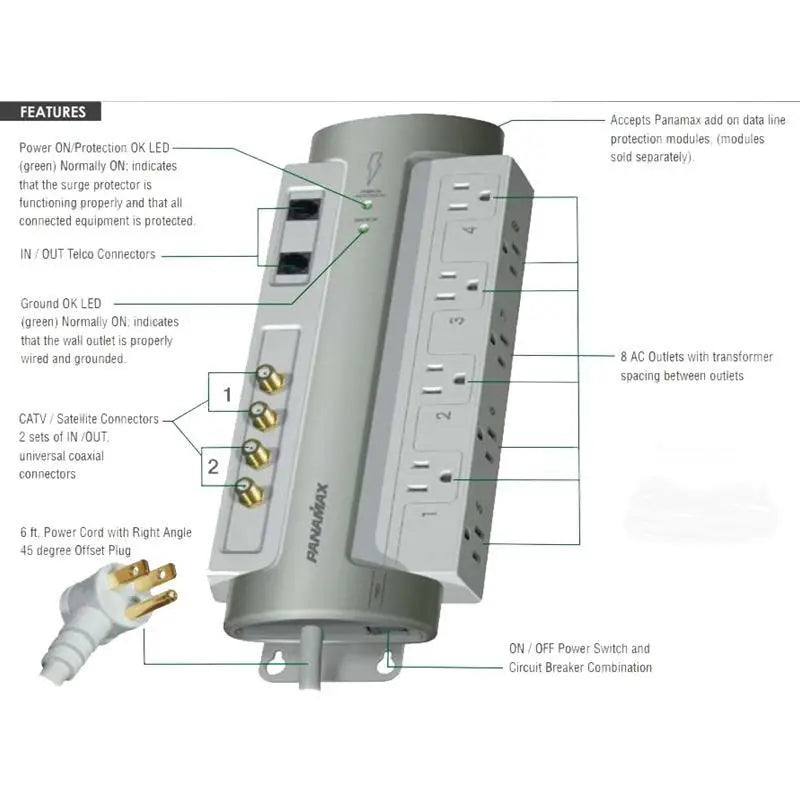

-Protects equipment from electrical surges that travel over cable, satellite, and antenna lines.
-Protects equipment from electrical surges that travel over telephone lines.
-Eight (8) filtered and surge protected outlets.
-Exclusive Protect or Disconnect™ circuitry. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.
-Hi-Def Designed to work with your High Definition system.

Family: Floor Models
Line Voltage: 120 (Volts)
Number of Outlets: 8
Outlet Descriptions: All 8 outlets filtered and surge protected
Control: On/Off control to all outlets through power switch.
Compliance: UL 1449 3rd Edition, 3000A
AC Power Cord: 6 ft. captive cord
Dimensions: 12" L x 5" W x 1.75" H (12.5" L Including brackets)
Weight: 3.5 lbs
AC Protection TechnologyProtect or Disconnect L-N, L-G, N-G Protection Modes Thermal Fusing
Maximum Current Rating: 15 (Amps)
Initial Clamping Level: 200V Peak
Filtration Technology: RFI/EMI Filtration
Filtration Rating: 45dB @ 100kHz - 1 MHz
Signal Line Protection: 1 Tel, 2 Cable/Satellite
Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 500V
Thermal Fusing: Yes
Single Pulse Energy Dissipation: 1125 Joules
Response Time: < 1 ns
Peak Impulse Current: 52,000 Amps

Telco Protection
Wires Protected: 1 Line (3, 4)
Suppression Modes: Metallic & Longitudinal
Fuseless / Auto-reseting: Yes
Connectors: RJ-11
Clamping Level: 260V
Capacitance: 30pf (approx.)

Universal Coaxial Protection
Shielded: Yes
Insertion Loss: < 0.5 dB
Frequency Range: OMHz - 2.2 GHz
Connections: Female “F", Gold Plated
Clamping Level: 75V
Bidirectional: Yes
