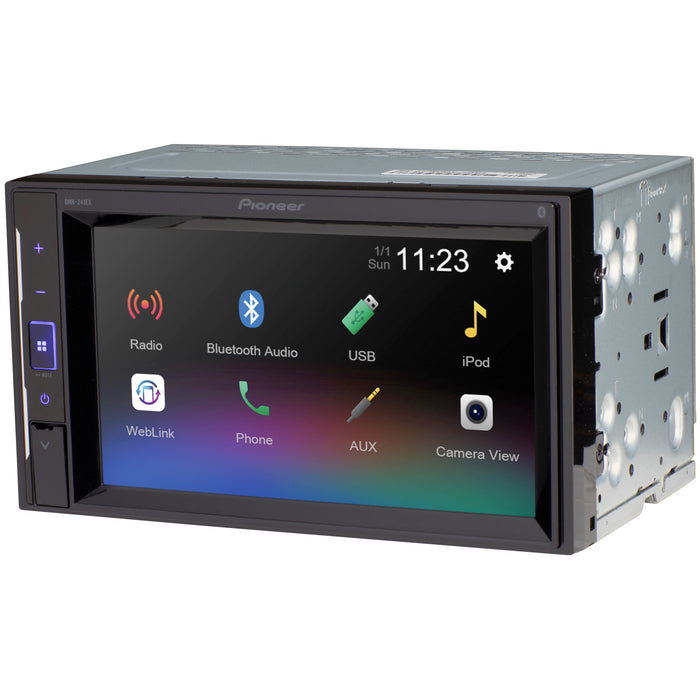

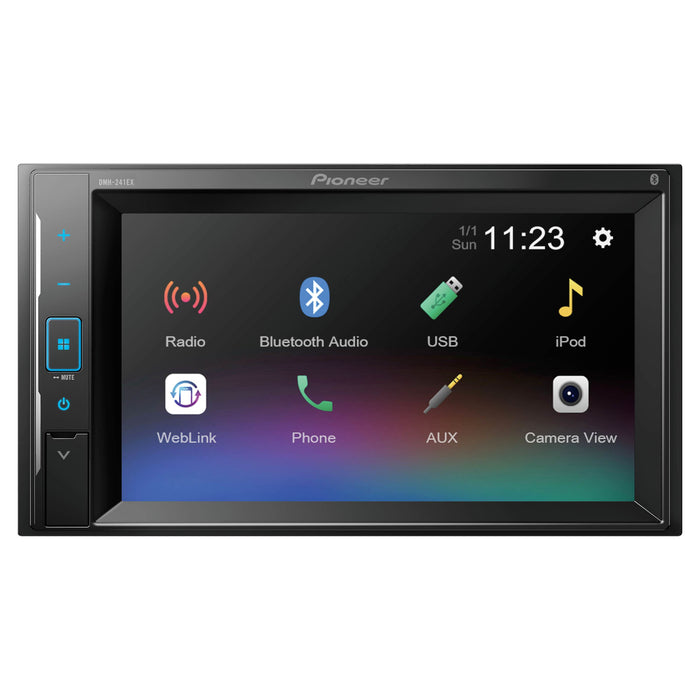

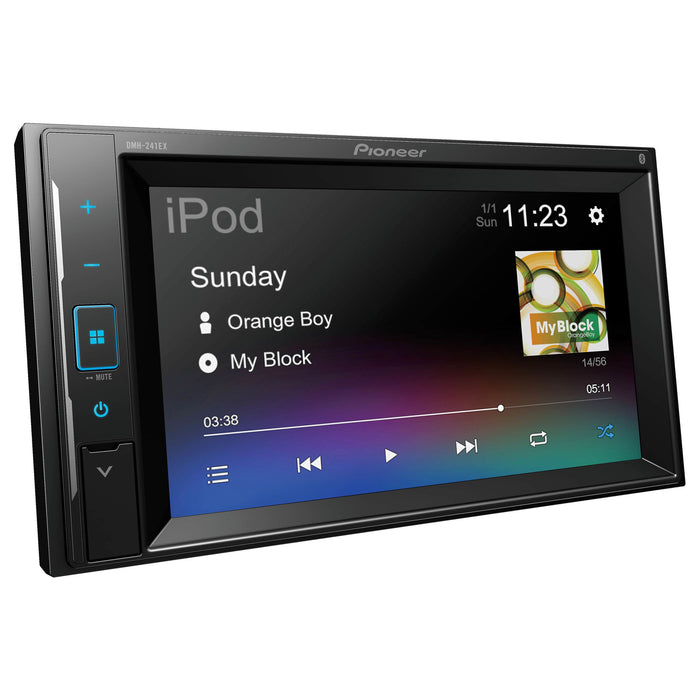

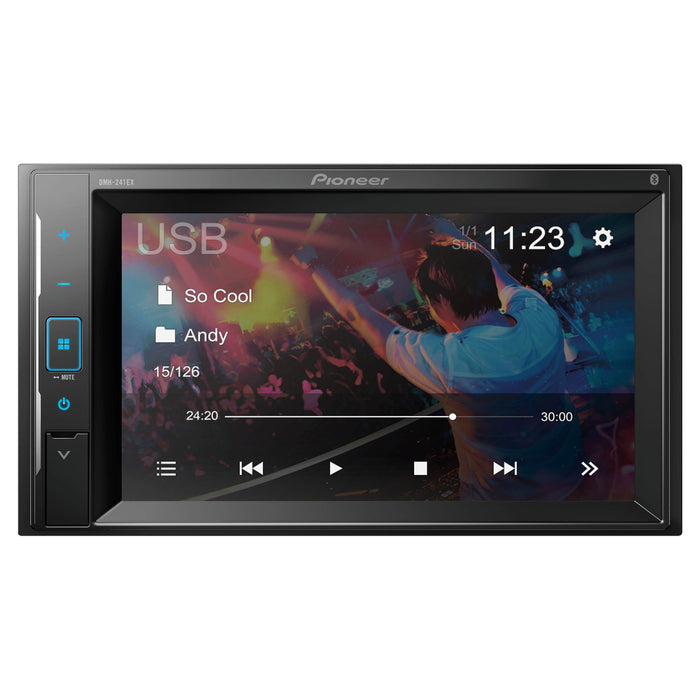

Pioneer DMH-241EX 6.2" Touchscreen Multimedia Receiver with Bluetooth

Pioneer DMH-241EX 6.2" Touchscreen Multimedia Receiver with Bluetooth
Disponibilidad:
en stock, listo para ser enviado
$250.00 - $250.00
$250.00
$250.00 - $250.00
$250.00

Pioneer DMH-241EX 6.2" Resistive Touchscreen Multimedia Receiver with Bluetooth

The DMH-241EX is a 6.2" resistive touchscreen digital media receiver designed to improve in-vehicle entertainment and connectivity with your smartphone. Enjoy features such as built-in Bluetooth for hands-free calling and audio streaming. Audio/video playback from USB. Safety features such as backup camera ready and much more.

Vozsis with Amazon Alexa
Pioneer's smartphone application, available for both iOS and Android OS devices allows Amazon Alexa capability through the Weblink-enabled receiver.

Hands free Bluetooth
Connect your compatible iOS or Android smartphone with NEX for a truly connected experience, bringing many of your favorite apps right into the dashboard and letting you communicate using advanced high-quality Bluetooth connectivity.

Back up camera input (1-camera)
Back up safely in any crowded parking area. Install a rear-view camera to use the receiver’s built-in parking guides for easy parking, with adjustable parking lines and full screen image for ease of use.

Customize your colors
Select from among five colors (blue/red/amber/green/violet) for the display and 112 different colors to match unit illumination to your vehicle's interior lighting. Also choose from several background images to suit your mood.

FLAC
Pioneer's NEX in-dash receivers were the first in the industry to offer playback of files encoded as high-res FLAC up to 192kHz/24 bit and provide playback output at CD quality. With Pioneer, your high-res FLAC is no longer confined to your home hi-fi system - put your music on the move.

Specifications:

STANDARDS

  • CTA-2006: Yes

PERFORMANCE

  • Continuous Power Output: 22 W x 4-Channel
  • Load Impedance Allowance: 4 Ohm (4 Ohm to 8 Ohm Allowable)
  • Max Power Output: 50 W x 4-ch 4 ohm
  • RCA Preamp Outputs: 5-Channel
  • RCA Pre-out: 2V
  • RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohm

DISPLAY

  • Back Light: LED
  • Brightness Control: Yes
  • Color Customization: 3 Preset Background Images ,Fixed Color - Blue
  • Device (Non-DIN/Modular Unit): 2-DIN
  • Dimmer: Automatic with vehicle illumination, Manual
  • Display Off Mode: Yes
  • Monitor Mechanism: Fixed
  • Resolution: WVGA (800 x 480)
  • Screen Size/Aspect Ratio: 6.2"/16:9
  • Touch Screen: Resistive

BLUETOOTH

  • Advanced Audio Distribution Profile (A2DP): Yes
  • AVRCP: 1.6
  • Built-in Bluetooth: Yes
  • Hands Free Version: 1.6
  • Hands-Free: Yes
  • Microphone Included: Included
  • Phone Registration: 5-phone
  • Secure Simple Pairing (SSP): Yes
  • Serial Port Profile (SPP): Yes

TUNER

  • Best Station Memory: Yes
  • Local Seek tuning: Yes
  • Presets: 18 FM, 6 AMy radio station name
  • PS (Preset Scan): Hide or displa
  • RDS: Yes

INTEGRATION

  • Amazon Alexa: Paired with Pioneer Vozsis
  • Mobile Operating System: Android / Apple iOS
  • Pandora: Bluetooth Audio Source
  • Pioneer App Compatibility: Vozsis Android, Vozsis iPhone
  • Siri Eyes Free (VR) (Internet Required): iPhone Only
  • Spotify: Bluetooth Audio Source
  • Voice Control: Yes
  • Weblink: 2.0
  • WiFi: Tethering, WiFi Hotspot

DIGITAL MEDIA PLAYBACK

  • Audio Playback via USB: MP3 Audio Playback / WMA Audio Playback / AAC Audio Playback / FLAC Audio Playback (Hi-Res) / WAV Audio Playback (Hi-Res)
  • Audio Video Playback via USB: .avi / .mpg/mpeg / .mp4 / .mkv / .mov / .flv / .m4v / .ts/.m2ts/.mts / H.263 / H.264
  • Image Display via USB: BMP / JPEG / PNG

AUDIO

  • Built-in Amplifier: MOSFET 50 W x 4
  • Crossover Standard Mode: HPF/LPF
  • Customizable Graphic Equalizer: 13 Band
  • DA Converter: 24 Bit
  • Digital Signal Processor: Built In
  • Easy EQ (EEQ) Preset Equalizer: Yes
  • Fade: Yes
  • Loudness: High/Mid/Low/Off
  • Speaker Output: 4-Channel
  • Subwoofer Control: Yes

EXPANDABILITY

  • RCA Video Output: Yes
  • USB: Single Rear Type-A (5V, 1.5 A)
  • USB Direct Control for iPhone: 5s and newer

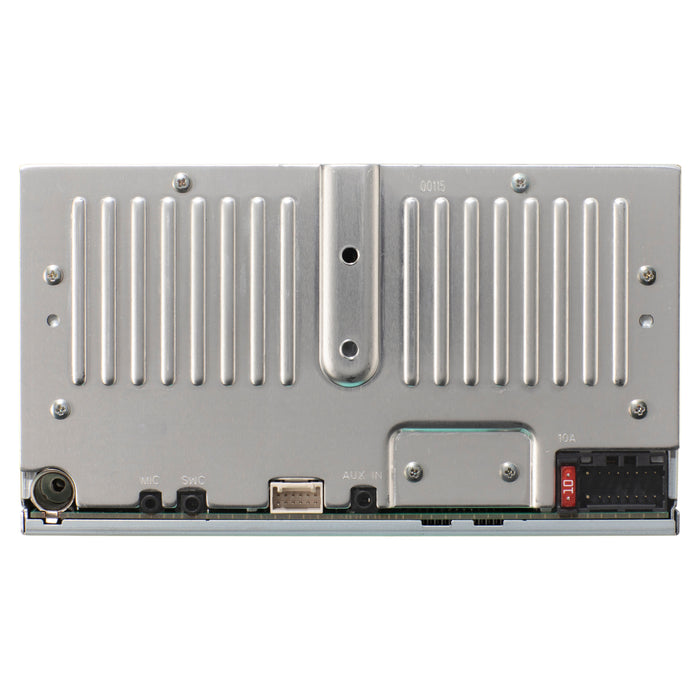

INPUTS
Input 1: Backup Camera Dedicated
Input 2: AUX (Minijack)

GENERAL
Detachable Face Security: Fixed
Multi-Language Display: English, French, Spanish Portuguese, Chinese (Simplified)
Music Browser: USB
Remote Control: Included
Steering Wheel Control Ready (Adapter Sold Separately): Yes

What's In The Box

  • Digital media receiver w/ fixed 6.2" touchscreen monitor (10A fuse)

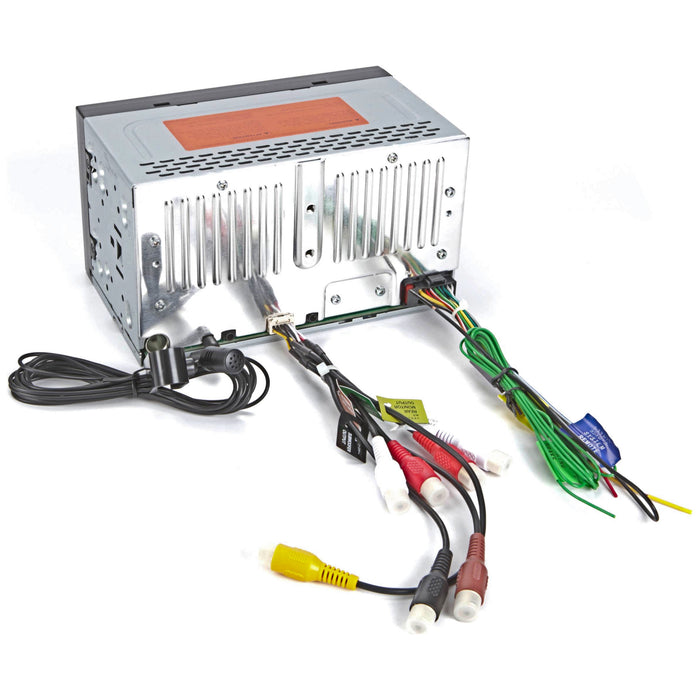

  • Wiring harness
  • Remote control (CXE9605)
  • CR2025 3V lithium battery (installed in remote)
  • Microphone w/ visor-bracket (attached 10' cable terminated by a right-angled 2.5mm connector)
  • 6 Installation Screws
  • Installation Manual
  • Quick Start Guide
  • 1 year Warranty Sheet
