PoE EOC 800M Converter Transmitter & Receiver Kit, Ethernet over Coax, RG59 Cable

800M PoE EOC Converter Transmitter & Receiver Kit, Ethernet over Coax, RG59 Cable, 10/100Mbps, IEEE 802.3af/at

PoE-EOC01 is a PoE/EOC converter for ultra-long distance data transmission and power supply, which converts the input PoE to coaxial cable transmission

• Supports IEEE 802.3, IEEE 802.3u and IEEE 802.3X standards
• Supports IEEEB02.3af and IEEE802.3at power supply standards
• Port：1 RJ45 10/100Mbps, 1 BNC
• Supports RG59 coaxial cable: 400m/100Mbps, 800m/10Mbps
• Supports MDI/MDIX self- adaption
• Supports long range power supply transmission via coaxial cable
• Operating temperature: -10℃ to 45℃

Specifications

• Device Type: PoE over Coax (EOC) Converter

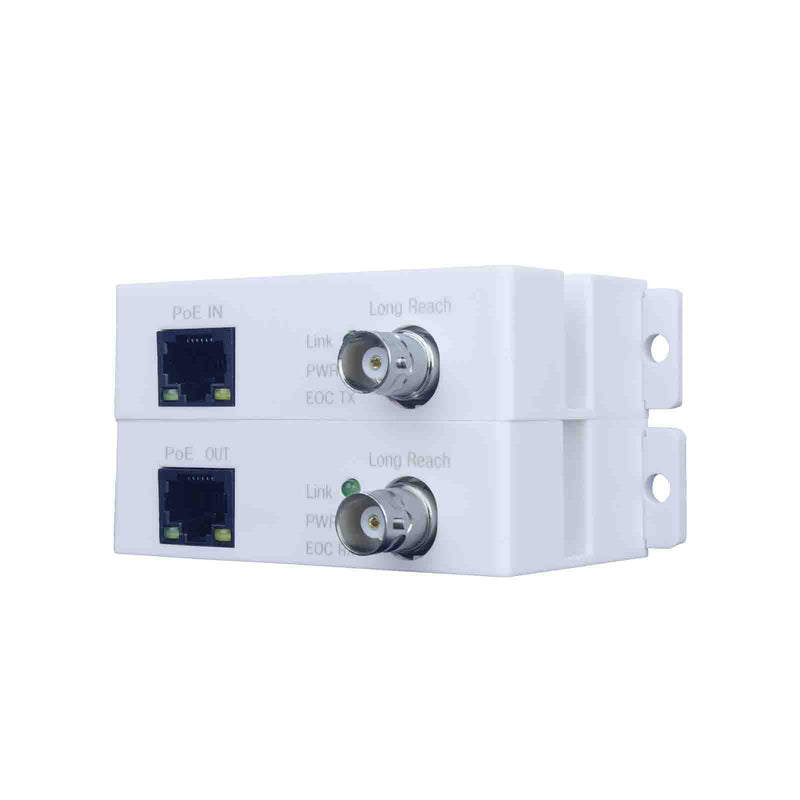

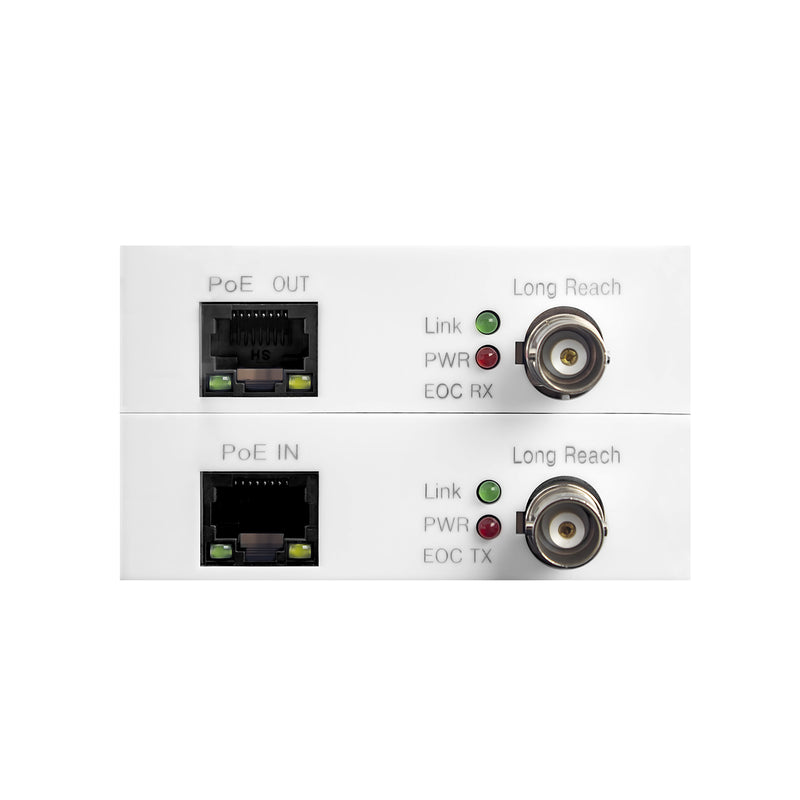

• Ports: 1 × RJ45 10/100Mbps Ethernet Port, 1 × BNC Coaxial Port
• Transmission Distance: Up to 400m (1,312 ft) at 100Mbps or up to 800m (2,625 ft) at 10Mbps using RG59 coaxial cable
• PoE Standards: IEEE 802.3af, IEEE 802.3at
• Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Features: Auto MDI/MDIX detection, long-range PoE transmission over coaxial cable, plug-and-play operation
• PoE Pin Assignment: 1/2, 3/6 and 4/5, 7/8
• Power Consumption: Less than 2W
• Operating Temperature: -10°C to 45°C (14°F to 113°F)
• Operating Humidity: 5% to 95% RH (non-condensing)
• Housing Material: White polycarbonate

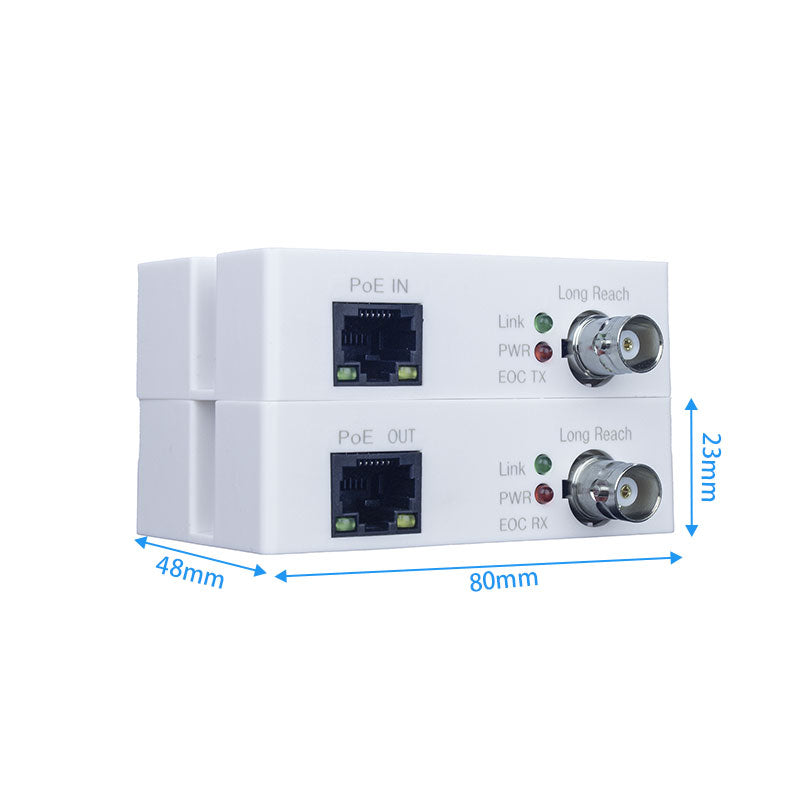

• Dimensions: 80 × 48 × 23 mm (3.15 × 1.89 × 0.91 in)
• Weight: 115 g (4.1 oz)
