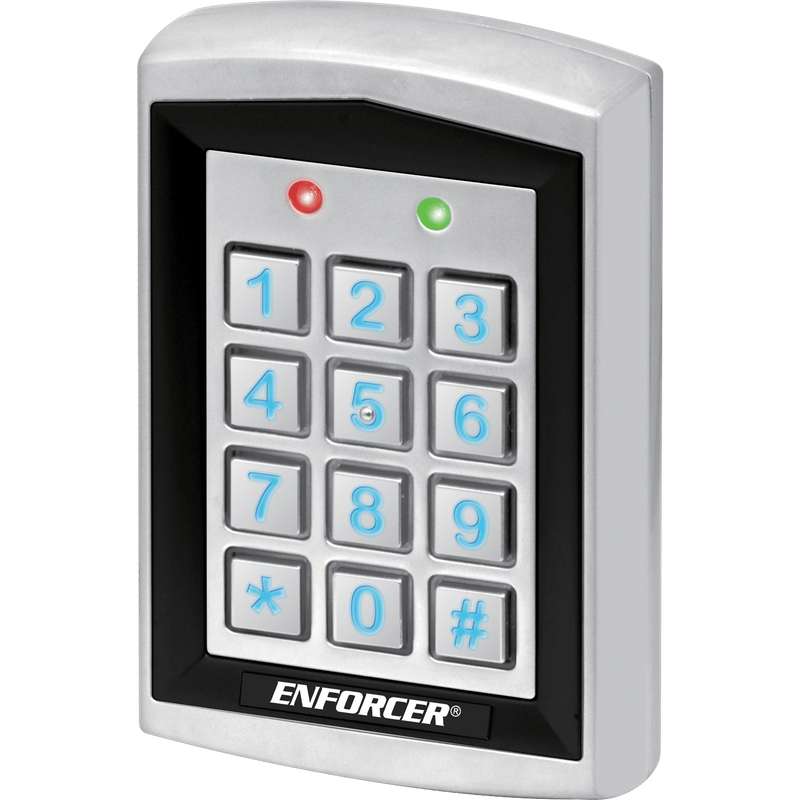

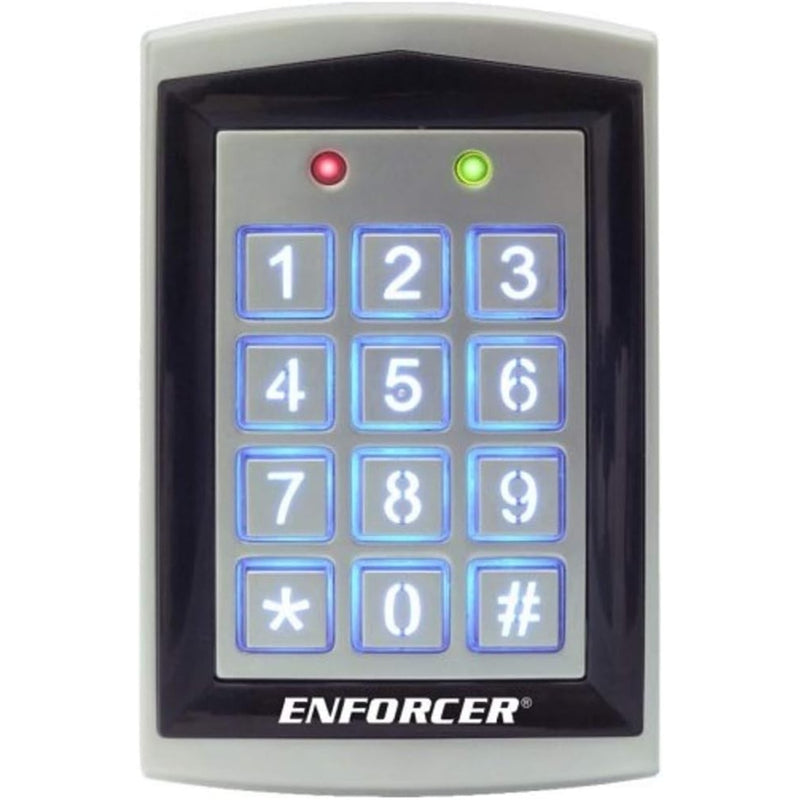

Seco-Larm SK-1323-SPQ Sealed Housing Weatherproof Stand-Alone Keypad with Proximity Card Reader

Seco-Larm SK-1323-SPQ Sealed Housing Weatherproof Stand-Alone Keypad with Proximity Card Reader

Designed for demanding commercial environments, these epoxy-sealed, outdoor keypads provide secure and flexible access control in a compact, weatherproof design with intuitive programming, multi-user support, and seamless integration, 2 outputs, and now two models in a black housing.

• 12~24 VAC/VDC operation
• 1,010 User codes
• 2 Form C relays, each rated 1A@30VDC, programmable from 1~99 seconds timed or toggle
• Output #2 can be programmed for use with a doorbell
• 2 Egress inputs for exiting the premises without keying in the code
• Backlit keys for easy nighttime use
• Door sensor input for anti-tailgating operation
• All features are programmed directly from the keypad – no need for an external programmer
• EEPROM memory protects programmed information in case of power loss
• Optical tamper for added security
• IP65 weatherproof – circuitry fully sealed with epoxy in rugged aluminum housing
• Built-in proximity card reader (some models)

Specifications

• Type  -  Sealed Housing Weatherproof Outdoor Digital Access Keypad
• Number of User Codes  -  Up to 1,010
• Operating Voltage   - 12~24 VAC/VDC
• Current Draw – Standby  -  64mA@12VDC
• Current Draw- Active  -  92-120 mA@12VDC
• Relay Outputs (2)  -  1A@30VDC, Form C, NO/COM/NC
• Egress Inputs  -  2, N.O. Ground
• Door Sensor Input  -  N.C. Ground
• Tamper Sensor  -  Optical
• Proximity Reader Frequency  -  125kHz
• Keypad LED Life  -  60,000 hours (over 6.8 years)
• Proximity Reader Sensing Distance -   1-15/16″ (50mm)
• Operating Temperature  -  -4°~122° F (-20°~50° C)
• Dimensions  -  4-3/4″x3″x7/8″ (120x76x22 mm)
• Weight   - 1-lb, 2-oz (510g)
• IP Rating  -  Weatherproof IP65

Docs/Instruction Links

• Product Information Sheet
• Manual
• Mounting Template
