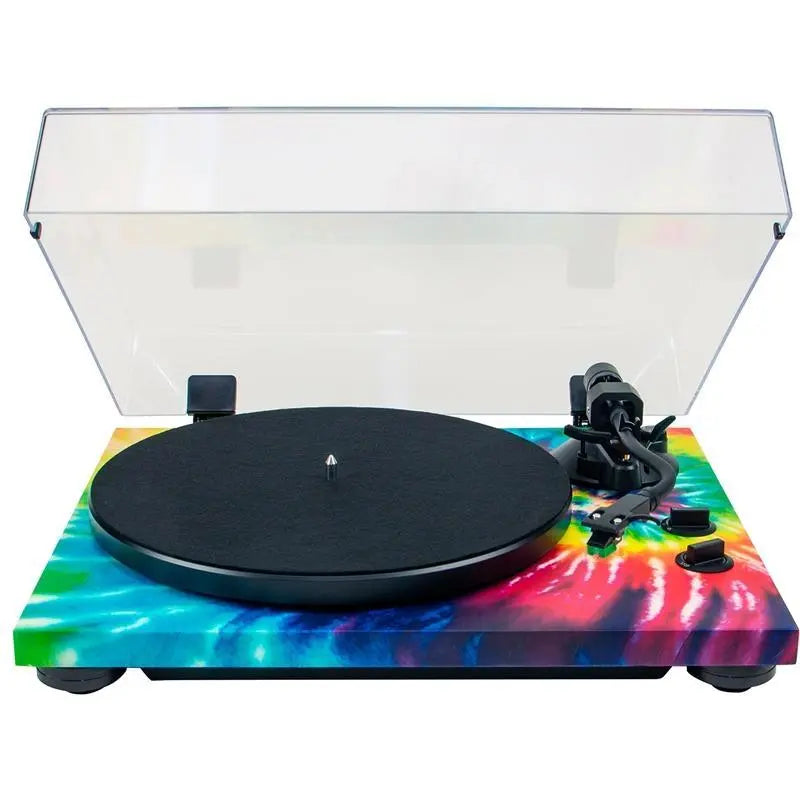

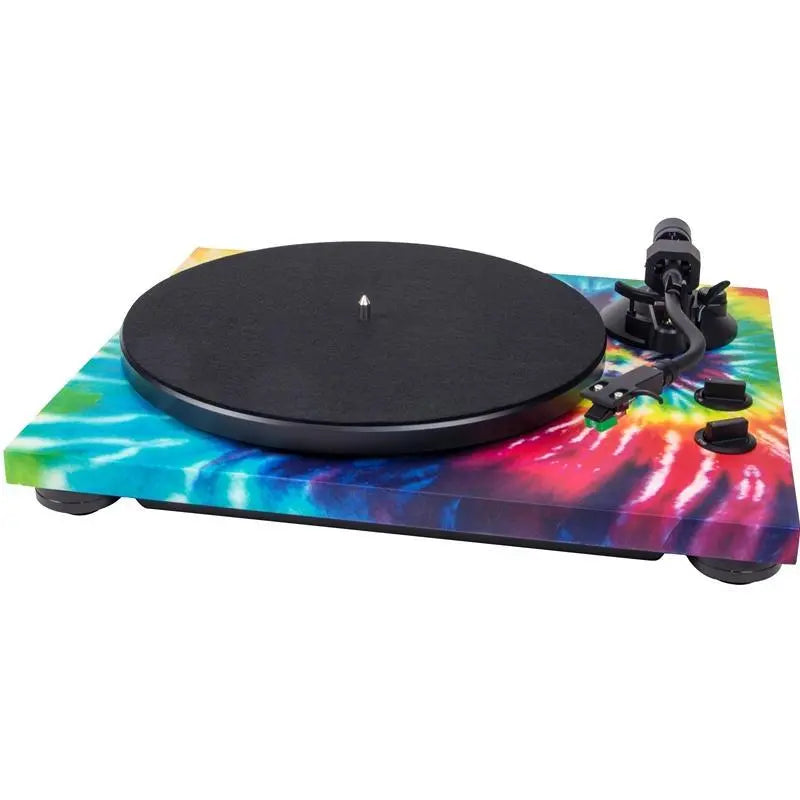

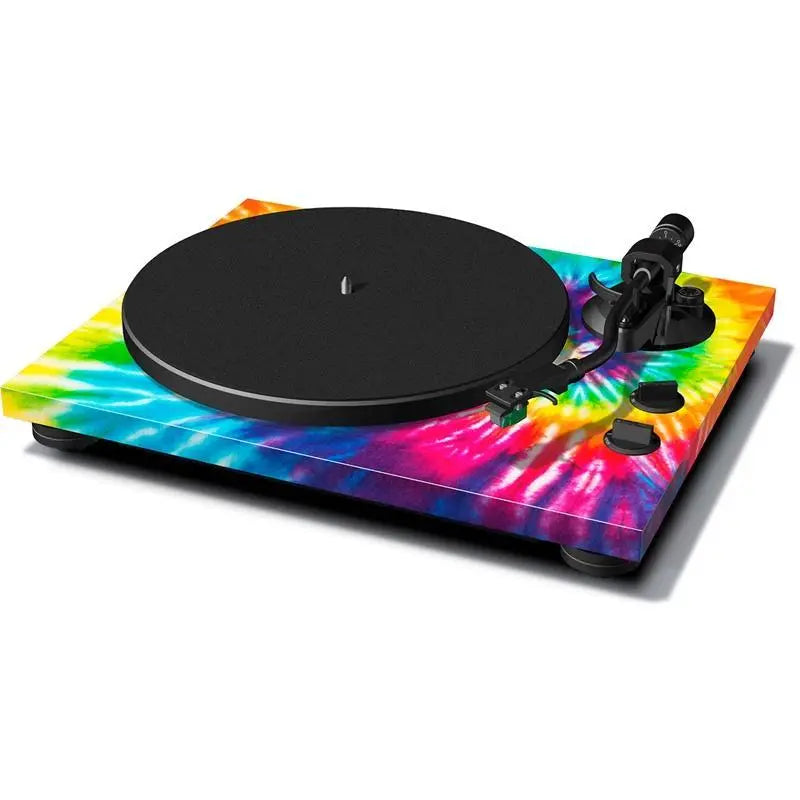

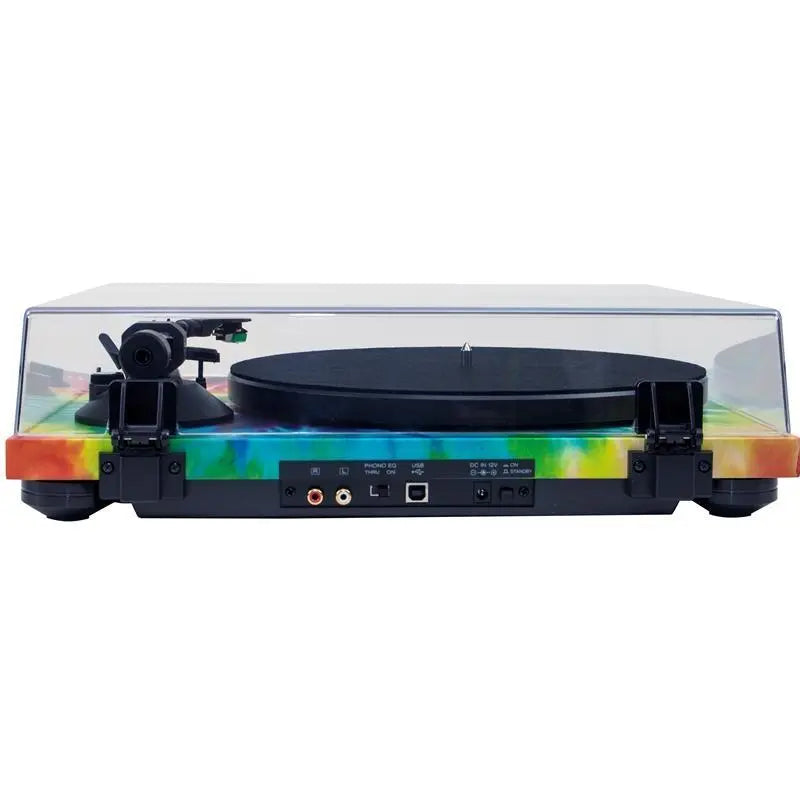

Teac TN-420 Tie-Dye Belt-Driven Turntable w/ S-Shape Tonearm & USB Out

Sorry, this product has been discontinued.

Teac TN-420 Tie-Dye Belt-Driven Turntable with S-Shaped Tonearm and USB Output

MPN: TN-420-TD
Condition: New

2-speed Turntable including 33-1/3 and 45 RPM for LP/EP record playback
Unique Tie-Dye finish
Built-in phono equalizer amplifier for MM type cartridge (Line/Phono output switchable)
USB digital output for transferring music from vinyl to Mac or PC
Belt-drive turntable for enhanced speed control and consistency
Manual arm lifter for direct tone arm control
Static balanced S-shaped Tone Arm
Replaceable Head shell
Anti-skating system prevents tracking errors
Heavy-weight Aluminum Die-cast Platter
Japan made ​​MM-type cartridge (audio-technica AT95E) included
Corrosion resistant gold-plated terminals
RoHS complied

Turntable section
Drive System:
Belt Drive
Motor: DC Motor
Speed: 33 1/3 RPM, 45 RPM
Rotation Speed Variation: +/–2%
Wow and Flutter: 0.2%
Signal-to-Noise Ratio: 67dB or higher (A-weighted, 20kHz LPF); 60dB or higher (unweighted, 20kHz LPF)
Platter: Aluminum Die-cast
Diameter of Platter: 12" (30cm)

Tonearm section
Static Balance, S-shaped
Effective Arm Length: 8.8" (223mm)
Stylus Pressure Range: 0 to 5g
Supported Cartridge Weight: 3.5 to 6.5g
Anti-skating Adjustment: Supported

Cartridge section
MM type (audio-technica AT95E factory installed)
Stylus Shape: Elliptical
Stylus Construction: Bonded Round Shank
Mount: Half inch
Frequency Response: 20Hz to 20kHz
Channel Separation: 20dB at 1kHz
Channel Balance: 2.0dB
Tracking Force: 1.5 to 2.5g
Vertical Tracking Angle: 20 degrees
Supported Load Impedance: 47k ohms
Output Voltage: 3.5mV (1kHz, 5cm/sec.)
Stylus Pressure: 2.0g +/–0.5g
Cartridge Weight: 5.7g +/–0.5g
Head-shell Weight: 10g (including Screws, Nuts and Wires)
Replacement Stylus: audio-technica ATN95E

Phono Equalizer Amplifier
Type of Amplifier:
MM type (On/Thru switchable)

Analog Output
Connector: RCA Pin jack (Gold-plated)
Output Voltage: Phono/Line switchable
Phono Output: 4.5mV +/–3dB
Line Output: 120mV (–13dBV)

USB Output section
USB B type
Output Signal: PCM 48kHz/16-bit
Supported OS
Windows 7
Windows 8
Windows 8.1
Windows 10
OS X Lion (10.7)
OS X Mountain Lion (10.8)
OS X Mavericks (10.9)
OS X Yosemite (10.10)
OS X El Capitan (10.11)
macOS Sierra (10.12)
Power: AC 100 to 240V, 50/60Hz
Power Consumption: 1.5W (less than 0.5W at Standby)
Overall Dimensions (W x H x D): 16.5" x 4.6" x 14.0" (420 x 117 x 356 mm)
Weight: Approx. 10.8 lbs. (4.9 kg)

TN-420 Turntable
Felt Mat
EP Adapter
Counter Weight
Head-shell (audio-technica AT95E)
Dust Cover
Rubber Feet for Dust Cover x2
Hinge x2
RCA Audio Cable
AC Adapter (GPE053A-120050-1)
Owner's Manual (including Warranty Card)
