Uniview IPC6325LFW-AX5C-VG 5MP 2.7-13.5mm Motorized Lens Tri-Guard Dual-light IP Network PTZ Camera

Uniview IPC6325LFW-AX5C-VG 5MP 2.7-13.5mm Motorized Lens Tri-Guard Dual-light IP Network PTZ Camera
Disponibilidad:
Stock bajo
$0.00 - $0.00
$0.00
$739.00
$739.00 - $739.00
$739.00

Uniview IPC6325LFW-AX5C-VG 5MP 2.7-13.5mm Motorized Lens Active Deterrence Tri-Guard Dual-light IP Network PTZ Camera

The Uniview IPC6325LFW-AX5C-VG is a powerful 5MP PTZ surveillance camera engineered for high-security environments, offering Ultra HD resolution (2560×1920) for sharp, detailed imaging. Its motorized 2.7mm–13.5mm varifocal lens enables flexible zoom and field-of-view adjustments, while advanced Starlight technology ensures vivid color performance even in low-light conditions. Designed for active deterrence, it features built-in alarms, two-way audio for real-time communication, and intelligent auto-tracking to follow moving subjects automatically. Housed in a durable metal casing and equipped with PoE support, this weather-resistant camera is ideal for outdoor facilities, parking lots, commercial spaces, and other demanding surveillance applications.

  • High quality image with 5 MP, 1/2.8" CMOS sensor
  • Ultra 265, H.265, H.264, MJPEG
  • Smart intrusion prevention, supports false alarm filtering, including cross line, intrusion, enter area, leave area detection
  • LightHunter technology ensures ultra-high image quality in low illumination environment
  • Up to 120 dB WDR (wide dynamic range)
  • Built-in mic and speaker
  • Smart IR, up to 50 m (164.0 ft) IR distance and 15 m (49.2 ft) warm light distance
  • MicroSD, up to 512 GB
  • IP66 protection
  • DC 12 V, PoE (IEEE 802.3at) power supply

This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.

Note: Uniview IP cameras will work as plug and play with Uniview NVRs. For other NVR systems, network setup is required

Specifications:

Camera

  • Max Resolution: 5 MP
  • Sensor: 1/2.7" CMOS
  • Minimum Illumination:
    • Color: 0.005 Lux (F1.2, AGC ON)
    • 0 Lux with IR
  • Day/Night: IR-cut filter with auto switch (ICR)
  • Shutter: Auto/Manual, 1 to 1/100000 s
  • WDR: 120 dB
  • S/N Ratio: >56 dB

Lens

  • Focal Length: 2.7 to 13.5 mm
  • Optical Zoom: 5X
  • Iris: F1.2
  • Field of View:
    • Horizontal: 106.9° to 30.6°
    • Vertical: 56° to 17.7°
    • Diagonal: 131.5° to 36.1°

DORI Distances

  • Detect: 70.9 m to 247.5 m (232.5 ft to 812.0 ft)
  • Observe: 28.4 m to 99.0 m (93.2 ft to 324.8 ft)
  • Recognize: 14.2 m to 49.5 m (46.5 ft to 162.4 ft)
  • Identify: 7.1 m to 24.8 m (23.3 ft to 81.4 ft)

Video

  • Privacy Mask: Up to 4 areas
  • Compression: Ultra 265, H.265, H.264, MJPEG
  • Frame Rate:
    • Main Stream: 5 MP (2880 × 1620), max. 30 fps
    • Sub Stream: 720P (1280 × 720), max. 30 fps
    • Third Stream: D1 (720 × 576), max. 30 fps
  • Bit Rate: 128 Kbps to 16 Mbps
  • U-code / ROI / Triple Streams / OSD: Supported (Up to 8 OSDs)

Intelligent Features

  • Auto Tracking: Human-only target filtering
  • Smart Intrusion Prevention:
    • Cross line detection
    • Intrusion detection
    • Enter/Leave area detection
    • False alarm filtering
    • Classification: human, non-motor vehicle, vehicle
  • People Counting: Flow counting & crowd density monitoring
  • Exception Detection:
    • Object removed/left behind
    • Scene change
    • Defocus detection

Image Settings

  • White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
  • Noise Reduction: 2D/3D DNR
  • Flip Options: Normal, Vertical, Horizontal, 180°
  • HLC / BLC / Smart IR / Defog: Supported

Illuminator

  • Control: Auto/Manual
  • Wavelength: 850 nm
  • IR Distance: 50 m (164.0 ft)
  • Warm Light Distance: 15 m (49.2 ft)

Events

  • Basic Detection: Motion, Tampering, Audio, Object removed/left, Scene change, Defocus
  • General Functions:
    • Watermark
    • IP filtering
    • Access policy
    • ARP protection
    • RTSP/User authentication

Audio

  • Compression: G.711U, G.711A
  • Bitrate: 128 Kbps
  • Two-way Audio / Suppression / Sampling Rate (16KHZ): Supported

Storage

  • Edge Storage: MicroSD, up to 512 GB
  • Network Storage: ANR, NAS (NFS)

Network

  • Protocols: TLS1.3, SSH, IGMP, RTP, RTCP, SMTP, IPv4/IPv6, ICMP, ARP, TCP/UDP, DHCP, PPPoE, RTSP, RTMP, DNS/DDNS, NTP, FTP, UPnP, HTTP/HTTPS, 802.1x, SNMP, QoS, SSL/TLS
  • Integration: ONVIF (Profiles S/G/T/M), API, SDK
  • Security:
    • Password protection
    • HTTPS encryption
    • Operation logs
    • RTSP/HTTP authentication
    • TLS 1.2, WSSE

Client & Browser

  • Client Software: EZStation, UNV-Link, UNV-Link Pro
  • Browser Support:
    • IE 10+, Chrome 45+, Firefox 52+, Edge 79+ (Plug-in required for live view)

PTZ (Pan-Tilt-Zoom)

  • Presets: 1024
  • Preset Patrols: 16 patrols, up to 64 presets each
  • Patrol Stay Time: 120 s to 1800 s
  • Home Position: Supported
  • Pan Range: 0° to 345°
  • Tilt Range: -10° to 100°
  • Pan Speed: 1°/s to 50°/s
  • Tilt Speed: 1°/s to 40°/s

Interfaces

  • Audio I/O:
    • Input: 1 (1 kΩ, 2.5 V [p-p])
    • Output: 1 (600 Ω, 2.5 V [p-p])
  • Alarm I/O: 1/1
  • Built-in Mic/Speaker: Supported
  • Network Port: 1 × RJ45 10/100 Mbps Ethernet

Certifications

  • EMC: CE-EMC, EN standards
  • Safety: CE LVD, UL
  • Environmental: CE-ROHS
  • Protection: IP66

General

  • Power: DC 12 V (±25%), PoE (IEEE 802.3at)
  • Consumption: 18 W
  • Power Interface: Ø5.5 mm coaxial plug

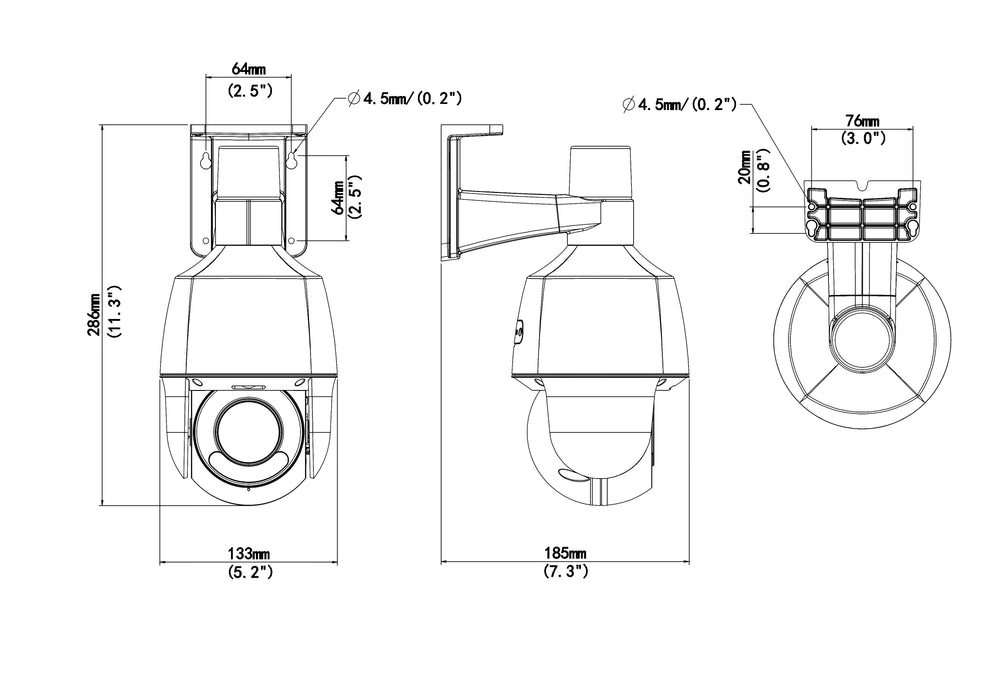

  • Dimensions: 185 × 133 × 286 mm (7.3" × 5.2" × 11.3")
  • Weight: 1.32 kg (2.91 lb)
  • Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), ≤95% RH
  • Storage Environment: -40°C ~ 70°C (-40°F ~ 158°F), ≤95% RH
  • Surge Protection: 2 KV
  • Reset Button / Heater: Supported
  • Web Client Languages: 22 languages including English, Chinese, Spanish, Arabic, etc.
  • Configurable P/N: Supported
