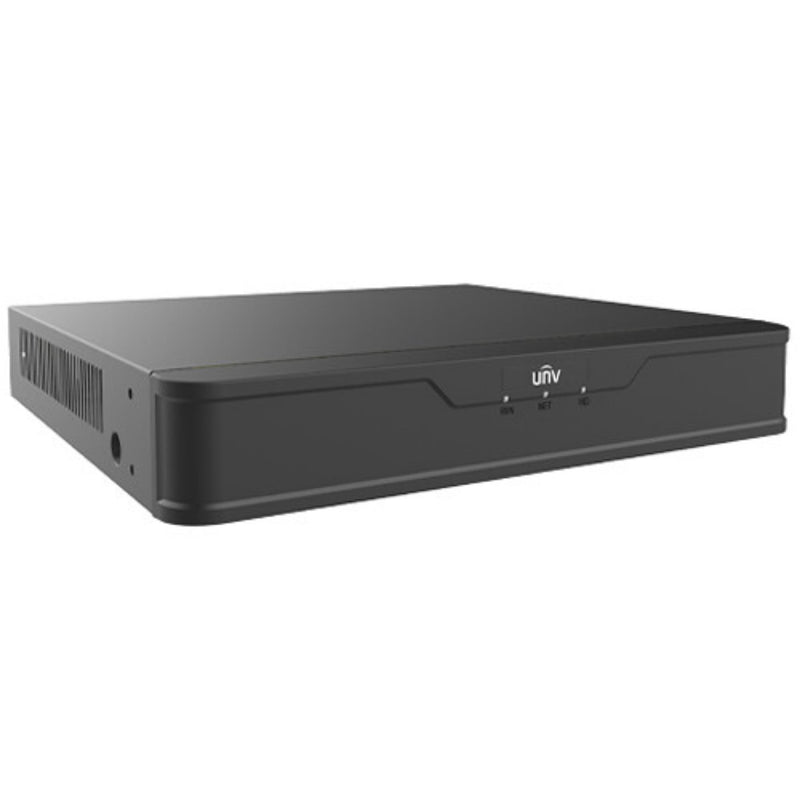

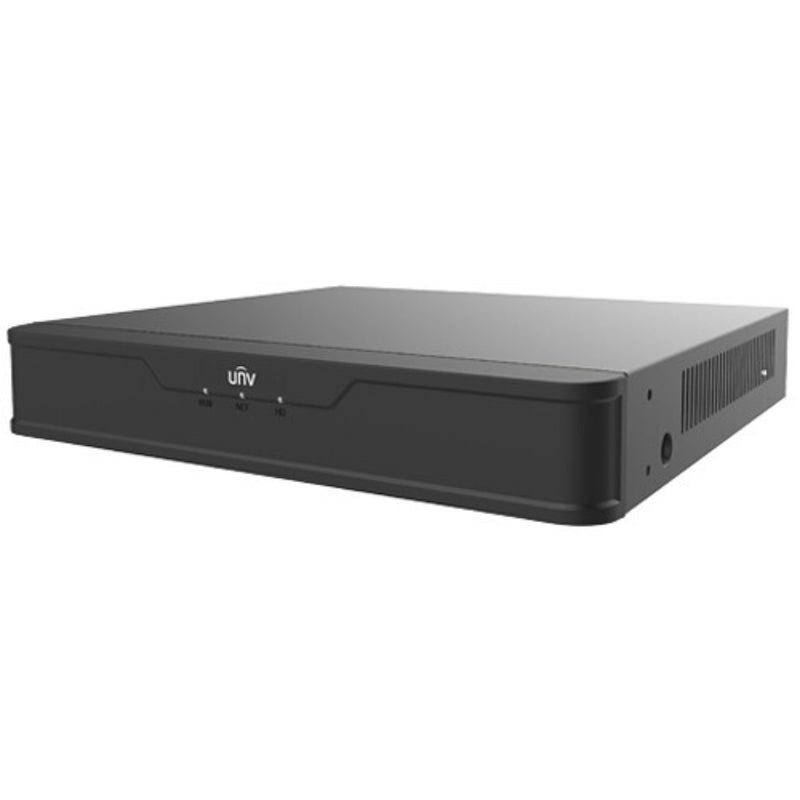

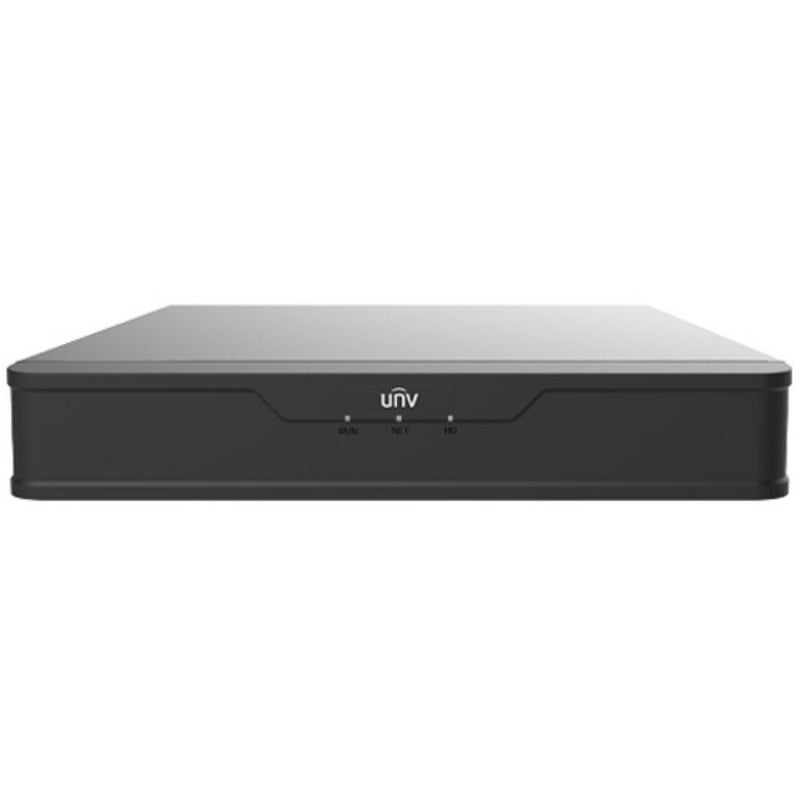

Uniview NVR501-08B-P8 8-Channel 8MP Network Video Recorder (No HDD)

Uniview NVR501-08B-P8 8-Channel 8MP Network Video Recorder (No HDD)

Record from and manage up to 8 cameras with the NVR501-08B-P8 8-Channel 8MP NVR (No HDD) from Uniview at resolutions up to 8MP. This NVR is equipped with a SATA port that supports an HDD up to 8TB (HDD available separately). H.265 and H.264 video compressions keep file sizes manageable while maintaining the best quality possible.

This recorder supports up to 128 remote users and two-way audio. An HDMI and a VGA port enable video output to an external monitor (available separately) at up to 4K UHD resolution (HDMI only). ONVIF compliance for profiles G, S, and T offers interoperability with ONVIF IP cameras.

• Plug-and-play operation
• 4K UHD HDMI and 1080p VGA video output
• 8-channel synchronous playback
• 3/4/5/7/9 corridor mode screen
• ANR technology enhances storage reliability when the network is disconnected
• Can be upgraded via cloud

Specifications

Number of Channels  -  8
Playback Resolution

• HDMI:
  •  3840 x 2160 at 30 Hz
  •  1920 x 1080 at 60 Hz
• VGA:
  •  1920 x 1080 at 60 Hz
• Recording Resolution    1080p, 720p, 960p, 2CIF, CIF, D1, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP
• PTZ Support    Yes
• Throughput
  • 80 Mb/s (Incoming)
  • 64 Mb/s (Outgoing)
• A/V I/O
  • 1x HDMI
  • 1x VGA
  • 1x RCA Audio Input
  • 1x RCA Audio Output
• Communication I/O
  • 8x RJ45 10/100 Mb/s Ethernet (Rear) PoE
  • 1x RJ45 10/100 Mb/s Ethernet (Rear)
  • 1x USB-A 2.0 (Front)
  • 1x USB-A 3.0 / 3.1/3.2 Gen 1 (Rear)
• Wi-Fi  -  No
• Bluetooth  -  No
• Installed Drive  -  No
• PoE Power Budget  -  75 W

General

• Number of Channels    8
• Playback Resolution
• HDMI:
  •  3840 x 2160 at 30 Hz
  •  1920 x 1080 at 60 Hz
• VGA:
  • 1920 x 1080 at 60 Hz
• Recording Resolution    1080p, 720p, 960p, 2CIF, CIF, D1, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP
• PTZ Support    Yes
• Throughput
  • 80 Mb/s (Incoming)
  • 64 Mb/s (Outgoing)
• IP Camera Support    8
• Decoding Resolution
• 4 Channels:
  • 4K at 30 fps
• 6 Channels:
  • 5 MP at 30 fps
• 8 Channels:
  • 4 MP at 30 fps
• 2-Way Audio    Yes

Connectivity
A/V I/O

• 1x HDMI
• 1x VGA
• 1x RCA Audio Input
• 1x RCA Audio Output

Communication I/O

• 8x RJ45 10/100 Mb/s Ethernet (Rear) PoE
• 1x RJ45 10/100 Mb/s Ethernet (Rear)
• 1x USB-A 2.0 (Front)
• 1x USB-A 3.0 / 3.1/3.2 Gen 1 (Rear)

Audio I/O

• 1x Input
• 1x Output
• System Connection
• 1x SATA
• Wi-Fi    No
• Bluetooth    No
• Maximum User Access    128
• Network Protocols    DDNS, DHCP, DNS, HTTP, HTTPS, NTP, P2P, PPPoE, SMTP, SNMP, TCP/IP, UPnP

Compatibility

• Supported Video Codecs    H.265
• Supported Audio Codecs    G.711A, G.711U
• Software Upgrade    Network
• Supported IEEE Standards    802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W)

System

• Installed Drive    No
• Max Capacity Supported    8 TB (Total)
• Number of Bays    1x Internal

Software System Requirements

• OS Compatibility    Computer: Windows
• Mobile: Android/iOSWeb Browser Support    Chrome, Edge, Firefox, Internet Explorer

Notifications

• Alarm I/O    No
• Event Trigger    Alarm, Disconnected, Disk Failure, Disk Full, Motion, Network Loss, Recording, Snapshot, Sound, Tampering, Tracking, Video Loss
• Notification Type    Buzzer, Email, SNMP

System Functions

• Search Modes    Event, Object, Smart Search, Snapshot
• Recording Modes    Alarm, Analytics, Event, Motion, Schedule, Tampering, Video Loss
• Dual Streaming    Yes
• Multi-Screen Configuration    1, 4, 6, 8, 9
• Fisheye Dewarping    No

Electrical

• Power Consumption    10 W (Without HDD)
• Power Supply Type    External
• PoE Power Budget    75 W
• PoE per Port    30 W
• Input Power    52 VDC at 1.8 A

Physical

• Built-In Display    No
• Operating Conditions    14 to 131°F / -10 to 55°C up to 90% Humidity
• Certifications    CE, FCC, RoHS, UL, WEEE
• LED Indicators    Yes
• Dimensions (W x D x H)    10.2 x 8.7 x 1.9" / 260.0 x 222.0 x 47.0 mm
• Weight    2.16 lb / 0.98 kg

Packaging Info

• Package Weight    3.76 lb
• Box Dimensions (LxWxH)    16.8 x 11.2 x 3"

Docs/Instruction Links

• User Manual
