Orion XTR10SWD4 XTR Series 1600 Watts Max Power 10" DVC 4 Ohm Car Subwoofer 400W RMS (Each)

Orion XTR10SWD4 XTR Series 1600 Watts Max Power 10" DVC 4 Ohm Car Subwoofer 400W RMS (Each)
Availability:
in stock, ready to be shipped
$0.00 - $0.00
$0.00
$129.95
$129.95 - $129.95
$129.95

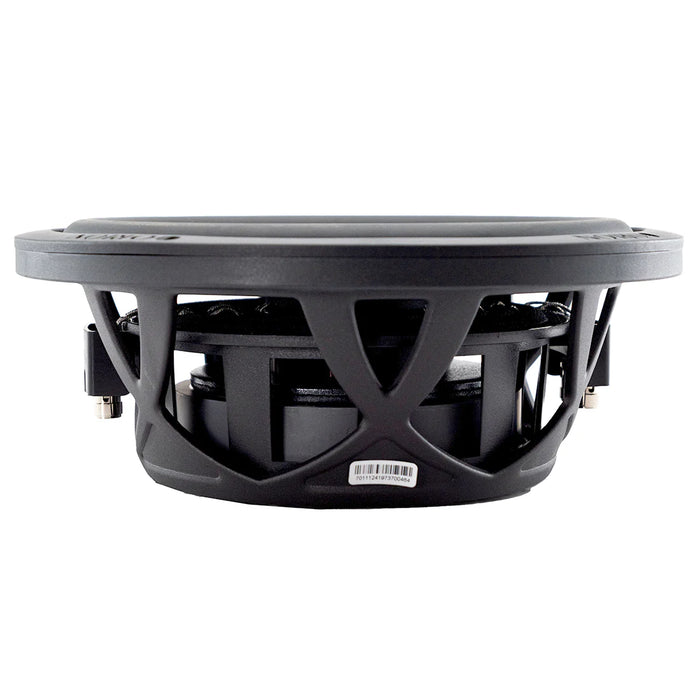

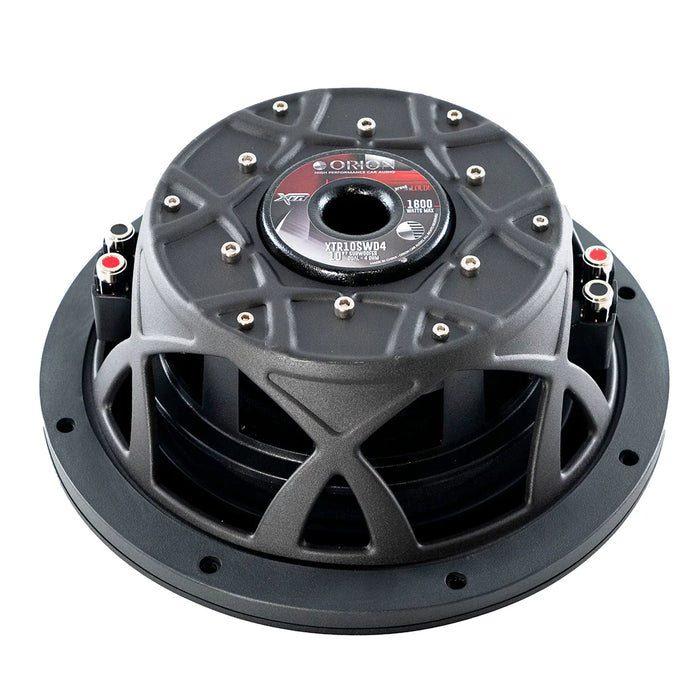

Orion XTR10SWD4 XTR Series 1600 Watts Max Power 10" DVC 4 Ohm Car Subwoofer 400W RMS (Each)

The XTR Series XTR10SWD4 is a powerful 10-inch shallow subwoofer from Orion, engineered to deliver high-impact bass in a compact design. It boasts an impressive 400W RMS power and a maximum capacity of 1600W, making it an ideal choice for enthusiasts seeking both volume and depth in their car audio system. The dual 4 ohm voice coils allow for flexible wiring options, maximizing the efficiency of power use while accommodating different system configurations.

This subwoofer’s shallow mount design is particularly advantageous for installations with limited space, such as in compact cars or under seats, ensuring no compromise in bass output or quality. Despite its modest footprint, the XTR10SWD4 does not hold back on performance. It provides deep, powerful bass that enriches every track, enhancing the overall listening experience.

Constructed with durability in mind, the XTR10SWD4 features high-quality materials and robust design elements that withstand the demands of high-power playback without distortion. This subwoofer is designed not only to meet the expectations of serious audio aficionados but also to exceed them, offering resonant, palpable bass that transforms any vehicle into a dynamic soundstage. If you're looking to elevate your car’s audio performance, the Orion XTR Series XTR10SWD4 shallow subwoofer is a superb choice that brilliantly merges power, size, and sound quality.

  • Dual 4 Ohm Voice Coils: Flexible wiring options with 2.5" copper-wound coils for enhanced durability.
  • UV-Coated Paper/Fiber Cone: Delivers rigidity and superior sound responsiveness.
  • NBR Rubber Surround: Provides excellent durability and allows extensive cone movement.
  • Exclusive Heavy-Gauge Stamped Steel Basket: Increases structural integrity and reduces vibration.
  • Nickel-Plated Push Terminals: Ensures reliable and easy connections.
  • Shallow Mount Design: Perfect for installation in tight spaces without sacrificing performance.

Specifications:

  • Subwoofer Size: 10 (Inches)
  • Voice Coil Configuration: Dual 4-ohm
  • Power Handling (Peak): 1600 Watts
  • Power Handling (RMS): 400 Watts
  • Sensitivity: 83 dB
  • Frequency Response: 35 Hz - 300 Hz
  • Dustcap Material: Polypropylene
  • Cone Material: UV Coated Paper / Fiber Blend Cone
  • Surround Material: NBR
  • Magnet Information: Ceramic
  • Mounting Depth: 87mm / 3.43 (Inches)
  • Cutout Diameter: 231mm / 9.09 (Inches)
  • Overall Diameter: 275mm / 10.83 (Inches)

Docs/Instruction Links:

What is Proposition 65?

California’s Proposition 65 protects California consumers by requiring special warnings for products that contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm where those products would expose consumers to such chemicals above certain threshold levels.

If a product description on this site directed you to this page, the warning for this item is:

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Who is this message intended for?

Customers with a California billing or ship to address.

Why are you seeing the message now?

California implemented new guidelines for Proposition 65 warnings, effective August 30, 2018. These guidelines were applied to make the warnings more clear and reasonable.

Where can you get more information about Proposition 65?

Learn more from the California Office of Environmental Health Hazard Assessment (OEHHA) site here.

loading
Description

Orion XTR10SWD4 XTR Series 1600 Watts Max Power 10" DVC 4 Ohm Car Subwoofer 400W RMS (Each)

The XTR Series XTR10SWD4 is a powerful 10-inch shallow subwoofer from Orion, engineered to deliver high-impact bass in a compact design. It boasts an impressive 400W RMS power and a maximum capacity of 1600W, making it an ideal choice for enthusiasts seeking both volume and depth in their car audio system. The dual 4 ohm voice coils allow for flexible wiring options, maximizing the efficiency of power use while accommodating different system configurations.

This subwoofer’s shallow mount design is particularly advantageous for installations with limited space, such as in compact cars or under seats, ensuring no compromise in bass output or quality. Despite its modest footprint, the XTR10SWD4 does not hold back on performance. It provides deep, powerful bass that enriches every track, enhancing the overall listening experience.

Constructed with durability in mind, the XTR10SWD4 features high-quality materials and robust design elements that withstand the demands of high-power playback without distortion. This subwoofer is designed not only to meet the expectations of serious audio aficionados but also to exceed them, offering resonant, palpable bass that transforms any vehicle into a dynamic soundstage. If you're looking to elevate your car’s audio performance, the Orion XTR Series XTR10SWD4 shallow subwoofer is a superb choice that brilliantly merges power, size, and sound quality.

  • Dual 4 Ohm Voice Coils: Flexible wiring options with 2.5" copper-wound coils for enhanced durability.
  • UV-Coated Paper/Fiber Cone: Delivers rigidity and superior sound responsiveness.
  • NBR Rubber Surround: Provides excellent durability and allows extensive cone movement.
  • Exclusive Heavy-Gauge Stamped Steel Basket: Increases structural integrity and reduces vibration.
  • Nickel-Plated Push Terminals: Ensures reliable and easy connections.
  • Shallow Mount Design: Perfect for installation in tight spaces without sacrificing performance.
