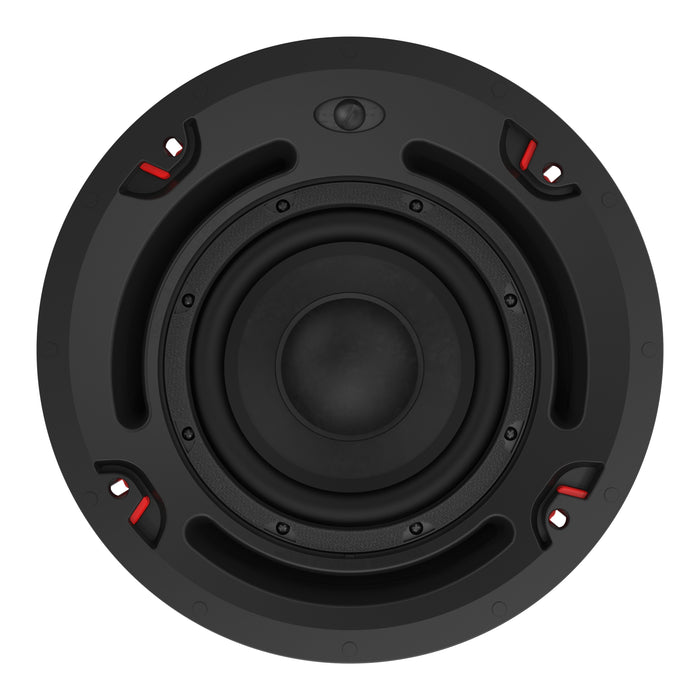

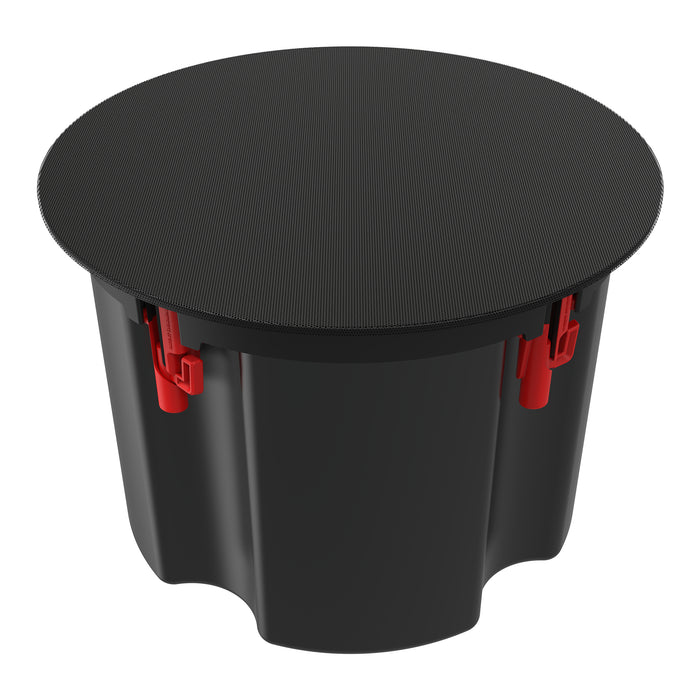

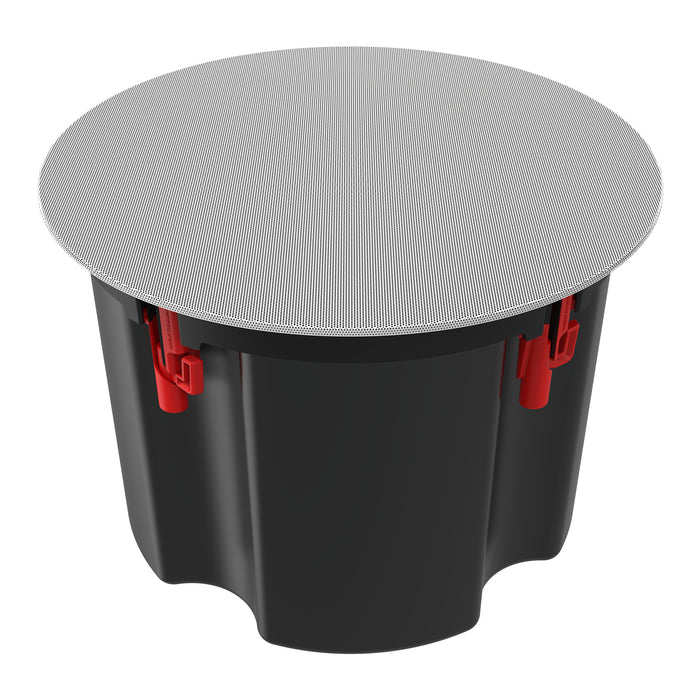

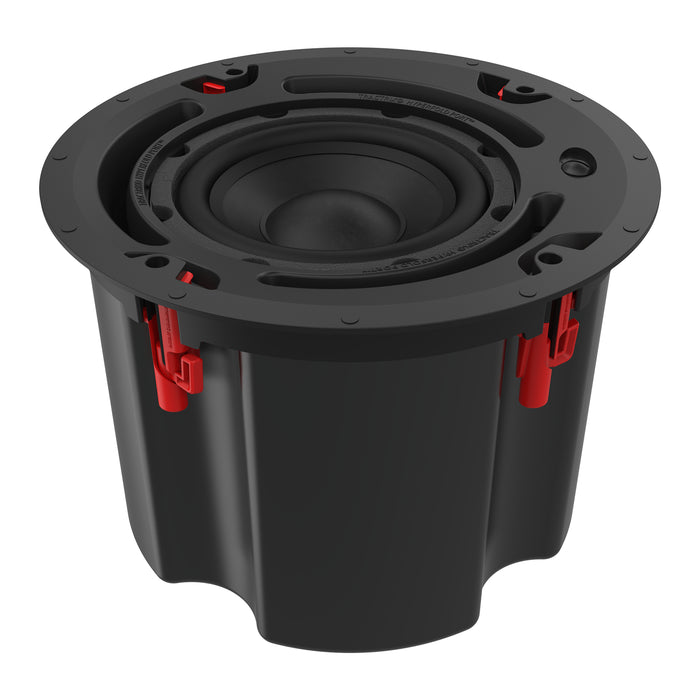

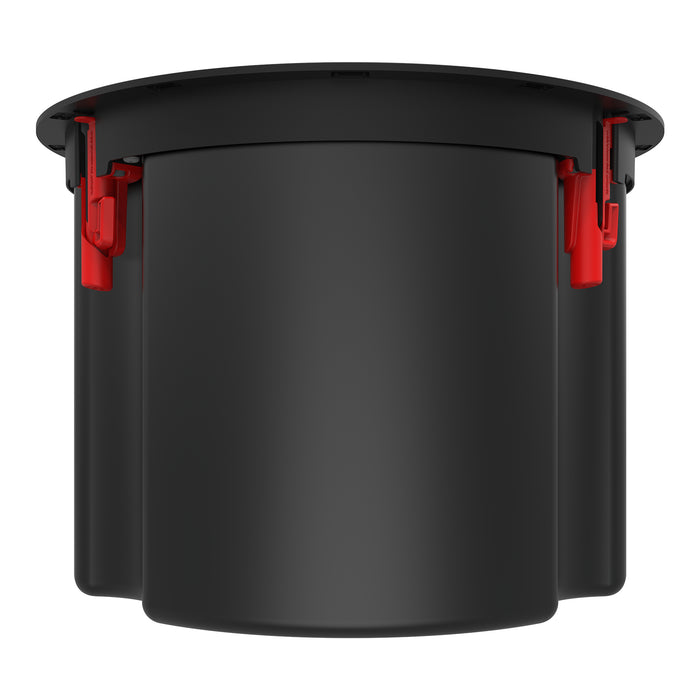

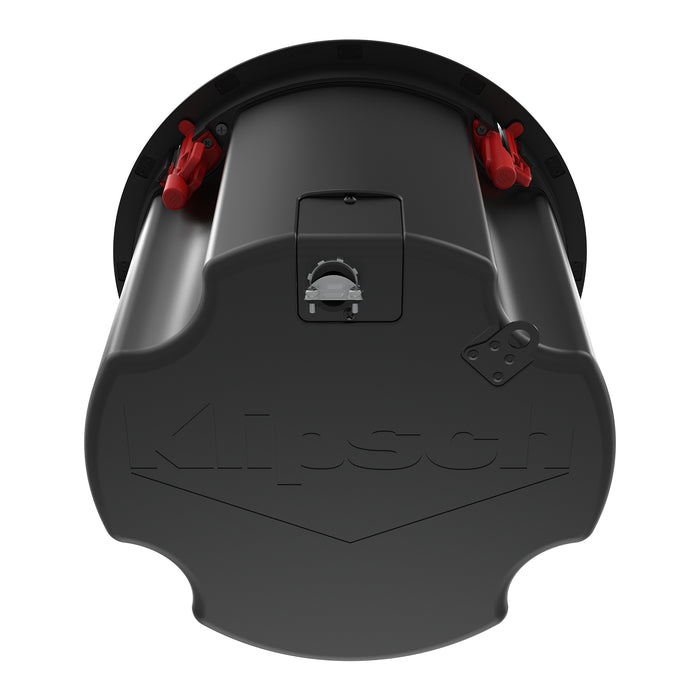

Klipsch PIC-800-SW-T 8" 600W Max Power 70V/100V/8Ohm Commercial In-Ceiling Subwoofer (each)

Klipsch PIC-800-SW-T 8" 600W Max Power 70V/100V/8Ohm Commercial In-Ceiling Subwoofer (each)
Availability:
Low stock
$499.95 - $499.95
$499.95
$499.95 - $499.95
$499.95

Klipsch PIC-800-SW-T 8" 600W Max Power 70V/100V/8Ohm Commercial In-Ceiling Subwoofer (each)

Deliver powerful, natural bass in any commercial space with the Klipsch PIC-800-SW-T 8-inch in-ceiling subwoofer, featuring the patented Tractrix® Hyperfold Port™ for maximum low-frequency output and wide dispersion with minimal distortion. Designed for quick, tool-free installation using the exclusive Sky Hook® Pro system, this subwoofer is IPX6 rated for durability in humid or challenging environments. It includes both black and white paintable magnetic grilles to blend seamlessly into any décor, and a Phoenix connector for simplified wiring. With flexible power options including a multi-tap transformer and 4-ohm bypass, the PIC-800-SW-T integrates easily into 70V systems or standard amplifiers, making it ideal for spas, lounges, retail spaces, and more.

  • All-New Tractrix® Hyperfold™ Port
  • 1" Titanium compression driver
  • Exclusive patented Sky Hook® Pro System
  • Phoenix connector
  • IPX6 Rated

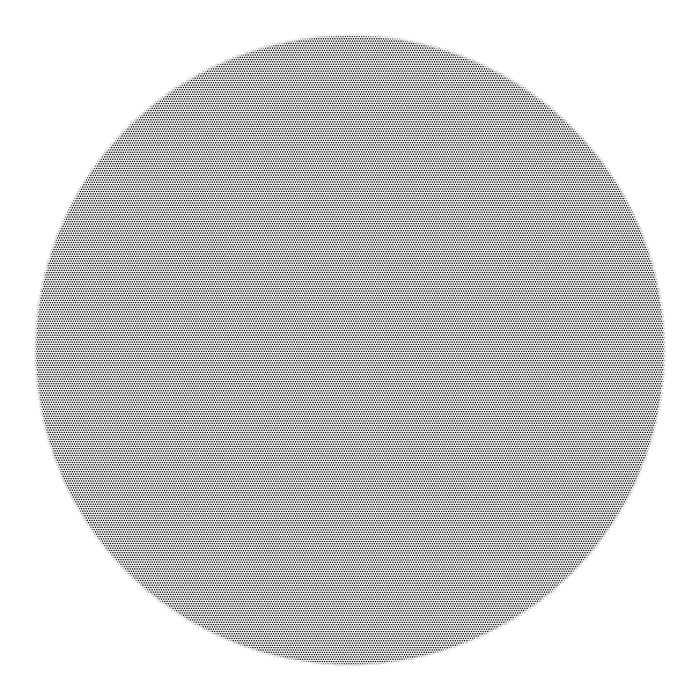

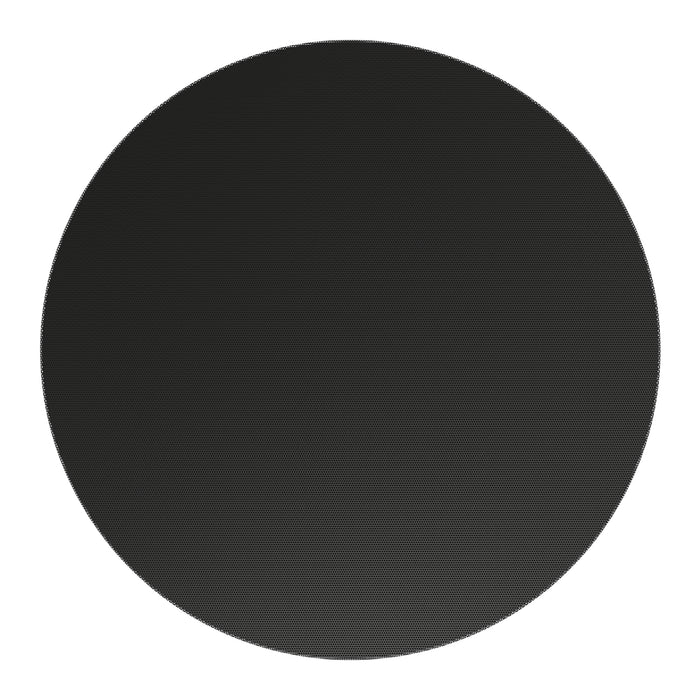

  • Paintable black and white grilles included

Specifications:

Frequency Response

  • 40Hz–200Hz ±4dB
  • 32Hz at -10dB

Power Handling

  • Continuous: 150 watts (25.4V)
  • Peak: 600 watts
  • Frequency Range: 40Hz–200Hz

Calculated Maximum Continuous Output

  • 108dB

Sensitivity

  • 89dB

Nominal Impedance

  • 8 ohms nominal
  • Minimum: 4.2 ohms at 40Hz

Transducer

  • 8" woofer

Enclosure Material

  • All-weather ABS plastic (paintable)
  • Metal can

Enclosure Tuning

  • Vented via three folded TRACTRIX ports

Input Connectors

  • 4-pin Euroblock

Transformer Taps

  • 70V: 70W, 35W
  • 100V: 70W, 35W
  • Bypass: 8 ohms nominal

Cutout Dimension

  • 12.5 inches

Mounting Depth

  • 10.313 inches

Overall Dimensions

  • Depth: 10.375 inches
  • Width: 13.625 inches
  • Thru-hole Width: 12.313 inches

Weight

  • 27 lbs

Docs/Instruction Links
