Metra JP-PPKT-1 Non-Amplified Metra/VIBE Audio Kit for Select Jeep Wrangler JL 2024-Up*

Features:

•  Fits 2024-up Jeep Wrangler JL
•  All-in-one premium vehicle-specific audio kit designed by Metra and VIBE
•  Designed for non-amplified vehicles

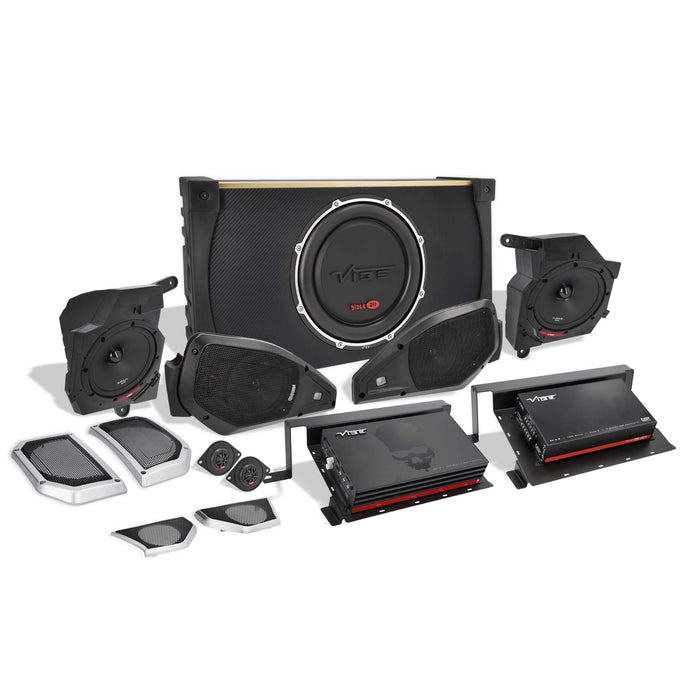

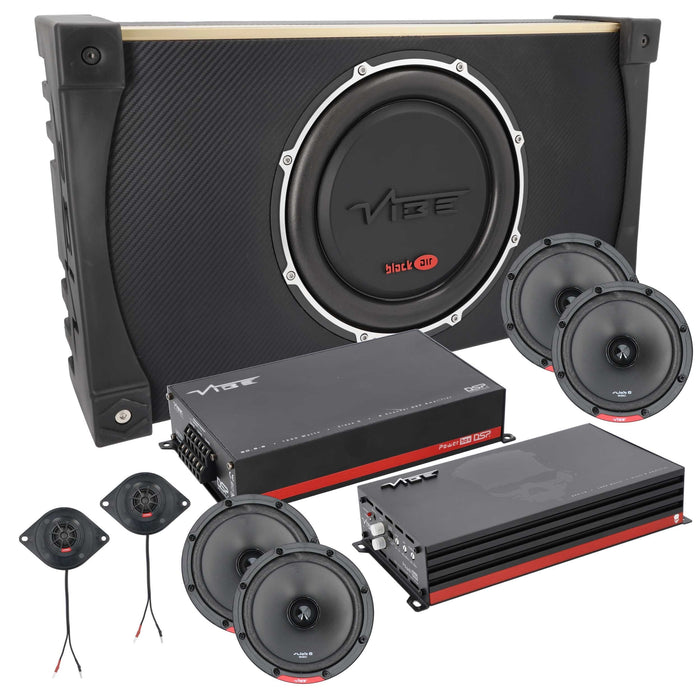

 Plug-n-play audio system includes:

•  VIBE Audio 650-watt mono-block amplifier
•  VIBE Audio 6-channel DSP and amplifier combo
•  Pair VIBE Audio 1" front dash tweeters
•  Pair VIBE Audio 6.5” front dash panel speakers
•  Pair VIBE Audio 6.5” rear soundbar speakers
•  VIBE Audio 12” subwoofer with enclosure
•  Vehicle-specific tuning for the VIBE DSP/AMP
•  Vehicle-specific amplifier installation harnesses
•  Vehicle-specific amp mounting racks
•  Detailed, step-by-step instructions

 VIBE Audio PB650.1D-V4 Amplifier

•  Max power: 1200 W
•  Power output @ 4 ohms: 325 W
•  Power output @ 2 ohms: 475 W
•  Power output @ 1 ohm: 650 W
•  Dimensions: 1.85” H x 9.05” W x 5.27" D (47mm x 230mm x 134mm)
•  Class D

 VIBE Audio PB80.6-8DSP-V3 DSP and Amplifier Combo

•  6-channel
•  Max power: 1200W
•  RMS @ 4 ohms stereo: 6x80W
•  Frequency Response: 20Hz – 20kHz
•  Dimensions: 1.9” H x 15.4” W x 5.3” D (48mm x 391mm x 134mm)
•  Mini class D
•  Pre-tuned EQ curve loaded on the DSP via computer-based software for maximum performance

 VIBE Audio SLICK-V4 1" Front Dash Tweeters

•  1” speaker size
•  Peak: 150W RMS, 50W
•  Sensitivity: 94dB
•  Frequency response: 1.5kHz - 25kHz
•  Impedance: 4 ohms

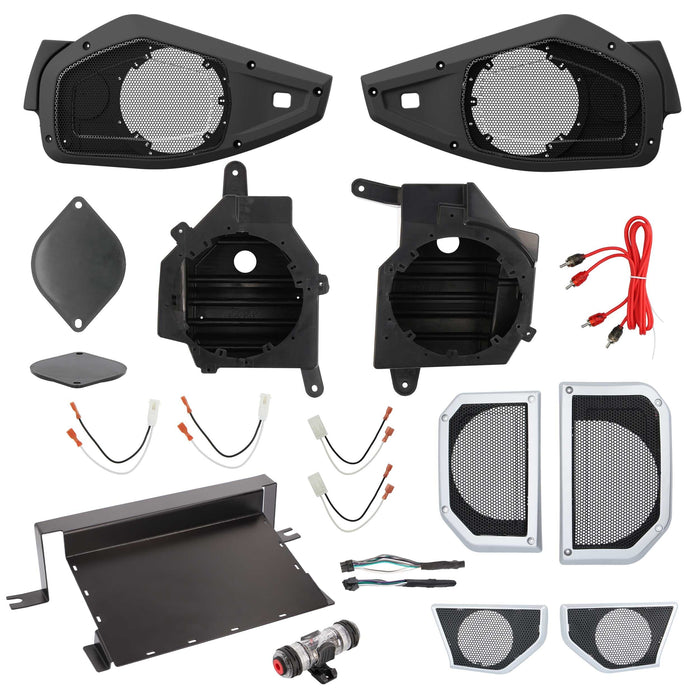

•  Metra JP-1017 speaker grilles with injection-molded plastic, silver-painted accents, and heavy-duty metal stamped steel grille inserts included
•  Metra 82-3016 dash tweeter adapter plates included
•  Metra 72-7902 dash tweeter harnesses included

 VIBE Audio OPTI6-V4 6.5” Front Dash Panel Speakers

•  6.5” speaker size
•  Peak: 270W RMS, 90W
•  Sensitivity: 94dB
•  Frequency response: 55Hz – 20KkHz
•  Impedance: 4 ohms
•  Metra JP-1020 left and right lower dash speaker grille cut-ins included
•  Metra JP-1014 lower dash sealed speaker PODs included

 VIBE Audio OPTI6-V4 6.5” Rear Soundbar Speakers

•  6.5” speaker size
•  Peak: 270W RMS, 90W
•  Sensitivity: 94dB
•  Frequency response: 55Hz – 20KkHz
•  Impedance: 4 ohms
•  Metra JP-1019 overhead speaker adapter cut-ins included
•  VIBE Audio SLICK1-V4 included

 VIBE Audio BAMIT12-V4 12” Sealed Enclosure Subwoofer

•  Peak: 900W, RMS 300W
•  Metal speaker grille included
•  Vehicle-specific brackets for Jeep® tailgate mounting included
•  Sensitivity: 85dB
•  Impedance: Dual 2 ohm

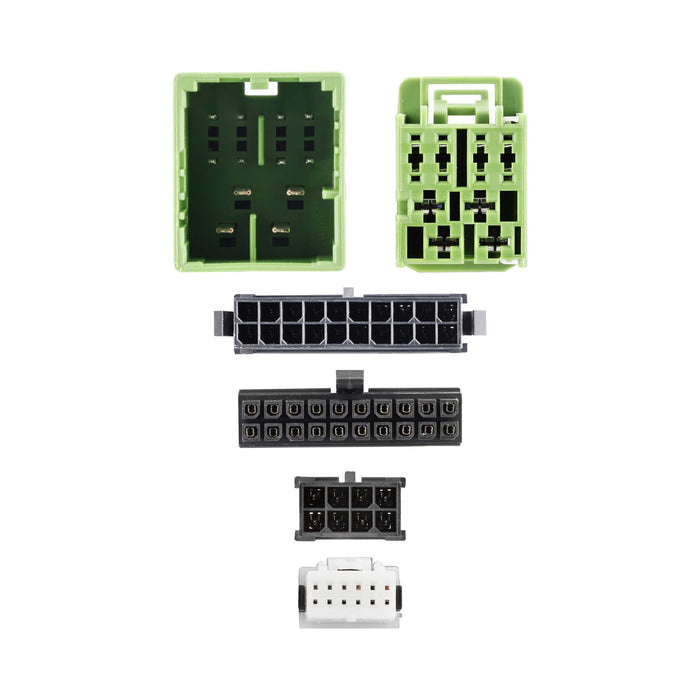

 Metra Vehicle-Specific Amplifier Interface

•  Plug-n-play integration harnessing
•  Simple behind-the-radio installation
•  T-Harness and OE connectors
•  Connects via the OE speaker wire to reduce wiring
•  Plugs directly into the all-in-one VIBE DSP amplifier

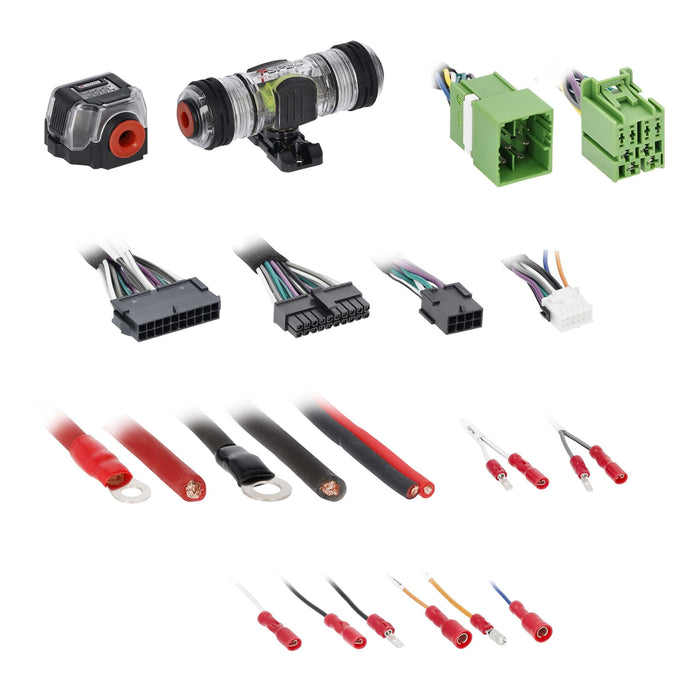

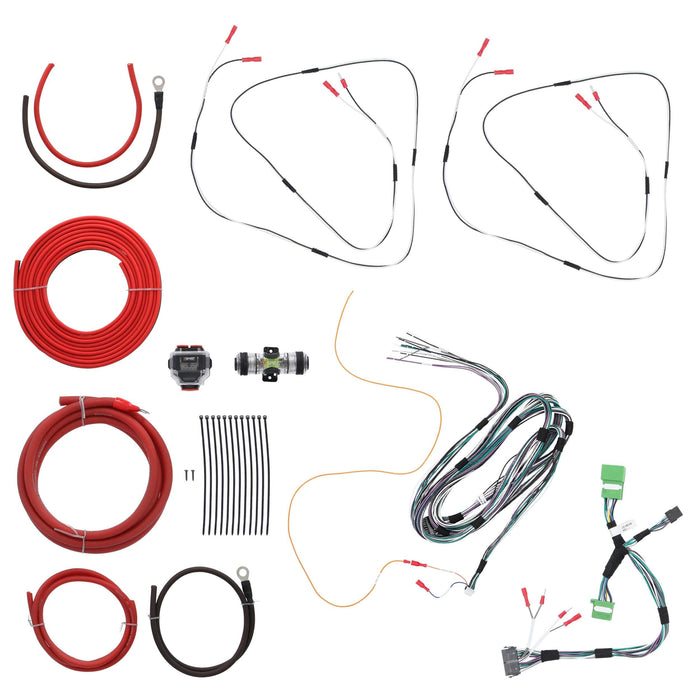

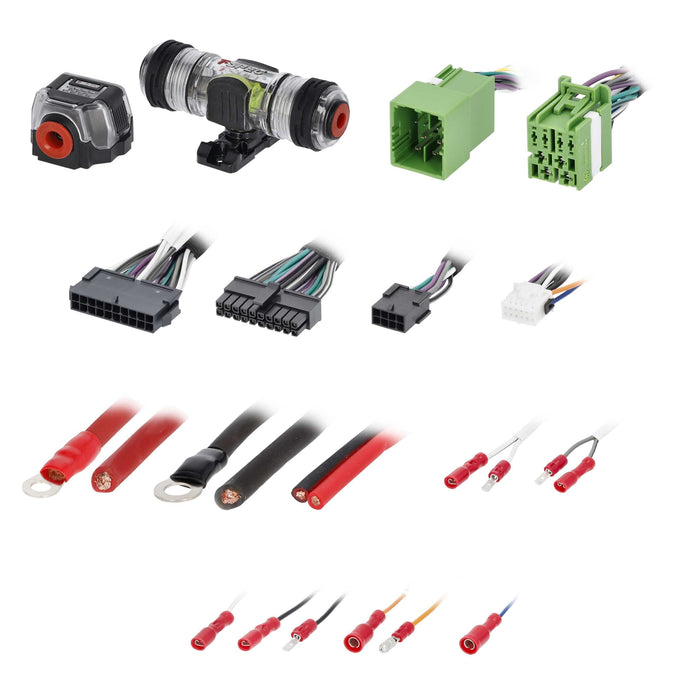

Metra Amplifier Installation Harnesses

•  Vehicle-specific wiring
•  9.5' 4GA OFC power wire
•  8’ 8GA OFC power wire
•  12’ 12GA OFC speaker wire
•  Water-tight fuse holder
•  100A MANL fuse
•  Distribution block
•  Mounting hardware included

Metra Vehicle-specific Amp Mounting Racks

•  Vehicle-specific design
•  Black powder-coated mounting plates
•  Under-the-seat amp racks designed for small form-factor amplifiers
•  T-Spec VMANL fuse holder included

Vehicle Applications

Jeep

• Wrangler JL 2024-Up* Non-Amplified

Visit Metraonline.com for more detailed information about the product and download the latest Metra Vehicle Application Guide to find other vehicle specific products.

Docs/Instruction Links

• Product Information Sheet
• Instruction Manual
