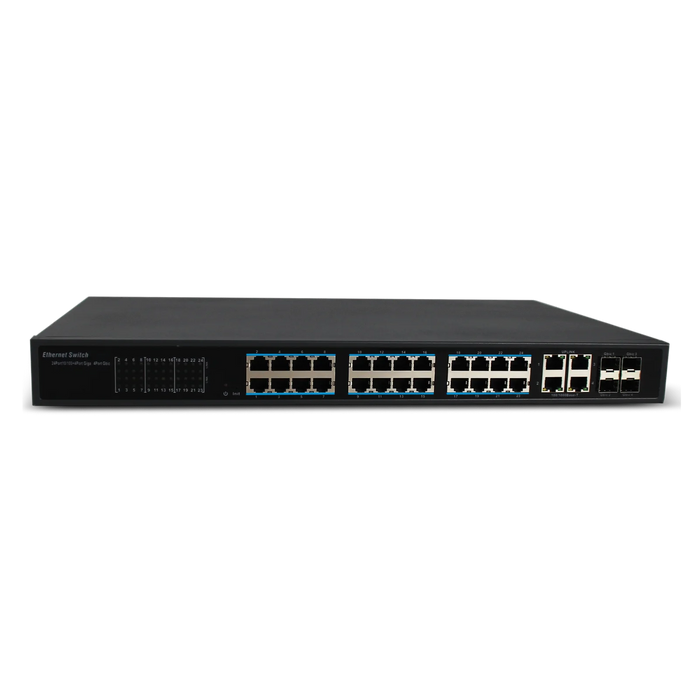

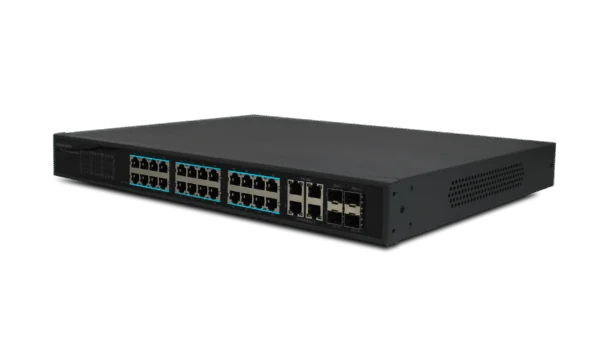

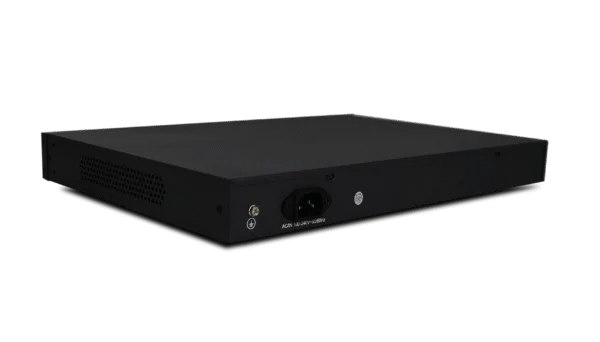

HS-RT2444HC 24-Port 10/100M + 4-PORT 10/100/1000M WAN + 4-PORT SFP 370Watts Web managed PoE Switch

HS-RT2444HC 24-Port 10/100M + 4-PORT 10/100/1000M WAN + 4-PORT SFP 370Watts Web managed PoE Switch
Availability:
in stock, ready to be shipped
$341.95 - $341.95
$341.95
$341.95 - $341.95
$341.95
🚚 Order within the next 2 hours, 15 minutes for delivery by 28 Jun, 2026.

HS-RT2444HC 24-Port 10/100M + 4-PORT 10/100/1000M WAN + 4-PORT SFP 370Watts Web managed PoE Switch

  • 24 × 10/100 Mb/s PoE ports (802.3af/at), plus 4 × 10/100/1000 Mb/s uplink and 4 × 1000 Mb/s SFP ports.
  • PoE power budget: 400 W (max power supply of the machine).
  • Extend mode: 100 m by default; up to 250 m on PoE ports when enabled; WAN1–WAN4 100 m.
  • Standards: IEEE 802.3 (10BASE‑T), 802.3u (100BASE‑TX), 802.3x Flow Control, 802.3af/at PoE.
  • Forwarding: store‑and‑forward; backplane bandwidth 56 Gbps; MAC address list 2K.
  • Management: VLAN (Access/Trunk/Hybrid), port isolation, speed limit, link aggregation access direction, storm control; CLI (serial), Telnet, traps (cold/warm start, link up/down).
  • Default Web UI: http://192.168.2.1 (user: admin, password: admin).
  • Protection: ESD (air 8 kV, contact 4 kV), surge protection (RJ45 common 4 kV / differential 2 kV; power board common 2 kV / differential 1 kV).
  • LEDs: Link/Act/100 Mb/s, PoE status, power, extender indicator.
  • Environment: −10 °C to 55 °C operating; −40 °C to 85 °C storage; 5–90% RH non‑condensing.
  • Certifications: CE, FCC.
  • Size & Weight: 440 × 284 × 44 mm; 3.1 kg.

Specifications:

Ports & Interfaces

  • PoE LAN: 24 × 10/100 Mb/s RJ‑45 (End‑Span: 1/2+, 3/6−).
  • Uplinks: 4 × 10/100/1000 Mb/s RJ‑45 (WAN1–WAN4).
  • SFP: 4 × 1000 Mb/s SFP ports.
  • Medium: Cat5/5e/6 standard network cable.

Switching Performance

  • Switching standards: IEEE 802.3 10BASE‑T; IEEE 802.3u 100BASE‑TX; IEEE 802.3x flow control.
  • Forwarding mode: store‑and‑forward.
  • Forwarding rate: 10BASE‑T 14,880 pps; 100BASE‑T 148,800 pps; 1000BASE‑T 1,488,000 pps.
  • MAC address list: 2K; backplane bandwidth: 56 Gbps.

PoE

  • Standard: IEEE 802.3af/at PoE+.
  • Per‑port: adaptive af/at; power priority mechanism.
  • Total power: up to 400 W.

Transmission Distance

  • Default (extend OFF): 100 m on ports 1–24.
  • Extend ON: up to 250 m on ports 1–24.
  • WAN1–WAN4: 100 m.

Management & Software

  • Web GUI: IP 192.168.2.1 (admin/admin).
  • Port features: speed limit, isolation, aggregation access direction; MAC learning/aging; IEEE 802.3x full‑duplex & half‑duplex backpressure.
  • VLAN: Access/Trunk/Hybrid; partitioning by port, protocol, and MAC.
  • Storm control: unicast, unknown multicast, broadcast.
  • Mgmt methods: serial CLI, Telnet, SNMP‑style traps (cold/warm start, link up/down); two levels of settings.

Indicators & Protection

  • LEDs: Link/Act/100 Mb/s; PoE status; power; extender indicator.
  • ESD: air 8 kV; contact 4 kV.
  • Surge: RJ‑45 common 4 kV / differential 2 kV; power board common 2 kV / differential 1 kV.

Power

  • Input: AC 100–240 V, 50–60 Hz (power adapter).

Environmental & Physical

  • Operating: −10 °C to 55 °C; storage: −40 °C to 85 °C; humidity: 5–90% RH non‑condensing.
  • Certifications: CE, FCC.
  • Dimensions: 440 × 284 × 44 mm; weight: 3.1 kg.
