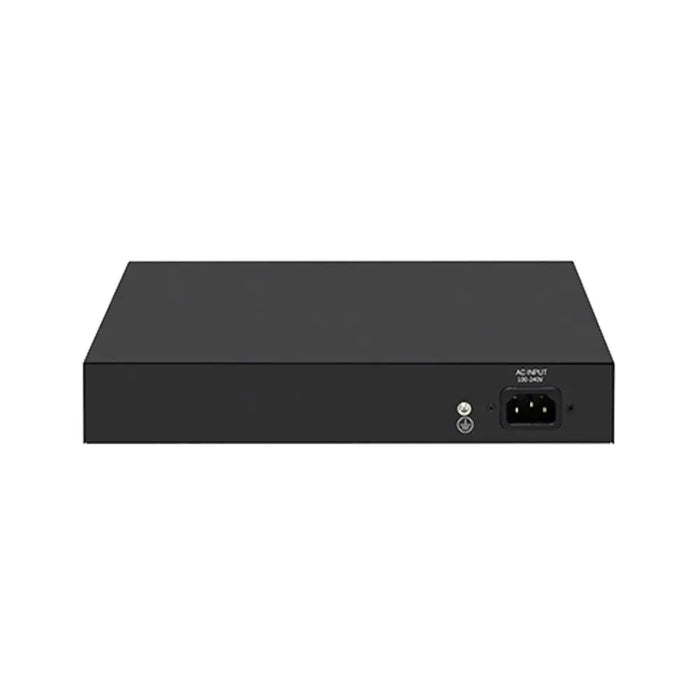

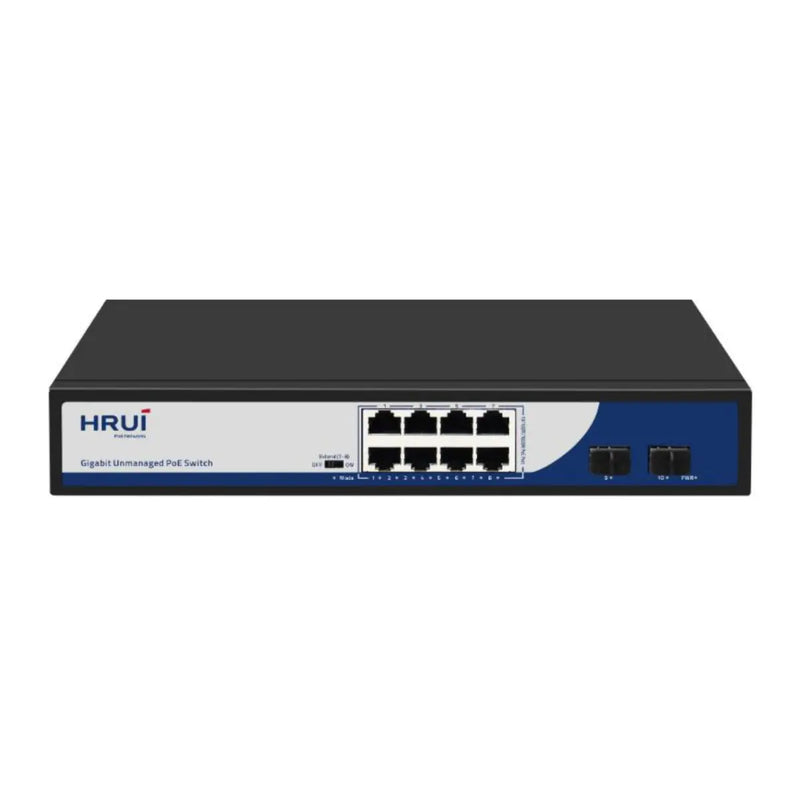

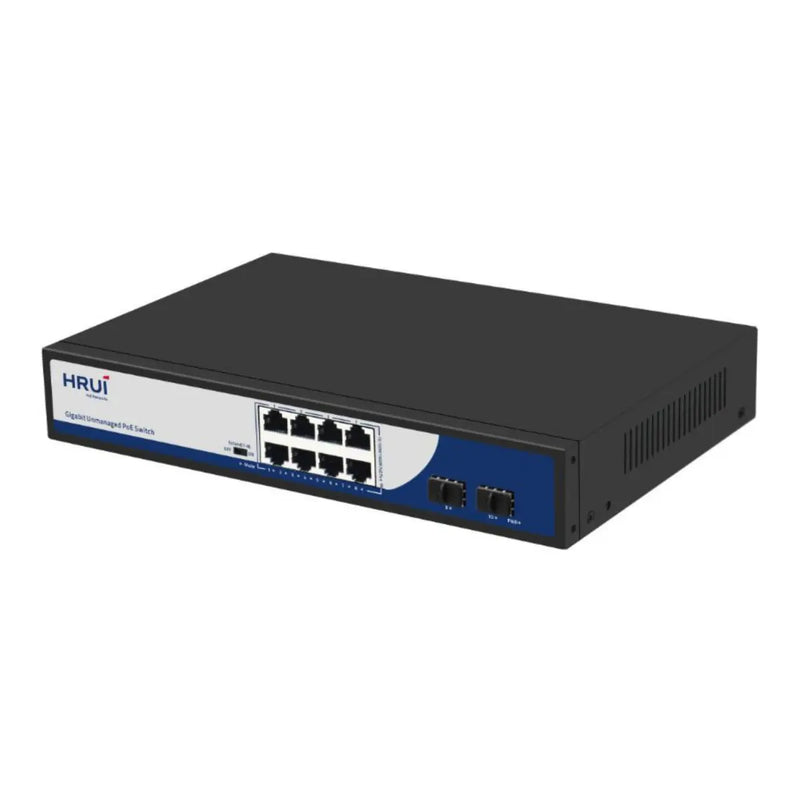

10-Port Gigabit Intelligent PoE Switch HR901-AFG-82NS with 2 Gigabit Uplink Ports

10-Port Gigabit Intelligent PoE Switch HR901-AFG-82NS with 2 Gigabit Uplink Ports The Wires Zone
In Stock
$105.60 - $105.60
$105.60
$105.60 - $105.60
$105.60

10-Port Gigabit Intelligent PoE Switch HR901-AFG-82NS with 2 Gigabit Uplink Ports

Gigabit intelligent PoE switch, with 8*Gigabit PoE ports + 2*Gigabit uplink SFP ports, IEEE 802.3af/at, bandwidth 20Gbps, total power 120W, surpport port isolation and 250m transmission, suitable for -10~50℃ wide temperature environment

Features:

  • 8*Gigabit PoE ports + 2*Gigabit uplink SFP ports
  • IEEE 802.3af/at standard, total power 300W
  • One-click smart dial mode, support port isolation, 250 meters extend
  • Panel indicators to monitor working status and help fault analysis
  • Suitable for -10~50℃ wide temperature environment

Specification:

I/O Interface

  • Power: Input: AC 100-240V
  • Ethernet: 8 Port 10/100/1000M PoE / 2 Port 1000M SFP Uplink

Performance

  • Switching Capacity: 20Gbps
  • Throughput: 14.88Mpps
  • Packet Buffer: 2Mbit
  • MAC Address: 2K
  • Jumbo Frame: 9216Kbytes
  • Transfer Mode: Store and forward
  • MTBF: 100000 hour

Standard

  • Network protocol
  • IEEE802.3 (10Base-T)
  • IEEE802.3u (100Base-TX)
  • IEEE802.3ab (1000Base-TX)
  • IEEE802.3z (1000Base-FX)
  • IEEE802.3x (Flow control)

PoE Protocol

  • IEEE802.3af (15.4W)
  • IEEE802.3at (30W)

Industry Standard

  • EMI: FCC Part 15 CISPR (EN55032) class A
  • EMS: EN61000-4-2 (ESD)
  • EN61000-4-4 (EFT)
  • EN61000-4-5 (Surge)

Network Medium

  • 10Base-T: Cat3, 4, 5 or above UTP(≤100m)
  • 100Base-TX: Cat5 or above UTP(≤100m)
  • 1000Base-TX: Cat5 or above UTP(≤100m)

Optical

  • MultiMode Fiber: 850nm, 1310nm,  Transmission Distance:  550m/2Km
  • Single-Mode Fiber: 1310nm, 1550nm,  Transmission Distance:  20/40/60/80/100/120km

Security Certificate
CE, FCC, RoHS

Working Environment

  • Working Temperature: -20~50°C
  • Storage Temperature: -40~85°C
  • Working Humidity: 10%~90%，non-condensing
  • Storage Temperature: 5%~90%，non-condensing
  • Working Height: Maximum 10,000 feet
  • Storage heigh: Maximum 10,000 feet

Indication

  • LED Indicators: PWR(power supply), mode (DIP), 1-10(Link&Data)
  • DIP Switch: Extend ON: Link extension mode, 7-8 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M
  • Extend OFF: Normal mode, all port can communicate with each other
