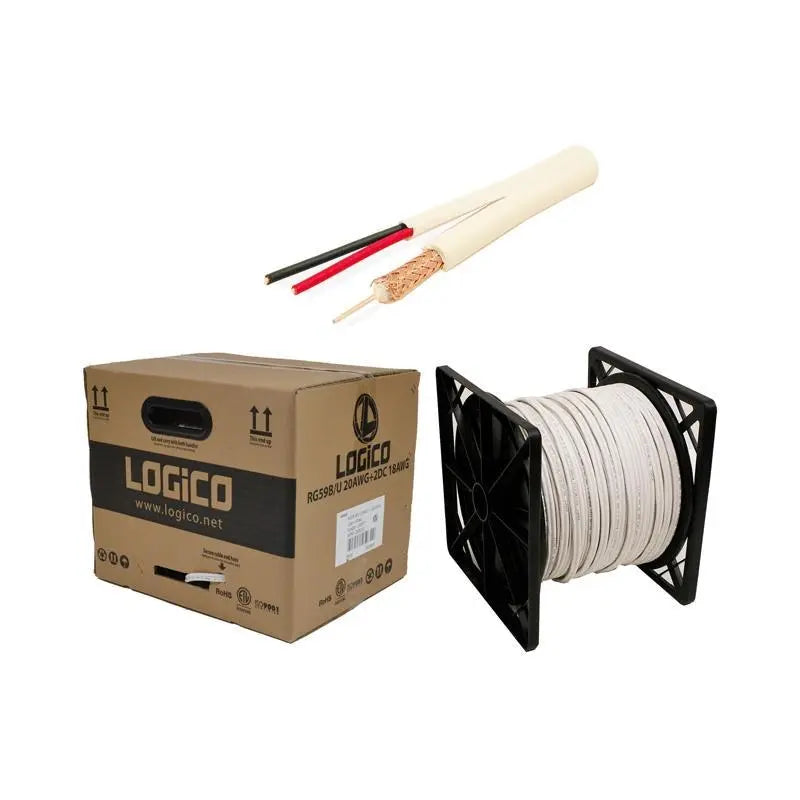

1000 ft White RG59 Siamese Cable 20 AWG + 18/2 Security Camera Wire

by Logico
Out of Stock
Checked 30-Day Money-Back Guarantee
Checked Fast, Free Shipping on all US Orders
Checked Live Customer Service Representative
Checked Buy Online, Free Local Pickup (Contact us for Availability)

California customers:
Please click here for your Proposition 65 warning.

RG59 Type Coaxial Cable with One Pair of 18 AWG Power Cable
20 AWG Solid Conductor
Indoor Cable Application for CCTV
RoHS Compliant, ISO9001:2008

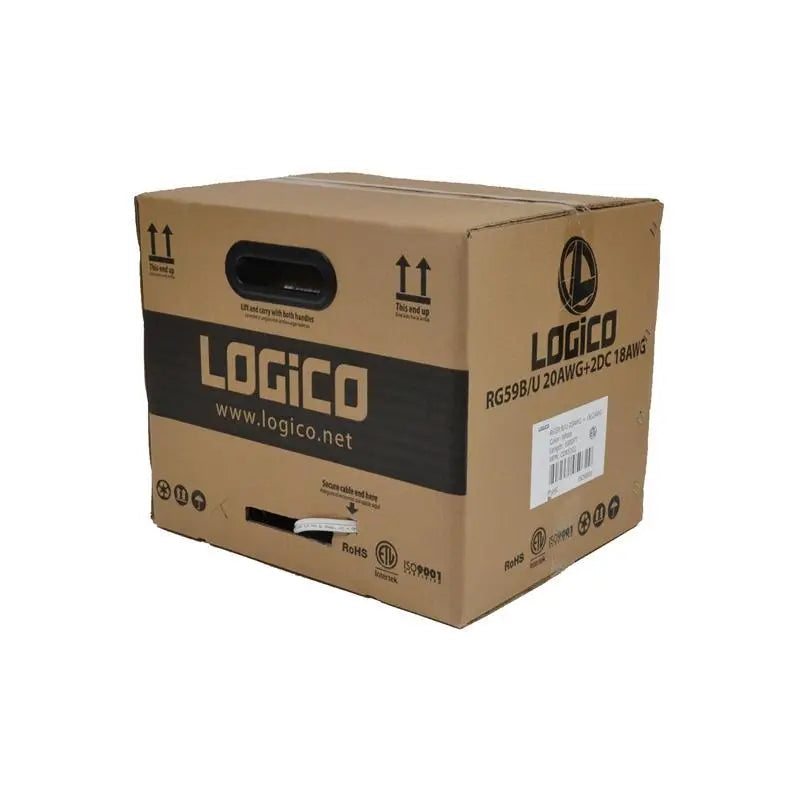

Reel In Box
Authorized Dealer

Conductor (AWG): 20 AWG (0.81mm)
Conductor Material: Copper Clad Steel (CCS)
Insulation Material: Foam PE
Insulation Diameter: 3.66mm
Shield (Braid): 9mm x 16mm x 0.12mm
Sheild (Coverage): 95%
Outer Jacket (Diameter): 6.0mm
Outer Jacket Material: Polyvinyl Chloride (FR-PVC)
Outer Jacket Color: White
Conductor: Electroplated CCA
Conductor Diameter: 7mm x 0.38mm (18 AWG)
Conductor Insulation: PVC (Black, Red)
Conductor Insulation Diameter: 1.70mm
Conductor Jacket Material: PVC
Conductor Jacket Diameter: 4.5mm

Electrical Characteristics
Sparker Test:
Impedance: 75±3 Ohms
Capacitance: 53±3pF/m
Velocity of Propagation: 83%
Temperature Rating: -30ºC to 70ºC
