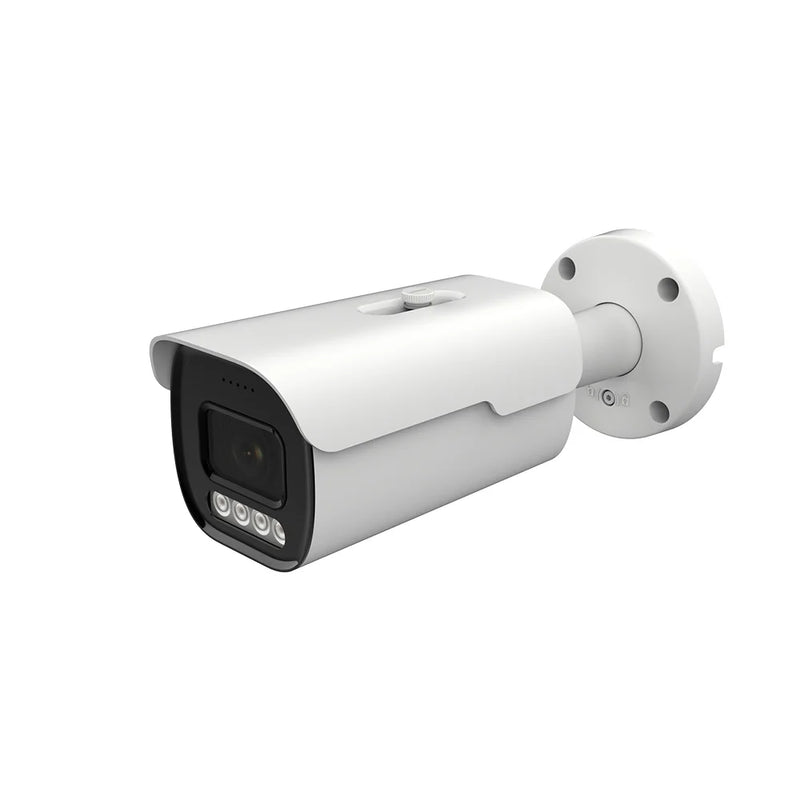

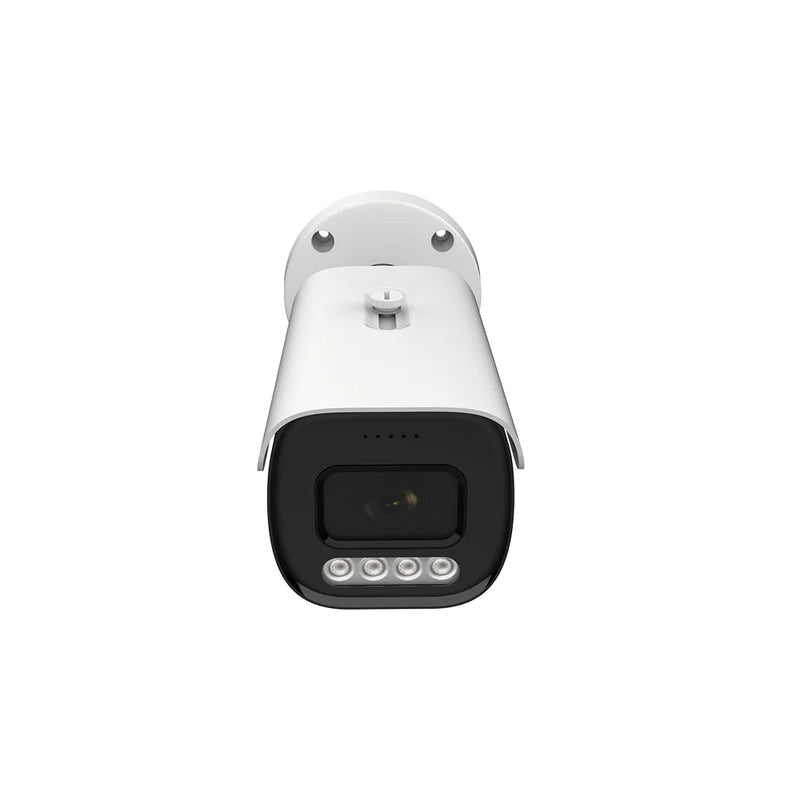

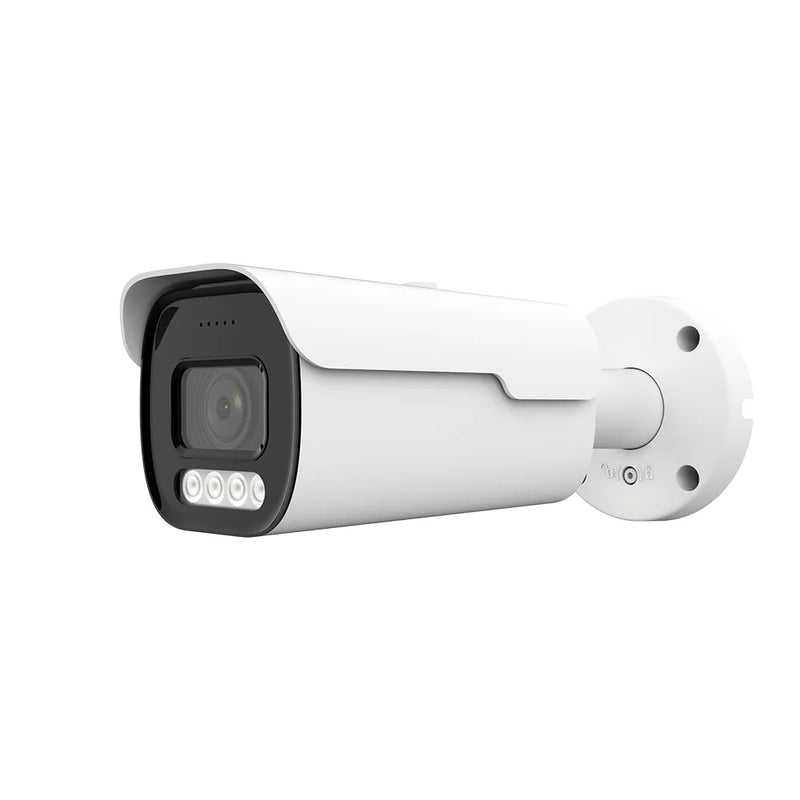

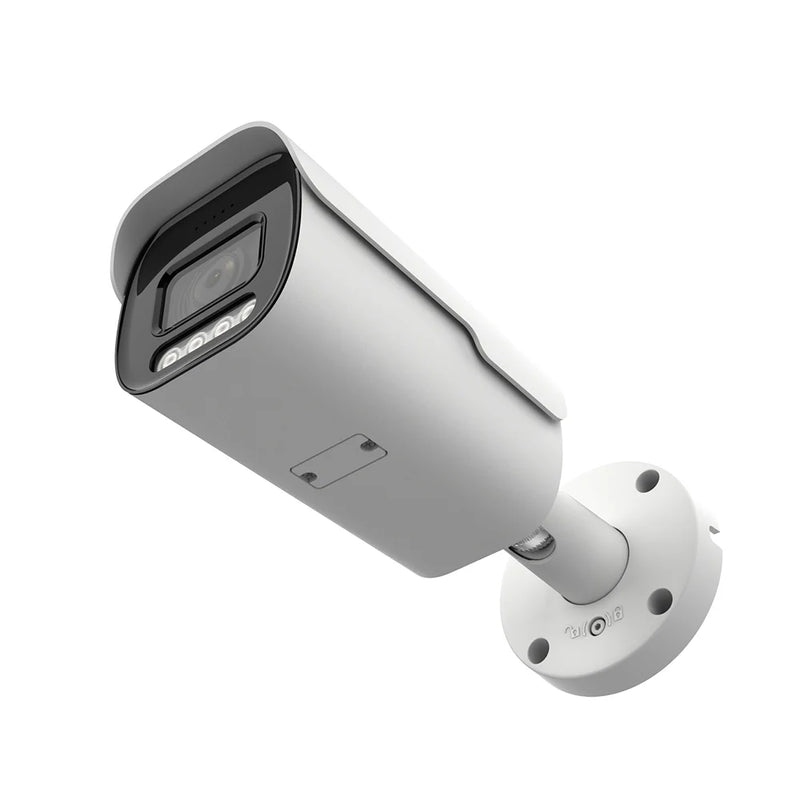

8MP HT-B8MBESLMZ-FC Bullet HD Analog Camera Full Color Smart-IR, UTC, OSD, With IR-CUT, AHD/TVI

8MP HT-B8MBESLMZ-FC Bullet HD Analog Camera Full Color Smart-IR, UTC, OSD, With IR-CUT, AHD/TVI

1/2.8″ SONY Starvis CMOS sensor, 8MP/4K, WDR, 3DNR, Defog, Smart-IR, UTC, OSD, With IR-CUT, AHD/TVI: 8M@15fps, 5M@20fps, 4M/2M@30fps; CVI: 8M@15fps, 4M/2M@30fps;
LED: 3015U*4, Warm white (4000K) up to 40m

Specifications

• Model NO. - HT-B8MBESLMZ-FC
• Video Output Mode- AHD: 8M@15fps, 5M@20fps/12.5fps, 4M@30fps/25fps/15fps, 2M@30fps/25fps; TVI: 8M@15fps/12.5fps,5M@20fps/12.5fps, 4M@30fps/25fps/15fps, 2M@30fps/25fps; CVI: 8M@15fps/12.5fps,5M@20fps/12.5fps, 4M/2M@30fps/25fps

Camera

• Image Sensor - 1/2.8" SONY Starvis Back-illuminated CMOS sensor
• Image Resolution - 8M:3840*2160 5M:2592*1944 4M:2560*1440 2M:1920*1080
• TV System - PAL/NTSC
• Minimun Illumination - Color : 0.005 lux@F2.0, 0 Lux with white light
• Scanning System - Progressive Scan

Lens

• Focus Length - 2.7-13.5mm Motor Zoom
• Focus Control  - Auto
• Lens Type -  Auto

Night Vision

• IR Cut Filter - YES
• Infrared LED - NO, Suport Warm white (4000K)
• Infrared Distance - up to 40m
• IR Status - AGC Auto Control

Camera Features

• Starlight - N/A
• Day/Night - YES/NO
• OSD Menu - YES
• WDR - YES
• UTC - YES
• Noise Reduction - 3DNR
• Coaxial Audio - NO
• White Balance - AUTO / MANUAL
• Gain Control -  AUTO

General

• Housing - Metal, IP67
• Bracket - NO
• Operation Temperature - -10℃ ~ +60℃ RH95% Max
• Storage Temperature - -20℃ ~ +60℃ RH95% Max
• Power Source - DC12V±10%, 750mA
• Dimension - 268(W) x 95(H) x 88(D)mm
• Weight - 1500g

Docs/Instruction Links

• Data Sheet
