Audioflow 3S-2Z 2 Way Speaker Switch / Selector Box Smart Wi-Fi Control

Audioflow 3S-2Z 2 Way Speaker Switch / Selector Box Smart Wi-Fi Control
Availability:
Low stock
$229.00 - $229.00
$229.00
$229.00 - $229.00
$229.00

Audioflow 3S-2Z 2 Way Speaker Switch / Selector Box Smart Wi-Fi Control with Audioflow app, Amazon Alexa Voice Assistant and Contact Closure connections

Connect two pairs of speakers to your stereo amplifier

Audioflow is perfect for connecting ceiling speakers, on-wall and in-wall speakers, bookshelf speakers and outdoor speakers to a single amplifier output.

This two way switch is perfect for open plan living spaces such as Kitchen / Dining or perhaps Bedroom / En-Suite or adding Garden speakers to your Living Room system for example.

Speaker Impedance

This two way switch is in series, so if you have a pair of 6Ω speakers on Zone A and a pair of 8Ω speakers on Zone B, your amplifier would see 14Ω if you have both zones on at the same time.

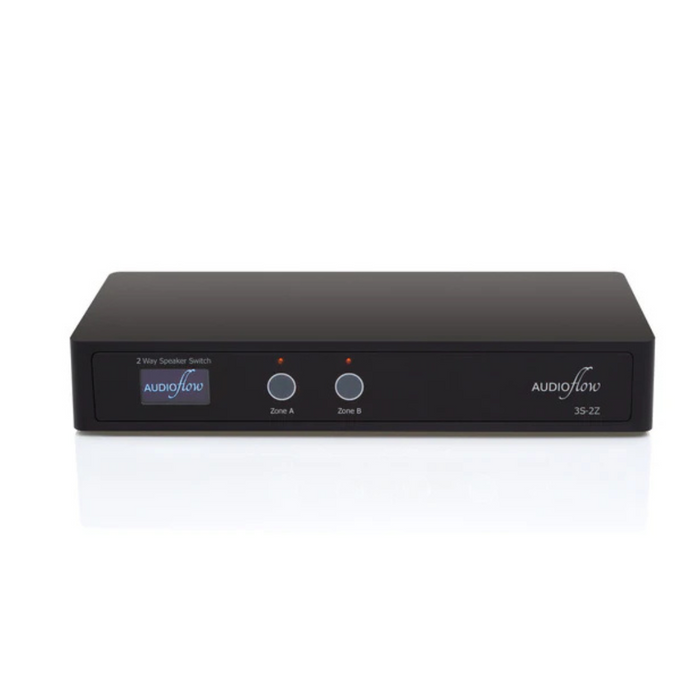

  • Control with the touch buttons on the front
  • Control via Wi-FI with the Audioflow app for iOS / Android
  • Control with Amazon Alexa Voice Assistant
  • Control with Contact Closure connections
  • Rated for amplifier outputs up to 300W at 8Ω
  • Designed and Manufactured in the UK



Specifications

  • Description - 2 Way Smart Speaker Switch / Selector
  • Model Number - 3S-2Z
  • UPC / EAN-13 - 5060739700003
  • Product Dimensions,- Weight H38 x W216 x D100 mm, 286g
  • Boxed Dimensions, Weight - H90 x W355 x D127 mm, 687g
  • Includes Power Supply, Connection Plugs, Cable Ties, Quick Start Guide
  • Outer Box -12pcs, H275 x W565 x D375 mm, 9.5kg
  • Power Input - 5V DC 1A, 2.1 x 5.5mm Barrel Plug, Centre Positive
  • Power Supply - 100-240V 50/60Hz, 1.8m Lead, UK/EU/USA/AUS Plugs
  • Switching Relays - Max 8A @ 250V AC
  • Amplifier Power Max - 300W @ 8Ω
  • Cable Connection - Max 2.5mm2 or 14AWG
  • Speaker System Design - Series Switching
  • All Zones Off - Amplifier Protection 200Ω Dummy Load
  • Wi-Fi Support - 2.4GHz 802.11b/g/n, WPA/WPA2 PSK
  • Supported OS (Provisioning) - Android 6.0+ (Google Play Store) / Apple iOS 13.0+ (App Store)

Integrate with

  • Contact Closure
  • Amazon Alexa
  • MQTT / Home Assistant
  • Crestron Home
  • Rithum
  • Control4
  • Nice / ELAN
  • uControl
  • RTI
  • URC
