Axxess AXAMP-CH5 Amplifier Integration Interface For Select Chrysler Models 2013-2023

This vehicle-specific 6-channel amplifier integration interface from Axxess enables the installation of aftermarket amplifiers for enhanced sound quality while retaining the vehicle’s original radio and features. This interface includes an external bass knob for additional audio output level adjustments.

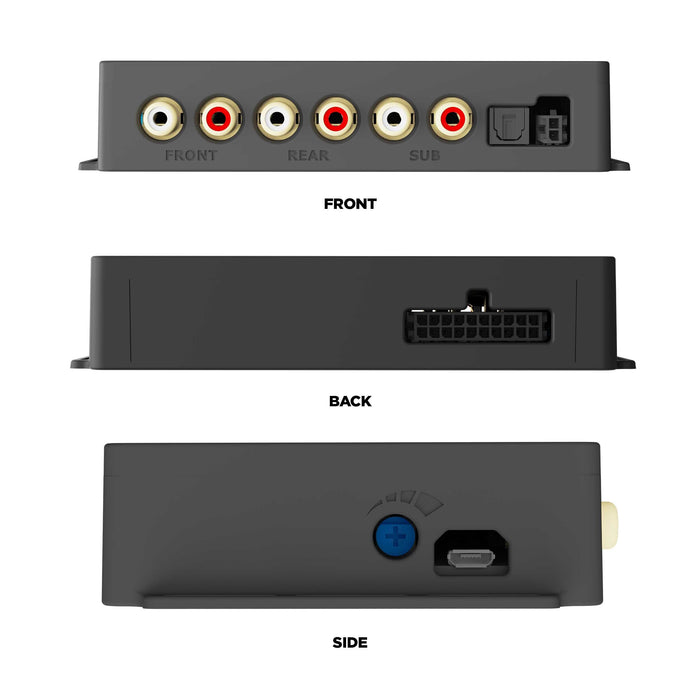

  • Provides 6 channels of 5-volt RMS audio
  • Designed for amplified and non-amplified systems
  • Non-fading full range output (channels 5 and 6)
  • Simple plug-n-play installation behind the radio
  • No programming required
  • Backup chime level adjustment
  • Dual-colored LED feedback light
  • Input: 50W per channel
  • Amp turn on trigger (DC): 250mA
  • 2-channel S/PDIF out (front)

Vehicle Applications

CHRYSLER

  • 200 2015-2017 Passenger Dash, Up High. (Behind Glovebox).
  • 300 2015-2023 Drivers Dash Up High. (Above Knee Bolster Panel).
  • Pacifica 2021-2022 without separate screen Passenger Kick Panel.
  • Pacifica 2017-2020 Passenger Kick Panel.

DODGE

  • Challenger 2015-2023 Driver Kick Panel.
  • Charger 2015-2023 Driver Kick Panel.
  • Durango 2021-2022 without separate screen Passenger Kick Panel.
  • Durango 2014-2020 Driver Side Trunk, Behind Wheel Well.
  • Viper 2015-2017 Passenger Side Trunk Above Wheel Well.

Fiat

  • 500× 2015-2017 Right rear corner panel

JEEP

  • Cherokee 2014-2020 Passenger’s Kick Panel.
  • Compass 2017-2021 Left rear corner panel
  • Gladiator 2020-2023 Driver Knee Bolster.
  • Grand Cherokee 2014-2022 Driver Side Trunk Area.
  • Renegade 2015-2019 Left rear corner panel
  • Wrangler (JL) 2018-2023 Driver Knee Bolster.

RAM

  • 1500/2500/3500 2013-2021 Driver Kick Panel.

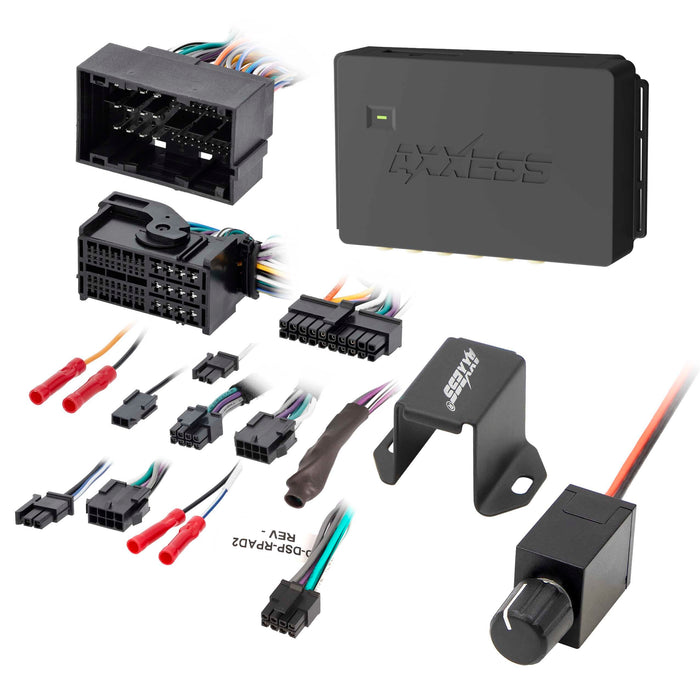

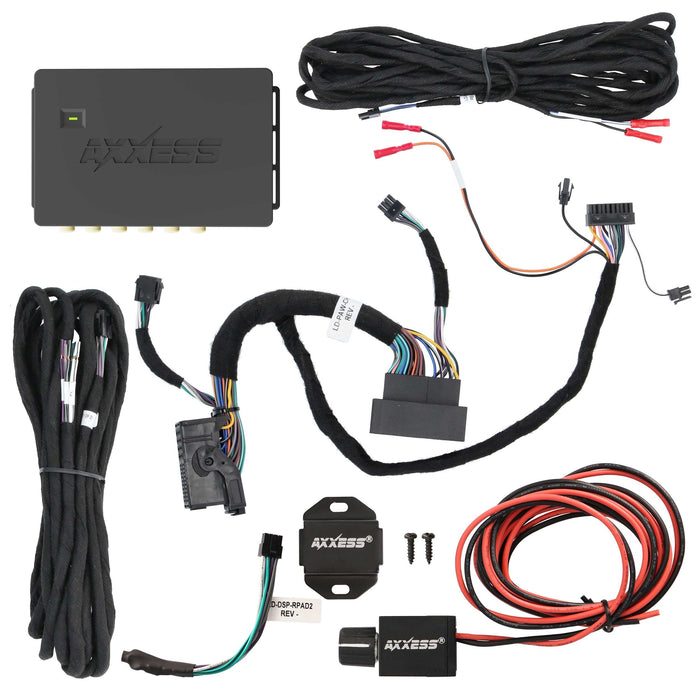

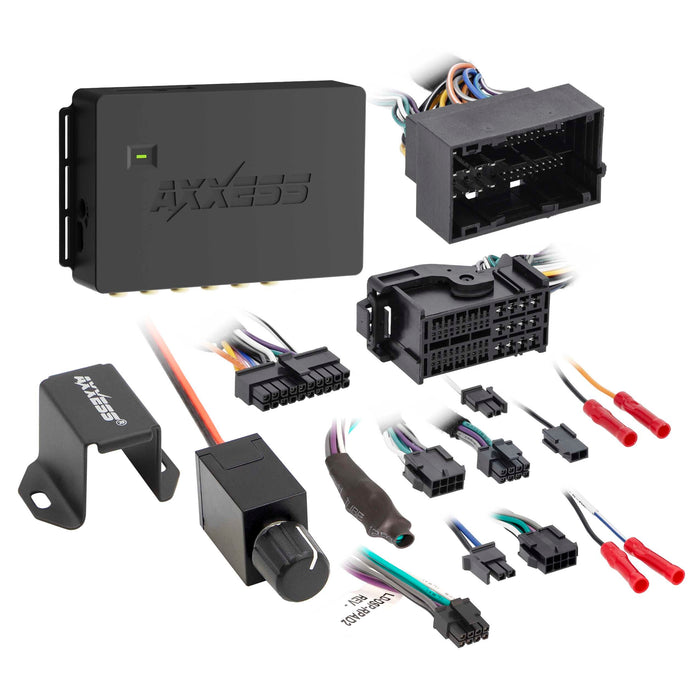

Includes:

  • Amplifier integration interface
  • Bass knob

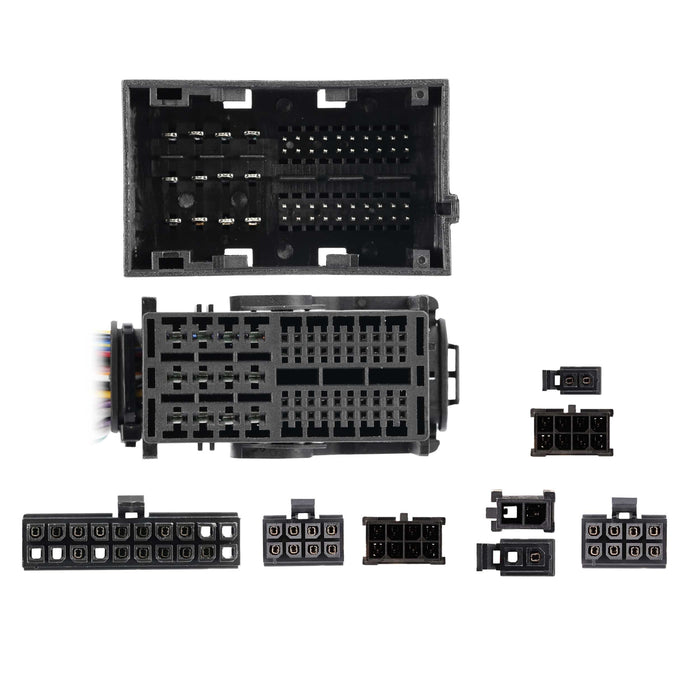

  • Extension harnesses
  • Vehicle-specific side harness
  • 2 resistor pads
  • Instruction sheet

Visit AxxessInterfaces.com for more detailed information about the product and enter your vehicle year, make and model into the vehicle fit guide to find other vehicle specific products.
