Axxess AXDSPX-CH5 Chrysler DSP Interface With Pre-Wired Harness 2013-2023

Axxess AXDSPX-CH5 Chrysler DSP Interface With Pre-Wired Harness 2014-Up Axxess
Availability:
Low stock
$0.00 - $0.00
$0.00
$341.95
$341.95 - $341.95
$341.95

Axxess AXDSPX-CH5 Chrysler DSP Interface With Pre-Wired Harness 2013-2023

Overcome the factory radio’s built-in “audio processing” with our patented digital signal processor, or “DSP”, vehicle-specific packages. Factory radios have built-in sound processing designed to make your mass-produced factory speakers sound as good as they can without breaking. This means that if you upgrade to aftermarket speakers, your factory radio will process the sound according to the factory settings and your system just won’t sound as great as you hoped it would. To remove the limitations of the factory radio and get clean signals for aftermarket audio gear, you will need a sound processor like our line of patented DSP products. Our DSP is unlike any other on the market offering not only serious sound improvements but retains many of the features commonly lost when upgrading a sound system.

Vehicle-specific Features:

  • Designed for amplified and non-amplified systems

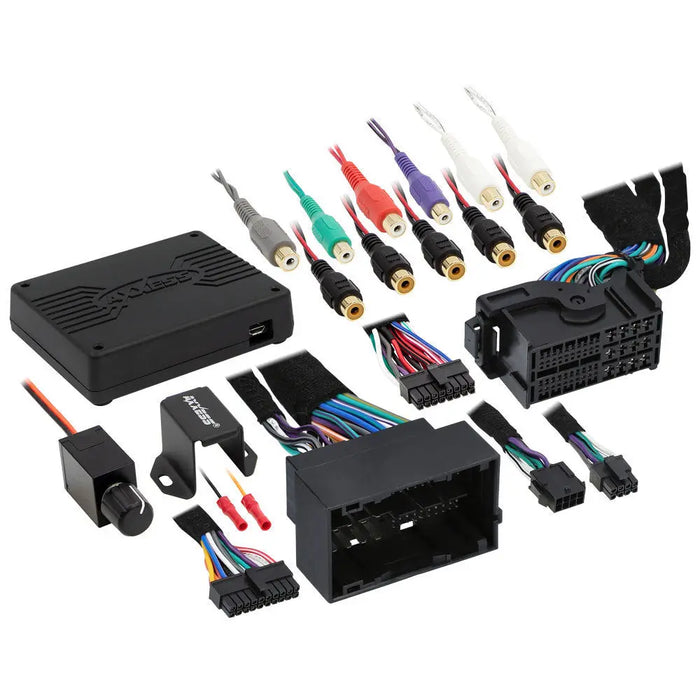

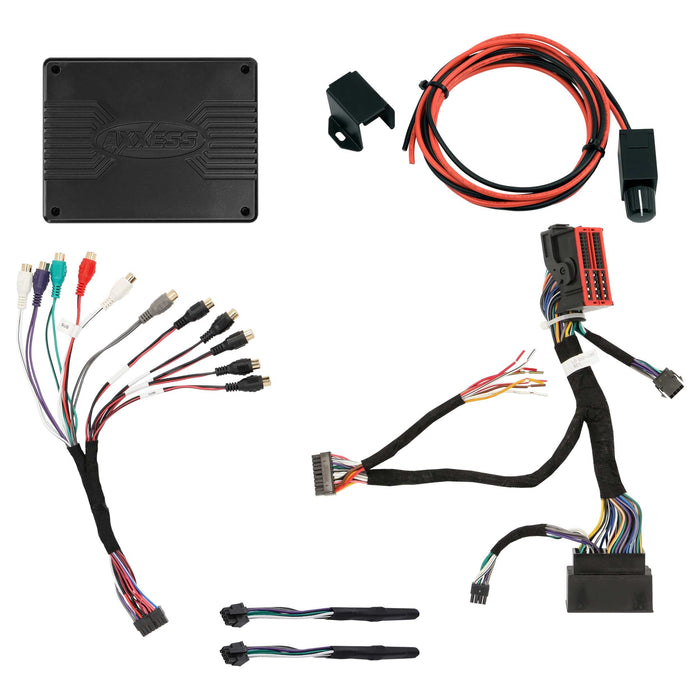

  • Package includes the AXDSP-X interface and vehicle-specific T-harness
  • Install location: At the factory radio
  • Micro “B” USB updatable


Specifications:

  • Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel with high pass, low pass, and bandpass filters
  • 6 inputs and 10 individually assignable outputs
  • Selectable slope (12, 24, 36, or 48db per octave)
  • Selectable Graphic or Parametric EQ
  • Independent equalization on each of the 10 outputs
  • Each channel can be delayed independently up to 10 ms
  • Chime control for Chrysler vehicles
  • Clipping detection and limiting circuits
  • Bass knob included
  • Retains OE voice prompts (Uconnect®) if vehicle is equipped
  • Retains factory chimes, including parking sensor and cross path detection alerts if vehicle is equipped
  • Settings adjusted wirelessly in the free AX-DSP-XL app available for smartphones and tablets
  • Easy behind the radio installation
  • Can be used with factory and aftermarket radios
  • Read, write, and store configurations for future recall
  • Password protect feature available in the app

Vehicle Fitment:

Chrysler

  • 200 2015-2017 , Passenger Dash, Up High. (Behind Glovebox).
  • 300 2015-2023 , Drivers Dash Up High. (Above Knee Bolster Panel).
  • Pacifica 2021-2022 , without separate screen , Passenger Kick Panel.
  • Pacifica 2017-2020 , Passenger Kick Panel.

DODGE

  • Challenger 2015-2023 , Driver Kick Panel.
  • Charger 2015-2023 , Driver Kick Panel.
  • Durango 2021-2022 , without separate screen , Passenger Kick Panel.
  • Durango 2014-2020 , Driver Side Trunk, Behind Wheel Well.
  • Viper 2015-2017 , Passenger Side Trunk Above Wheel Well.

Fiat

  • 500× 2015-2017 , Right rear corner panel

JEEP

  • Cherokee 2014-2020 , Passenger’s Kick Panel.
  • Compass 2017-2021 , Non-Amplified Models , Left rear corner panel
  • Gladiator 2020-2023 , Driver Knee Bolster.
  • Grand Cherokee 2014-2022 , Driver Side Trunk Area.
  • Renegade 2015-2019 , Left rear corner panel
  • Wrangler (JL) 2018-2023 , Driver Knee Bolster.

RAM

  • 1500/2500/3500 2013-2021 , Driver Kick Panel.

Visit AxxessInterfaces.com for more detailed information about the product and enter your vehicle year, make and model into the vehicle fit guide to find other vehicle specific products.
