Plays USB, MP3, WMA, FM/AM
Compatible with Audio out from Smartphones and MP3 Players
USB Charging
Subwoofer Level Control
Weather Proof 60 Watts x 4 Max Power
Bass/Treble/Balance/Fader
RDS Tuner
Switchable US and European Tuner and Preset built-in EQ
USB, Aux, Inputs
Audio Front, Rear / Sub Pre Amp Outputs
Bluetooth Audio Streaming - play music and apps like Spotify/Pandora wirelessly
Authorized Dealer
MR60W
200 Watts MAX and 100 Watts RMS Power Handling per Pair
Poly Injection Woofer Cone
Weather Proof Full Range 6.5" 2-way Speaker Pair
80 Hz to 20 kHz Frequency Response and 90dB Sensitivity
1 Tweeter Per Speaker
Authorized Dealer
MGR350B
FM Tuner Frequency Range
USA: 87.5~107.9MHz
Europe: 87.5~108MHz
Asia: 87.5~108MHz
Australia: 87.5~108MHz
Usable Sensitivity: 12dB (S/N=30dB)
Bands: 2
AM Tuner Frequency Range
USA: 530~1710KHz
Europe: 522~1620KHz
Asia: 522~1620KHz
Australia: 522~1620KHz
Usable Sensitivity: 40dB (S/N=20dB)
Bands: 1
Weather Band Selection
CH.1: 162.400MHz
CH.2: 162.425MHz
CH.3: 162.450MHz
CH.4: 162.475MHz
CH.5: 162.500MHz
CH.6: 162.525MHz
CH.7: 162.550MHz
Bands: 1
Bluetooth
BT: 4.0
BT Range: 33ft / 10m (Class 2)
BT Profiles: A2DP / AVRCP 1.3
USB Drive Media Supported
MP3
WMA
65,000 Songs
32GB / FAT 32
USB 2.0 High Speed
USB Output Voltage: 5VDC @ 1A
Integrated Amplifier
MOSFET
MAX Continuous Output: 240W (All channels driven)
PEAK Power Rating: 63W / channel
RMS Total Power Output: 150W
Channels: 4
Class: AB
Frequency Response: 20-25kHz
4 Ohm stable
Chassis
Chassis Dimensions (H x D x W): 0.79" x 3.75" x 3.5" (20mm x 95mm x 90.2mm)
Button Backlight Illumination: Red LED
Front/Rear RCA Preamp Output: 2V RMS
RCA Input Impedance: 10kohm
TFT: TN Type / Active Matrix
General
Power Source: 14.4VDC (10.8V ~ 16V allowable)
Grounding System: Negative Type
Maximum Current Consumption: 15A
3-Way Protection Circuitry (thermal, overload and speaker short protection)
Unit Weight: 1.08lbs (0.52kg)
Storage Temperature: 5 degrees Fahrenheit to 113 degrees Fahrenheit (-15 degrees Celsius to 45 degrees Celsius)
Operation Temperature: 14 degrees Fahrenheit to 104 degrees Fahrenheit (-10 degrees Celsius to 40 degrees Celsius)
Replacement Fuse: 15A (Replace with ATG Fuse Type Only)

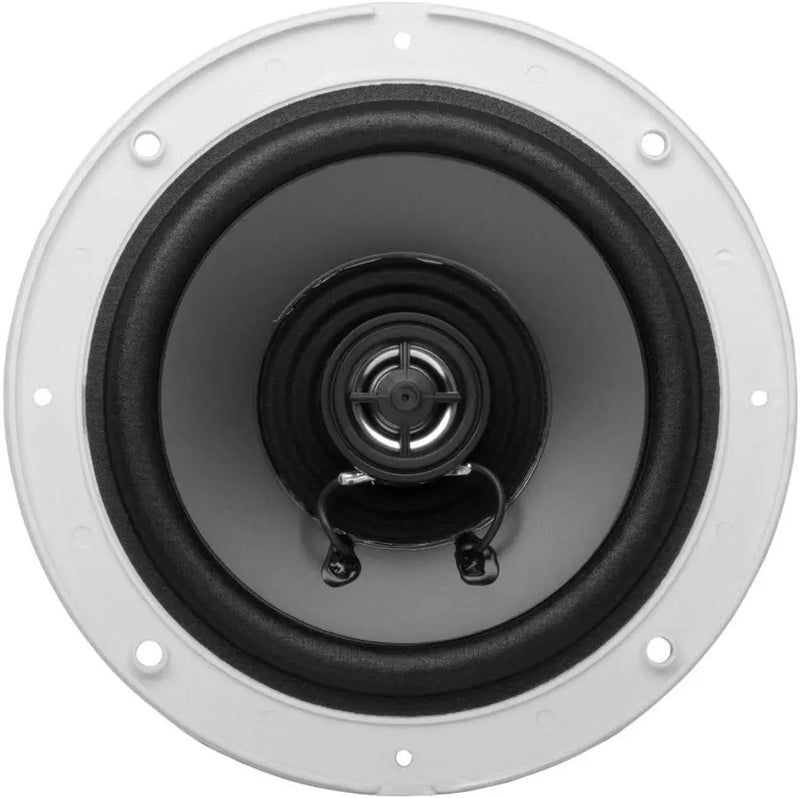

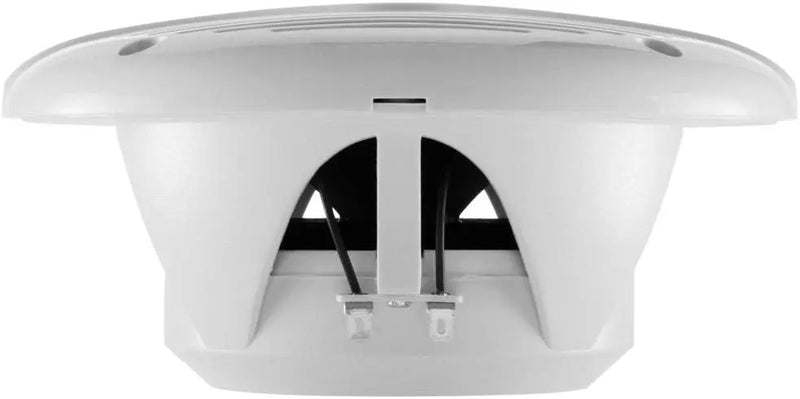

MR60W
General Specs
Speaker Type: Full Range
Configuration: 2-Way
Physical Specifics
Woofer Size: 6.5"
Supplied Grill
Tweeter Size: 1"
Mounting Depth: 2.44"
Performance Specs
Peak Power Handling: 200 Watts
System Sensitivity (1W/1M): 90dB
System Impedance: 4 Ohm
System Frequency Response: 80Hz to 20kHz
MGR350B Receiver

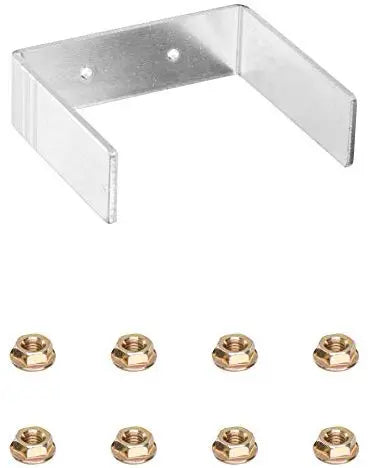

Metal Bracket
2 x Hexagon Mounting Studs
8 x M4 Secure Nuts
User Manual
Warranty Card
Facebook Card
2 x MR60W Speakers
