CAT5E 24 AWG STP Shielded 8C Solid Bare Copper Gray 1000 Feet Cable

Apologize!!! This product has been discontinued.

High-Performance Data Cable
350MHz Bandwith for Data Applications, Fast Ethernet and 155Mbps TP-PMD/CDDI
Category-5E Shielded Twisted Pair
Easily Identified Color-Striped Pairs
24AWG Solid Copper Conductors
Exceeds TIA/EIA-568C.2, ISO/IEC 11801
Riser Rated PVC Jacket
ETL Listed, RoHS Compliant
1000ft Pull Box
Authorized Dealer

CAT5 Enhanced 350MHz STP (Shielded) CMR Rated.pdf

Technical Data
Rated Temperature:
75 degrees celsius
Product Standard Certification: CMR
Application: Horizontal Wiring in LAN
Reference Standard: EIA/TIA 568 & ISO/IEC 11801

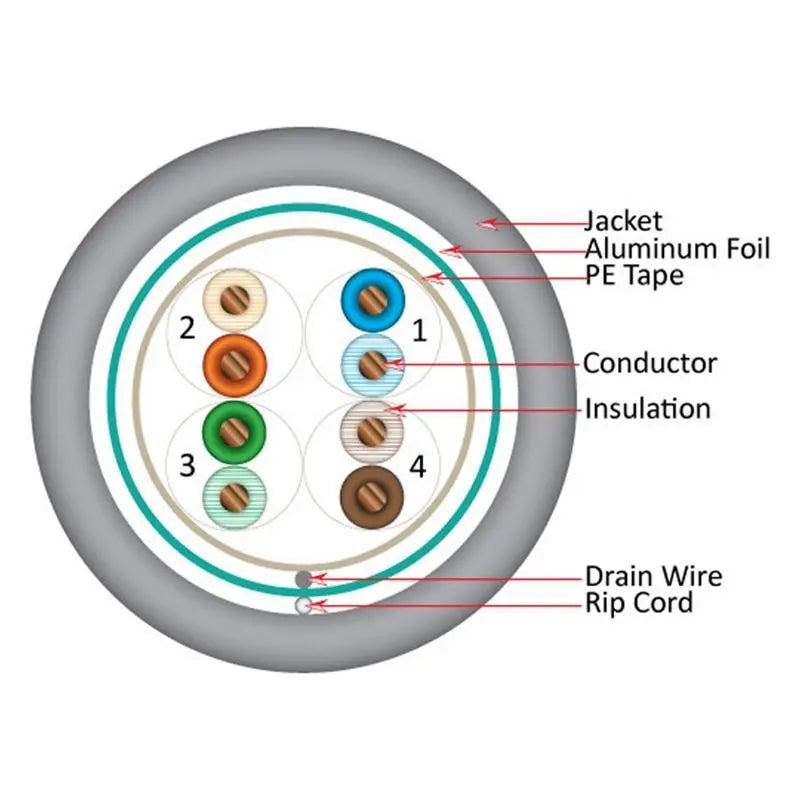

Conductor: Solid Bare Copper
Conductor Size: 24 AWG
Insulation: PE
Insulation Average Thickness: 0.228mm
Insulation Min. Point Thickness: 0.205mm
Insulation Diameter (±0.005mm): 0.97
Insulation Twisted Pair Diameter (±0.01): 1.94
Insulation Bond (mm): PE-Tape
Insulation Shield (mm): AL Foil
Insulation Drain Wire Dia.(±0.003mm): 0.40
(Solid Tinned Copper)
Assembly Diameter: 4.95
Jacket: PVC
Jacket Average Thickness: 0.60mm
Jacket Min. Point Thickness: 0.55mm
Jacket Outer Diameter (±0.10mm): 6.15
Jacket Rip Cord: Yes

Color Pairs
Pair 1:
Blue, White-Blue
Pair 2: Orange, White-Orange
Pair 3: Green, White-Green
Pair 4: Brown, White-Brown

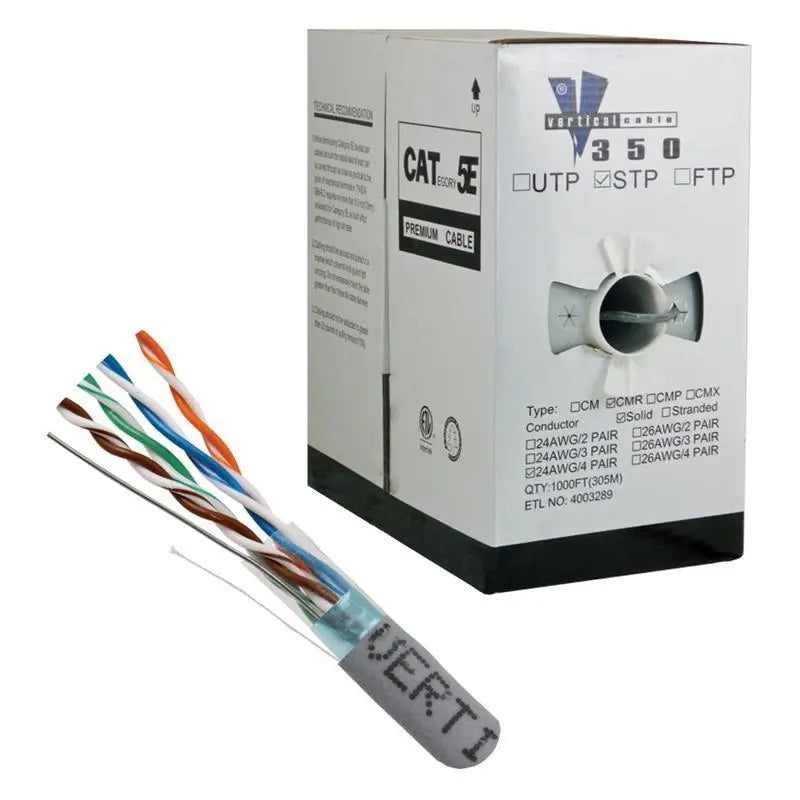

1000ft Pull Box CAT5E Cable
