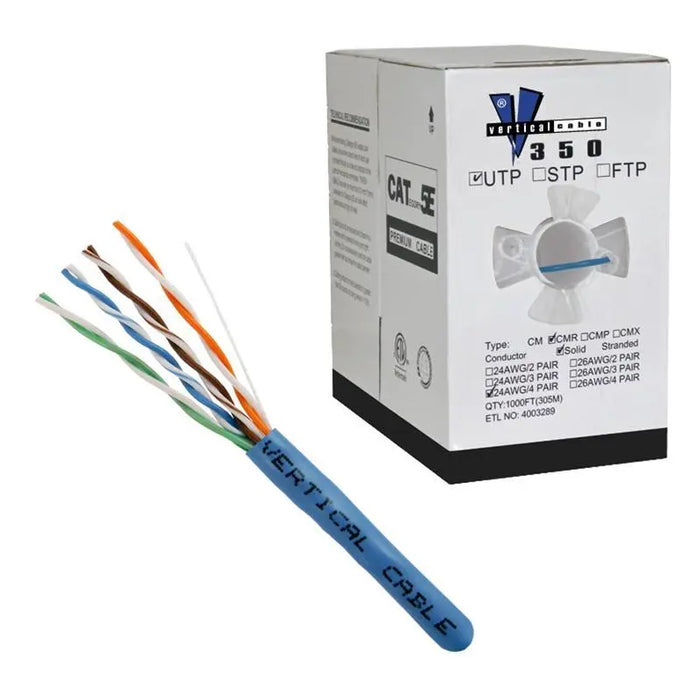

CAT5E 24 AWG UTP 8 Conductor Solid Bare Copper Blue 1000 Feet Cable

CAT5E 24 AWG UTP 8 Conductor Solid Bare Copper Blue 1000 Feet Cable Vertical Cable

Sorry, this product has been discontinued.

CAT5E 24 AWG UTP 8 Conductor Solid Bare Copper Blue 1000 Feet Cable

High-Performance Data Cable
350MHz Bandwidth for Data Applications
Category-5E Unshielded Twisted Pair
24AWG Solid Copper Conductors
Easily Identified Color-Striped Pairs
Exceeds TIA/EIA-568C.2, ISO/IEC 11801
Riser Rated PVC Jacket, CMR
ETL Listed, RoHS Compliant
1000ft Pull Box
Authorized Dealer


Technical Data

  • Rated Temperature: 75 degrees celsius
  • Rated Voltage: 30V
  • Product Standard Certification: CMR
  • Conductor: Solid Bare Copper
  • Conductor Size: 24 AWG
  • Insulation: PE
  • Insulation Average Thickness: 0.203mm
  • Insulation Min. Point Thickness: 0.172mm
  • Insulation Diameter: 0.88mm
  • Insulation Twisted Pair Diameter: 1.76
  • Assembly Diameter: 3.60
  • Jacket: PVC
  • Jacket Average Thickness: 0.60mm
  • Jacket Min. Point Thickness: 0.54mm
  • Jacket Outer Diameter: 5mm
  • Jacket Rip Cord: Yes

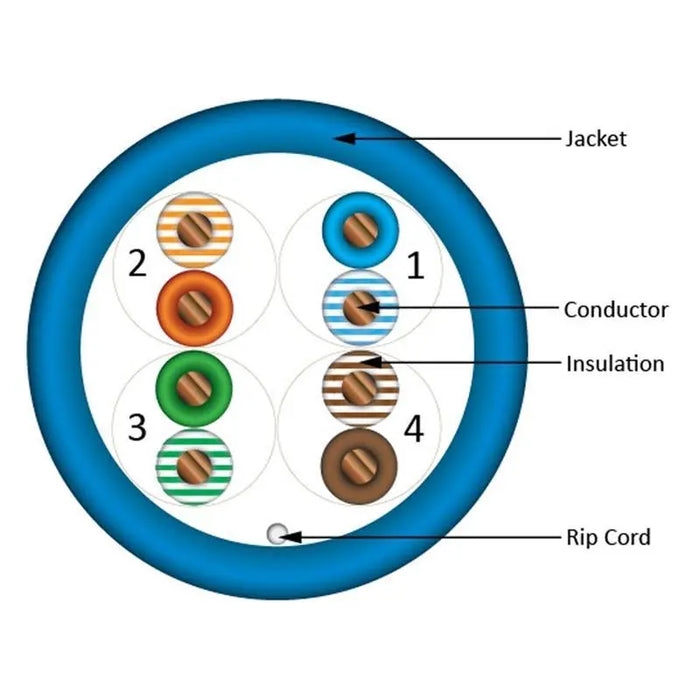

Color Pairs

  • Pair 1: Blue, White-Blue
  • Pair 2: Orange, White-Orange
  • Pair 3: Green, White-Green
  • Pair 4: Brown, White-Brown

What's in the box:

  • 1000ft Pull Box CAT5E Cable

Docs/Instruction Links:
