CAT5E 24 AWG UTP 8 Conductor Solid Bare Copper Gray 1000 Feet Cable

Sorry, this product has been discontinued.

High-Performance Data Cable
350MHz Bandwidth for Data Applications
Category-5E Unshielded Twisted Pair
24AWG Solid Copper Conductors
Easily Identified Color-Striped Pairs
Exceeds TIA/EIA-568C.2, ISO/IEC 11801
Riser Rated PVC Jacket, CMR
ETL Listed, RoHS Compliant
1000ft Pull Box
Authorized Dealer

CAT5 Enhanced 350MHz UTP CMR Rated.pdf

Technical Data
Rated Temperature:
75 degrees celsius
Rated Voltage: 30V
Product Standard Certification: CMR
Conductor: Solid Bare Copper
Conductor Size: 24 AWG
Insulation: PE
Insulation Average Thickness: 0.203mm
Insulation Min. Point Thickness: 0.172mm
Insulation Diameter: 0.88mm
Insulation Twisted Pair Diameter: 1.76
Assembly Diameter: 3.60
Jacket: PVC
Jacket Average Thickness: 0.60mm
Jacket Min. Point Thickness: 0.54mm
Jacket Outer Diameter: 5mm
Jacket Rip Cord: Yes

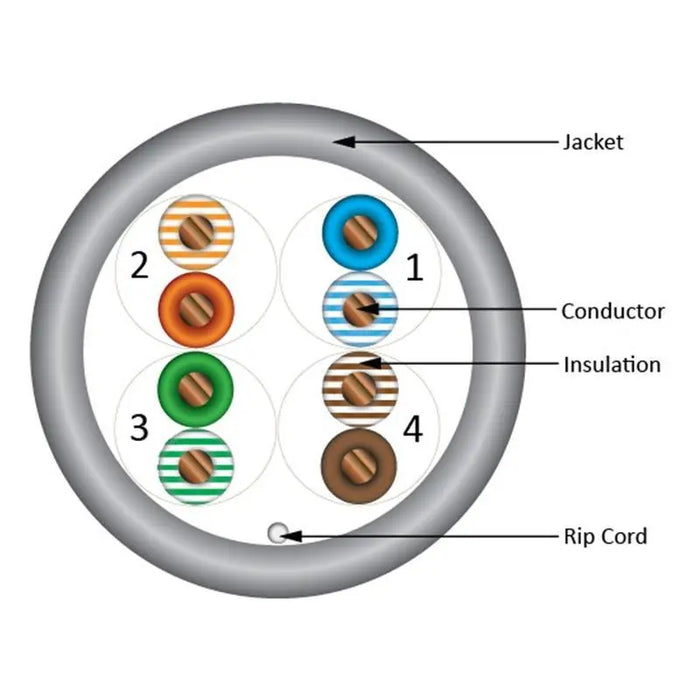

Color Pairs
Pair 1:
Blue, White-Blue
Pair 2: Orange, White-Orange
Pair 3: Green, White-Green
Pair 4: Brown, White-Brown

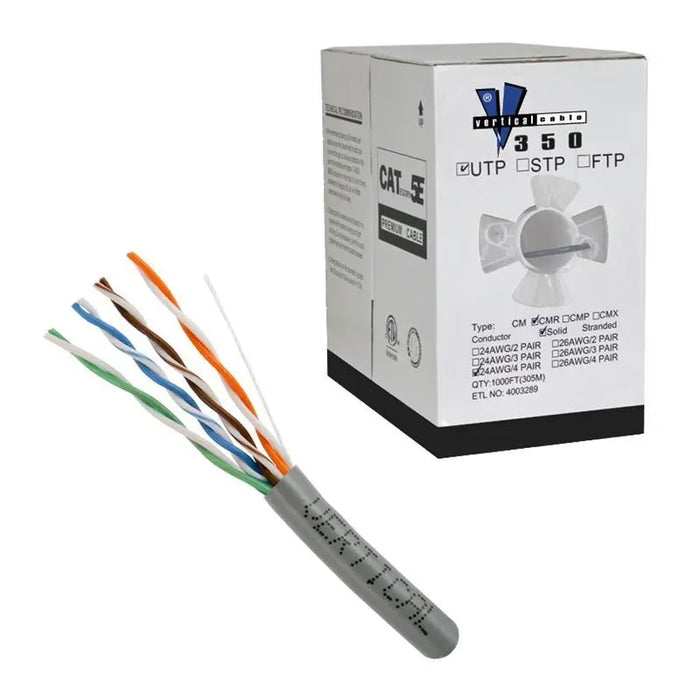

1000ft Pull Box CAT5E Cable
