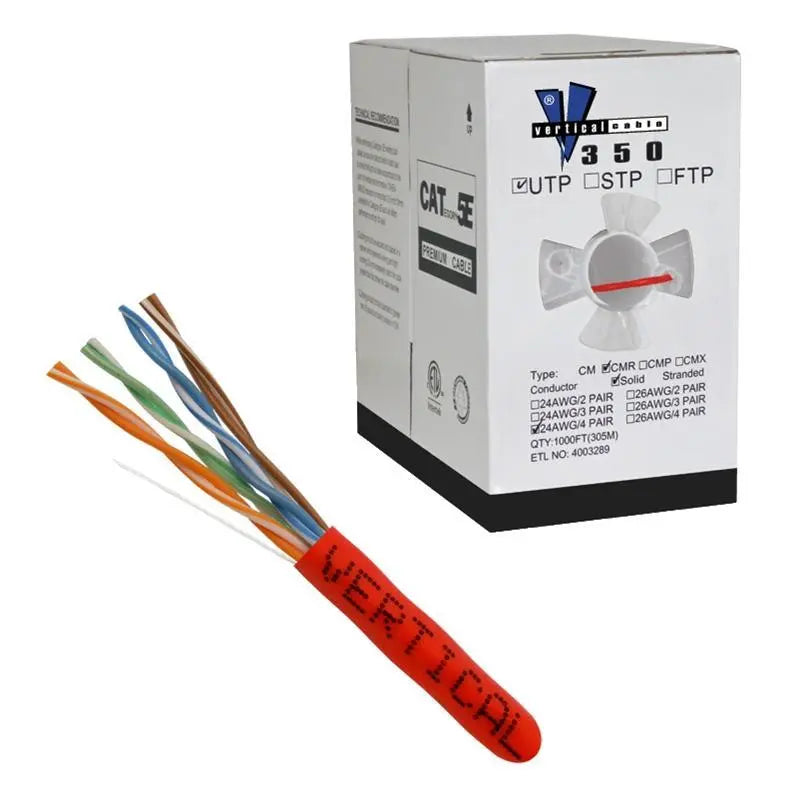

CAT5E 24 AWG UTP 8 Conductor Solid Bare Copper Red 1000 Feet Cable
- Description
- Specs/Features
- What's in the Box
- FAQ
- Proposition 65
Description
High-Performance Data Cable
350MHz Bandwidth for Data Applications
Category-5E Unshielded Twisted Pair
24AWG Solid Copper Conductors
Easily Identified Color-Striped Pairs
Exceeds TIA/EIA-568C.2, ISO/IEC 11801
Riser Rated PVC Jacket, CMR
ETL Listed, RoHS Compliant
1000ft Pull Box
Authorized Dealer
CAT5 Enhanced 350MHz UTP CMR Rated.pdf
350MHz Bandwidth for Data Applications
Category-5E Unshielded Twisted Pair
24AWG Solid Copper Conductors
Easily Identified Color-Striped Pairs
Exceeds TIA/EIA-568C.2, ISO/IEC 11801
Riser Rated PVC Jacket, CMR
ETL Listed, RoHS Compliant
1000ft Pull Box
Authorized Dealer
CAT5 Enhanced 350MHz UTP CMR Rated.pdf
Specs/Features
Technical Data
Rated Temperature: 75 degrees celsius
Rated Voltage: 30V
Product Standard Certification: CMR
Conductor: Solid Bare Copper
Conductor Size: 24 AWG
Insulation: PE
Insulation Average Thickness: 0.203mm
Insulation Min. Point Thickness: 0.172mm
Insulation Diameter: 0.88mm
Insulation Twisted Pair Diameter: 1.76
Assembly Diameter: 3.60
Jacket: PVC
Jacket Average Thickness: 0.60mm
Jacket Min. Point Thickness: 0.54mm
Jacket Outer Diameter: 5mm
Jacket Rip Cord: Yes

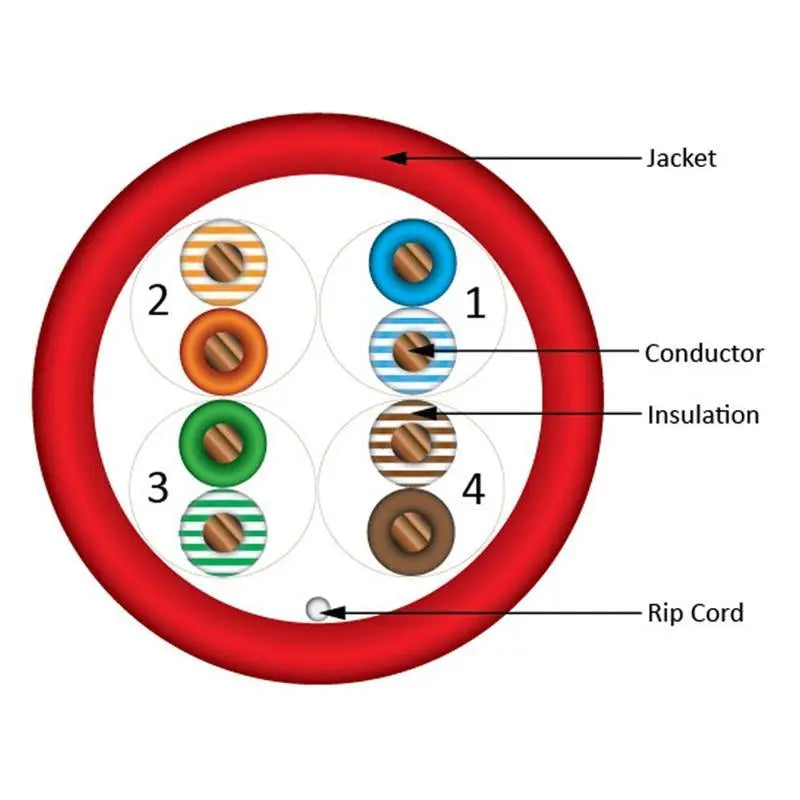

Color Pairs
Pair 1: Blue, White-Blue
Pair 2: Orange, White-Orange
Pair 3: Green, White-Green
Pair 4: Brown, White-Brown
What's in the Box
1000ft Pull Box CAT5E Cable
