CAT5E 24 AWG UTP 8C Stranded Bare Copper PVC Jacket Blue 1000' Cable

In Stock
$157.00
Checked 30-Day Money-Back Guarantee
Checked Fast, Free Shipping on all US Orders
Checked Live Customer Service Representative
Checked Buy Online, Free Local Pickup (Contact us for Availability)
High-Performance Data Cable
350MHz Bandwith for Data Applications, Fast Ethernet and 155Mbps TP-PMD/CDDI
Category-5E Unshielded Twisted Pair
Easily Identified Color-Striped Pairs
24AWG Stranded Copper Conductors
Exceeds TIA/EIA-568C.2
ETL Listed, RoHS Compliant
1000ft Pull Box
Authorized Dealer

CAT5 Enhanced 350MHz UTP (Stranded) CMR Rated.pdf
Technical Data
Rated Temperature:
75 degrees celsius
Product Standard Certification: CM
Conductor: Stranded Bare Copper
Conductor Size: 24 AWG
Conductor Diameter (±0.005mm): 7/0.2
Insulation: PE
Insulation Average Thickness: 0.20mm
Insulation Min. Point Thickness: 0.18mm
Insulation Diameter (±0.005mm): 0.98
Insulation Twisted Pair Diameter (±0.01): 1.96
Assembly Diameter: 4.20
Jacket: PVC
Jacket Average Thickness: 0.60mm
Jacket Min. Point Thickness: 0.50mm
Jacket Outer Diameter (±0.10mm): 5.40
Jacket Rip Cord: No

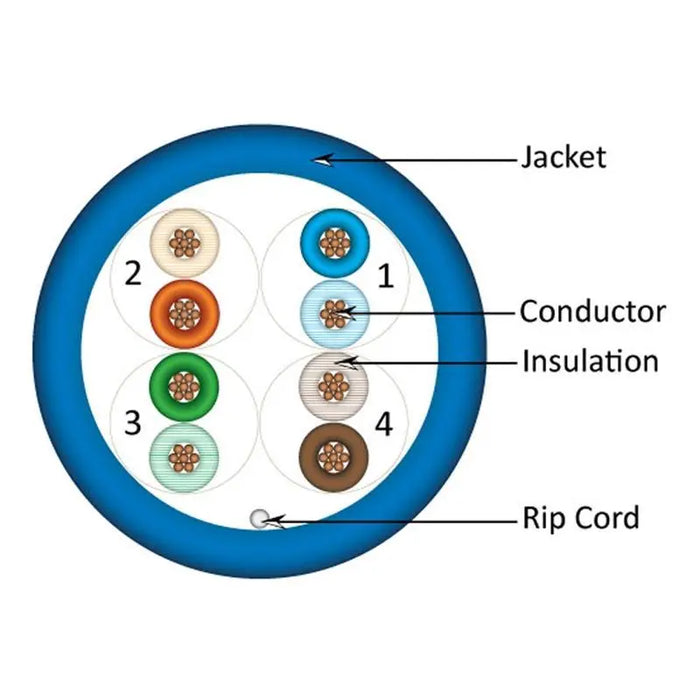

Color Pairs
Pair 1:
Blue, White-Blue
Pair 2: Orange, White-Orange
Pair 3: Green, White-Green
Pair 4: Brown, White-Brown
1000ft Pull Box CAT5E Cable
