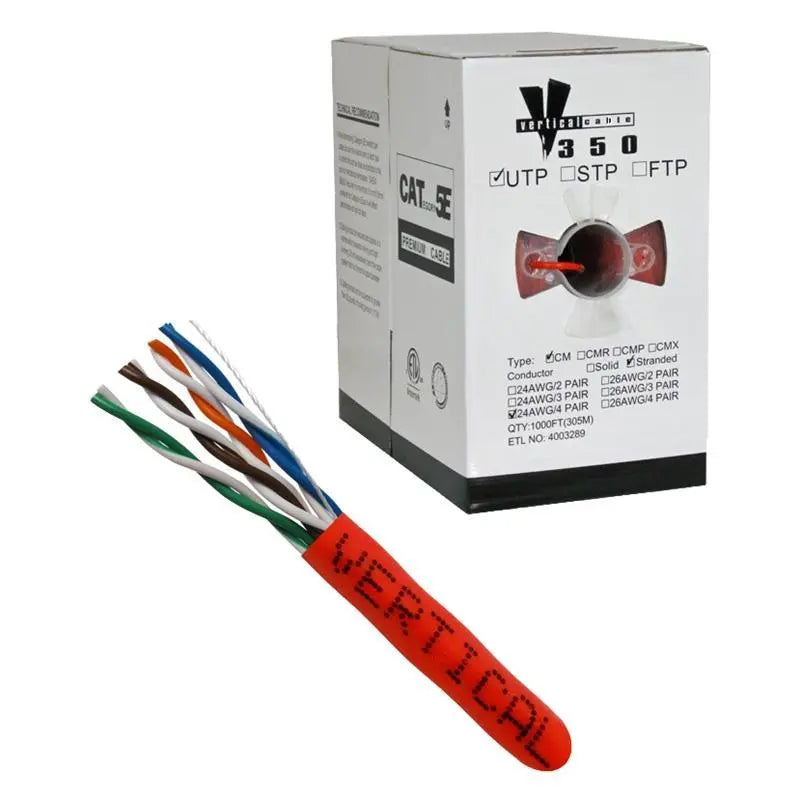

CAT5E 24 AWG UTP 8C Stranded Bare Copper PVC Jacket Red 1000 ft Cable

Technical Data

• Rated Temperature: 75 degrees celsius
• Product Standard Certification: CM
• Conductor: Stranded Bare Copper
• Conductor Size: 24 AWG
• Conductor Diameter (±0.005mm): 7/0.2
• Insulation: PE
• Insulation Average Thickness: 0.20mm
• Insulation Min. Point Thickness: 0.18mm
• Insulation Diameter (±0.005mm): 0.98
• Insulation Twisted Pair Diameter (±0.01): 1.96
• Assembly Diameter: 4.20
• Jacket: PVC
• Jacket Average Thickness: 0.60mm
• Jacket Min. Point Thickness: 0.50mm
• Jacket Outer Diameter (±0.10mm): 5.40
• Jacket Rip Cord: No

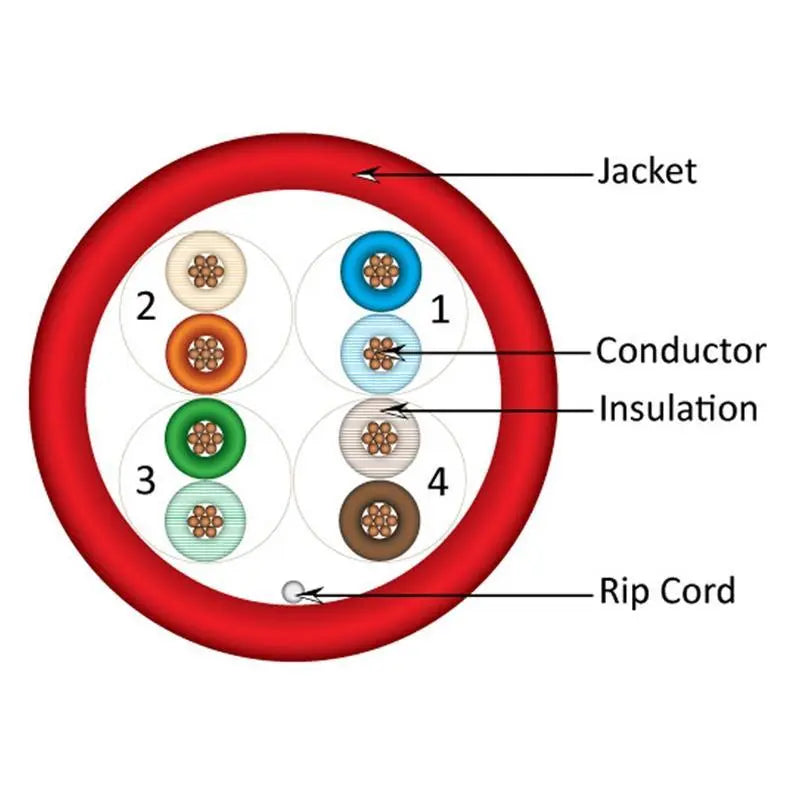

Color Pairs

• Pair 1: Blue, White-Blue
• Pair 2: Orange, White-Orange
• Pair 3: Green, White-Green
• Pair 4: Brown, White-Brown

What's in the box:

• 1000ft Pull Box CAT5E Cable

Docs/Instruction Links:

• CAT5 Enhanced 350MHz UTP (Stranded) CMR Rated.pdf
