CAT5E CMXF Outdoor Direct Burial 24AWG 8 Conductor Black 1000' Cable

Sorry, this product has been discontinued.

CAT5E CMXF Outdoor Direct Burial 24AWG 8 Conductor Black 1000' Cable

High-Performance Data Cable
350MHz Bandwidth for Data Applications, Fast Ethernet and 155Mbps TP-PMD/CDDI
Category-5E Unshielded Twisted Pair
Easily Identified Color-Striped Pairs
24AWG Solid Copper Conductors
Exceeds TIA/EIA-568C.2, ISO/IEC 11801
CAN/CSA -C22.2 No. 214
Direct Burial Gel Filled (Flooded Core)
ETL Listed, 1000ft Pull Box
Compatible with outdoor above ground, direct burial (not recommended for cell towers)
Authorized Dealer

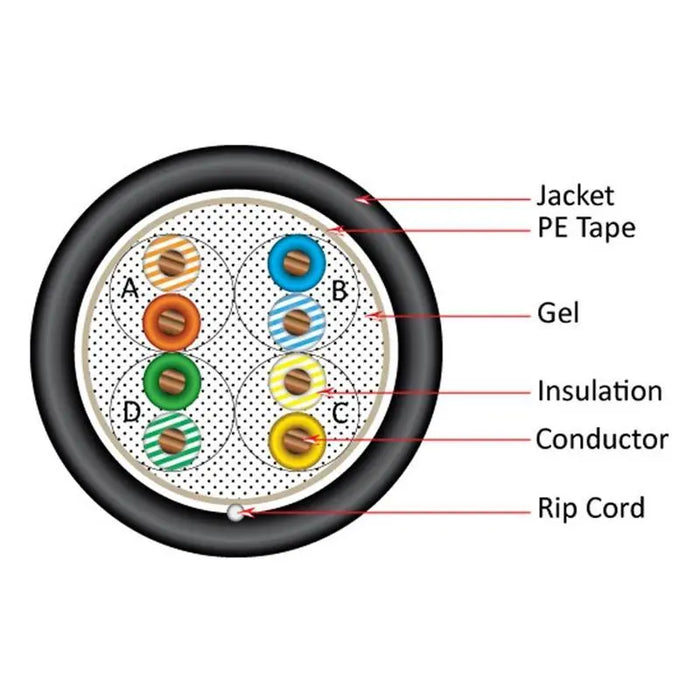

Technical Data

  • Rated Temperature: -40~75 ºC
  • Rated Voltage: 30v
  • Product Standard Certification: CMX
  • Application: Horizontal Wiring in LAN
  • Reference Standard: TIA/EIA 568 & ISO/IEC 11801
  • Conductor: Solid Bare Copper
  • Conductor Size: 24 AWG
  • Insulation: PE
  • Insulation Average Thickness: 0.208mm
  • Insulation Min. Point Thickness: 0.186mm
  • Insulation Diameter (±0.005mm): 0.91
  • Insulation Twisted Pair Diameter (±0.01): 1.92
  • Filler: Gel
  • Assembly Dia. (±0.2mm): 4.00
  • Jacket: LLDPE (UV)
  • Jacket Average Thickness: 0.60mm
  • Jacket Min. Point Thickness: 0.54mm
  • Jacket Outer Diameter (±0.10mm): 5.40
  • Jacket Rip Cord: Yes

Color Pairs

  • Pair 1: Blue, White-Blue
  • Pair 2: Orange, White-Orange
  • Pair 3: Green, White-Green
  • Pair 4: Brown, White-Brown
