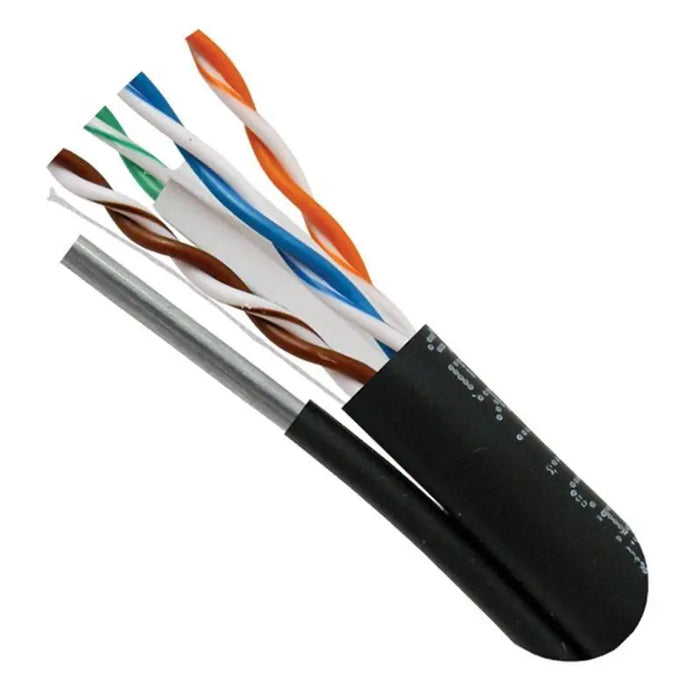

CAT5E Outdoor with Messenger 24AWG Solid Bare Copper Black 1000' Cable

Sorry, this product has been discontinued.

CAT5E Outdoor with Messenger 24AWG Solid Bare Copper Black 1000' Cable

Ideal for Outdoor Aerial Applications
Galvanized Steel Messenger for Support
Easily Identified Color-Striped Pairs
24AWG Solid Copper Conductors
Exceeds TIA/EIA-568C.2 Standards
ETL Listed RoHS Compliant
1000ft Wooden Spool
Compatible with aerial applications
Authorized Dealer

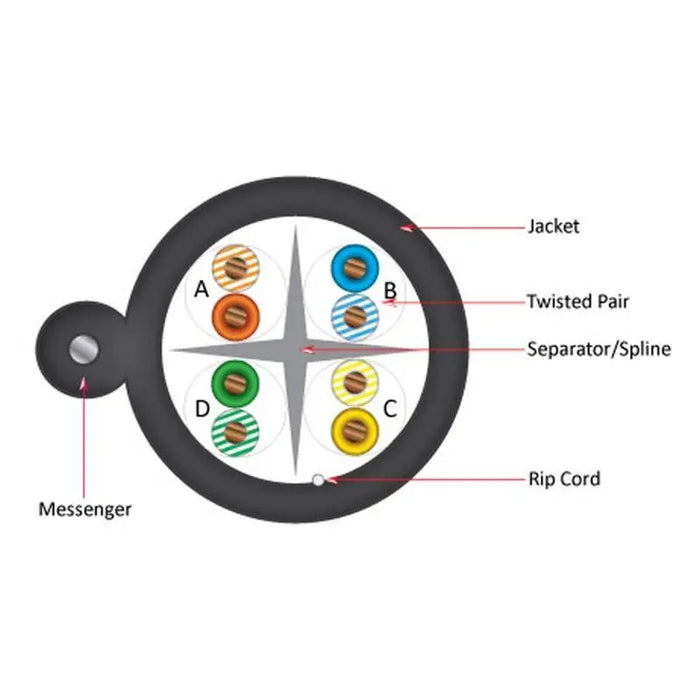

Technical Data

  • Rated Temperature: -40~70ºC
  • Flammability Test: IEC-332-1
  • Conductor: Solid Bare Copper
  • Conductor Size: 24 AWG
  • Insulation: PE
  • Insulation Average Thickness: 0.228mm
  • Insulation Diameter (±0.005mm): 0.97
  • Insulation Twisted Pair Diameter (±0.01): 1.94
  • Insulation PE-Tape: Yes
  • Insulation Drain Wire (TC): 0.40mm
  • Insulation AL-Foil: Yes
  • Insulation PE-Tape: Yes
  • Assembly Diameter: 4.80
  • Messenger: Galvanized Steel
  • Messenger Diameter: 1.30mm
  • Jacket (Black): LLDPE
  • Jacket Average Thickness: 0.80mm x 0.65mm
  • Jacket Outer Diameter (±0.10mm): 6.50 x 2.60
  • Jacket Rip Cord: Yes (Nylon)


Color Pairs

  • Pair 1: Blue, White-Blue
  • Pair 2: Orange, White-Orange
  • Pair 3: Green, White-Green
  • Pair 4: Brown, White-Brown

What's in the box:

  • 1000ft Wooden Spool CAT5E Cable
