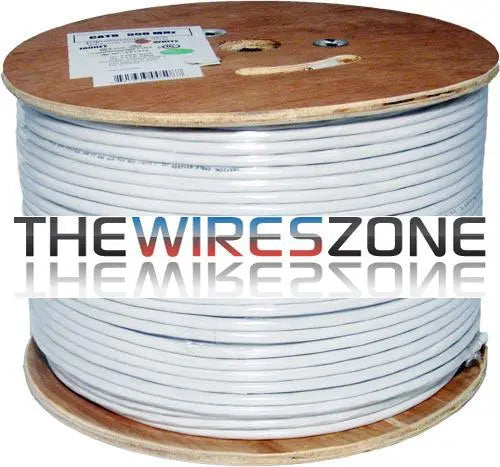

CAT6 STP 1000' 8-Conductor, Bulk, WHITE-PVC Jacket, (FTP) Shieled AWG23 Solid-Bare Copper, Wooden Spool
FEATURES AND BENEFITS:
• High-Performance Data Cable
• 550MHz Bandwith for Data Applications, Fast Ethernet and 155Mbps TP-PMD/CDDI
•Category-6 Shielded Twisted Pair
• Easily Identified Color-Striped Pairs
• 23AWG Solid Bare Copper Conductors
• Exceeds EIA/TIA 568-B.2-1, ISO/IEC-11801
• Riser Rated (CMR)
• 1000ft Wooden Spool
Technical Data
Rated Temperature (ºC) 70
Rated Voltage (V) 30
Product Standard Certification CMR
Conductor Solid Bare Copper
Size 23 AWG
Insulation PE
Average Thickness (mm) 0.22
Min. Point Thickness (mm) 0.19
Insulation Diameter (±0.005mm) 1.01
Twisted Pair Diameter (±0.01) 2.02
Filler LDPE
Bond PE Tape
Shield AL-Foil
Drain Wire (TC) 0.40
Assembly Diameter 6.20
Jacket PVC
Average Thickness (mm) 0.60
Min. Point Thickness (mm) 0.50
Outer Diameter (±0.10mm) 7.80
Rip Cord Yes
Color of Pairs
Pair 1 Blue,White-Blue
Pair 2 Orange,White-Orange
Pair 3 Green,White-Green
Pair 4 Brown,White-Brown
Mechanical Characteristics
Test Object Jacket
Test Material PVC
Before Tensile Strength (Mpa) >=13.8
Aging Elongation (%) >=100
Aging Condition (ºCxhrs) 100x168
After Tensile Strength (Mpa) >=85% of unaged
Aging Elongation (%) >=50% of unaged
Cold Bend (-20±2º Cx4hrs) No Crack
