FEATURES AND BENEFITS:
• High-Performance Data Cable
• 550MHz Bandwith for Data Applications, Fast Ethernet and 155Mbps TP-PMD/CDDI
• Category-6 Unshielded Twisted Pair
• Easily Identified Color-Striped Pairs
• 23AWG Solid Bare Copper Conductors
• Riser Rated (CMR)

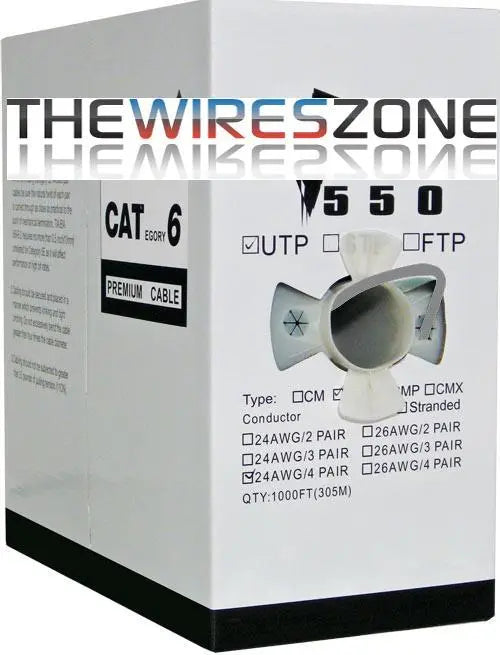

• 1000ft Pull Box
Technical Data
Rated Temperature (ºC) 70
Product Standard Certification CMR
Application Horizontal Wiring in LAN
Conductor Solid Bare Copper
Size 23AWG
Insulation PE
Average Thickness (mm) 0.22
Min. Point Thickness (mm) 0.19
Insulation Diameter (±0.005mm) 1.01
Twisted Pair Diameter (±0.01) 2.02
Seperator PP
Assembly Diameter 5.00
Jacket PVC
Average Thickness (mm) 0.60
Min. Point Thickness (mm) 0.50
Outer Diameter (±0.10mm) 6.20
Rip Cord Yes
Color of Pairs
Pair 1 Blue,White-Blue
Pair 2 Orange,White-Orange
Pair 3 Green,White-Green
Pair 4 Brown,White-Brown
Mechanical Characteristics
Test Object Jacket
Test Material PVC
Before Tensile Strength (Mpa) >=13.8
Aging Elongation (%) >=100
Aging Condition (ºCxhrs) 100x168
After Tensile Strength (Mpa) >=85% of unaged
Aging Elongation (%) >=50% of unaged
Cold Bend (-20±2º Cx4hrs) No Crack
