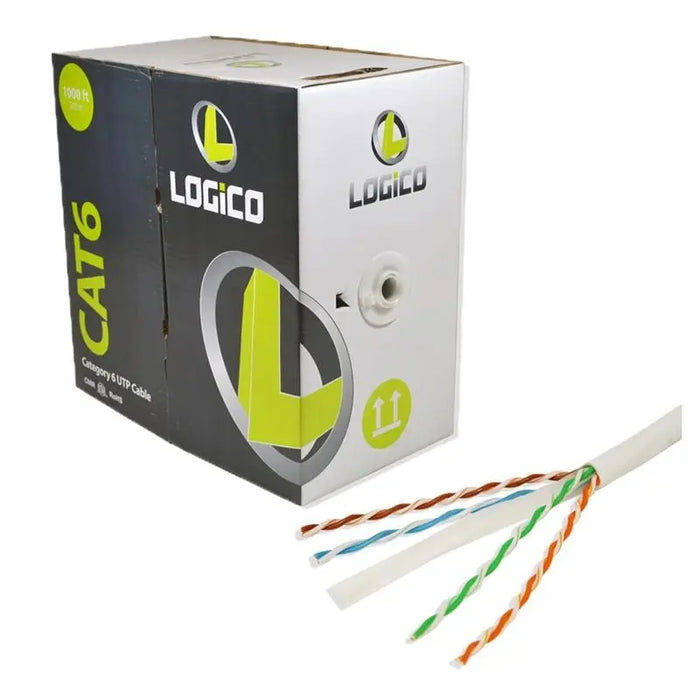

CAT6 CMR UTP Riser Bare Copper 1000ft 550Mhz 23AWG White Network Cable
Brand: Logico
MPN: C6EU2802
Condition: New
Category-6 Unshielded Twisted Pair High-Performance Data Cable
23AWG Solid Copper Conductors
8 Conductor Solid Bare Copper
Polyethylene (PE) Insulation Material
CMR Rated
PVC Jacket
Tested up to 550Mhz
Easily Identified Color-Striped Pairs
C(ETL) Listed FT4
TIA/EIA-568B.2, ISO/IEC 11801
ROHS Compliant
Ethernet 10BASE-T, 100BASE-TX, 100BASE-VG, 100BASE-T4
1000 Mbps 1000BASE-T Gigabit Ethernet (IEEE 802.3)
ETL Listed
White Color
1000ft Pull Box
Authorized Dealer
Conductor Pairs: 4
Conductor AWG: 23
Conductor Stranding: Solid
Conductor Material: Solid Annealed Bare Copper
Insulation Material: Polyethylene
Insulation Diameter: 1.02 ± 0.03
Pair Color Code
Pair 1: White/Blue Stripe & Blue
Pair 2: White/Orange Stripe & Orange
Pair 3: White/Green Stripe & Green
Pair 4: White/Brown Stripe & Brown
Outer Shield Material: Unshielded
Outer Jacket Material: Flame Retardant PVC
Outer Jacket Diameter: 6.0 ± 0.3
Rip Cord: Yes
Color: White
Temperature Rating (Installation): 0 to + 60°C
Temperature Rating (Operating): -20°C to + 75°C
Electrical Characteristics
DC resistance: Max 9.38 Ω / 100 m
Mutual capacitance: Max 5.6 nf / 100 m
Resistance unbalance: Max 5 %
Technical Data
Standard Certification: CMR, ETL Listed
Reference Standard: EIA/TIA 568 & ISO/IEC 11801
