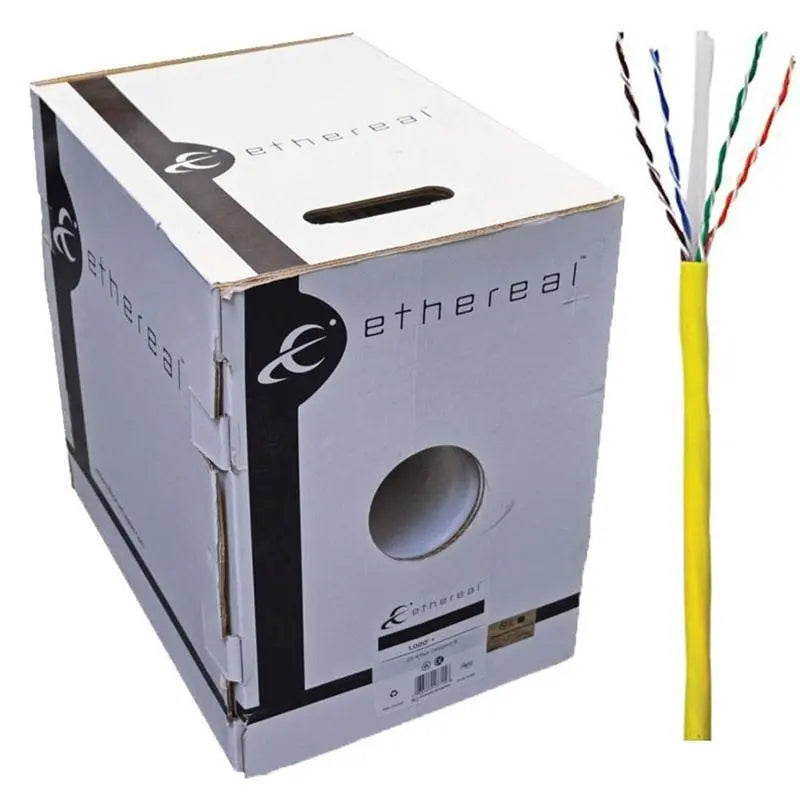

CAT6 CMR (Yellow) 23/4 Pair Bare Copper 1000ft 23 Gauge Ethernet Cable

In Stock
Checked 30-Day Money-Back Guarantee
Checked Fast, Free Shipping on all US Orders
Checked Live Customer Service Representative
Checked Buy Online, Free Local Pickup (Contact us for Availability)
CAT6 Yellow CMR Rated Riser 23/4 Pair Bare Copper 1000ft 23 Gauge Ethernet Cable

Condition: New

Supports all Gigabit Ethernet/1000BAST-T/IEEE 802.3ab, ATM up to 155 Mbps, 100 Mbps Fast Ethernet 100BASE-T/IEEE 802.3, ANSI.X3.263 FDDI TP-PMD, Ethernet 10BASE-T/IEEE 802.3, 4 & 16 Mbps Token Ring/IEEE 802.5, T1/E1, xDSL, ISDN, 550 MHz Broadband Video and standards under development such as ATM at 622 Mbps, 1.2, 2.4 and 4.8 Gbps

23 AWG Solid Bare Copper
Number of Conductors or Pairs: 4 Pair
Jacket Material: CMR Rated Polyvinyl Chloride
Nominal Overall Cable Diameter: 0.240 in.
Approximate Cable Weight: 34 lbs/1000 ft.

Electrical & Physical Properties
Temperature Rating:
0 degrees celsius to 50 degrees celsius (Installation); -2 degrees celsius to 60 degrees celsius (Operation)
Velocity of Propagation: 70%
Mutual Capacitance: 14 pF/ft Nominal
Capacitance Unbalance: 330 pF/ft maximum
Maximum Conductor D.C.R.: 28.6 ohm/1000 ft
Maximum D.C.R. Unbalance: 3%
Maximum Delay Skew: 18 ns/100m
Minimum Bend Radius: 1.0 in.
