Axxess AXDIS-LR82 Data Interface w/ MOST25 Amp & SWC Retention for Land Rover Range Rover 2002-2012

Axxess AXDIS-LR82 Data Interface w/ MOST25 Amp & SWC Retention for Land Rover Range Rover 2002-2012
Availability:
Low stock
$0.00 - $0.00
$0.00
$348.95
$348.95 - $348.95
$348.95

Axxess AXDIS-LR82 Data Interface w/ MOST25 Amp & SWC Retention for Land Rover Range Rover 2002-2012

This vehicle-specific interface is designed for use when replacing the factory radio in vehicles with MOST25 amplified audio systems, such as with Metra Electronics dash kits. It provides accessory 12-volt power, parking brake, reverse, and speed sense NAV outputs, retains audio controls on the steering wheel, and is micro “B” USB updatable.

Features:

  • Provides accessory power (12-volt 10-amp)
  • Provides NAV outputs (parking brake, reverse, and speed sense)
  • Retains audio controls on the steering wheel
  • Easy to set DIP switches for SWC configuration
  • Designed for amplified systems
  • Micro “B” USB updatable

Note: Backup Camera not retained if equipped.

* Media Oriented System Transport

Features:

  • Provides accessory power
  • Designed for amplified models
  • Provides NAV outputs (parking brake, reverse, speed sense)
  • Retains audio controls on the steering wheel
  • USB Micro B updatable

Tools Required:

  • Wire cutter
  • Crimp tool and connectors (example:butt-connectors,bell caps,etc.) or
  • Soldergun, solder, heat shrink
  • Tape
  • Zip-ties

Vehicle Applications

US Applications: Range Rover

  • Vogue(L322) 2005-2009

World Applications: Range Rover

  • Vogue (L322) 2002-2012

Visit AxxessInterfaces.com for more detailed information about the product and up-to-date vehicle specific applications.

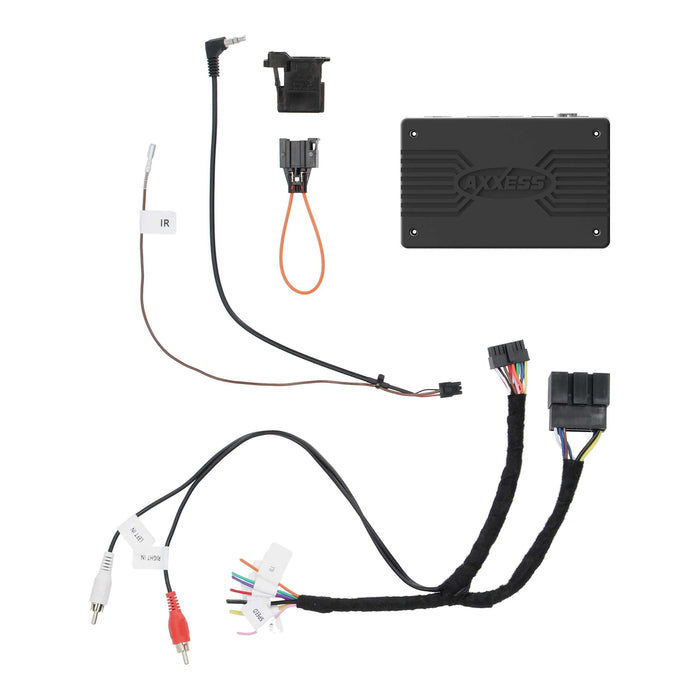

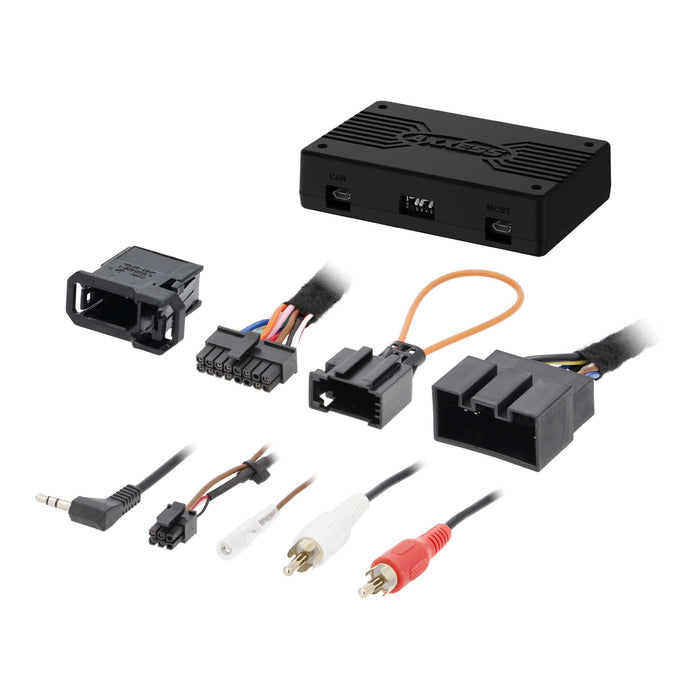

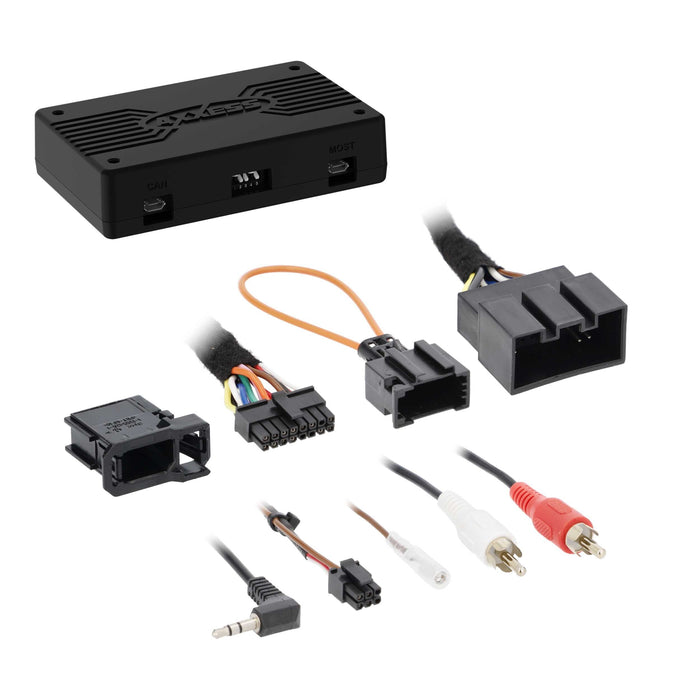

What's in the box

  • AXDIS-LR82 harness
  • AXDIS-LR82 interface
  • AXDIS-LR82 amplifier interface
  • AXSWC harness
  • AXSWC interface
  • M.O.S.T. jumper harness
  • Female 3.5mm connector with stripped leads

ATTENTION: With the key out of the ignition, disconnect the negative battery terminal before installing this product. Ensure that all installation connections are secure before cycling the ignition to test this product. NOTE: Refer to the instructions included with the aftermarket radio.
