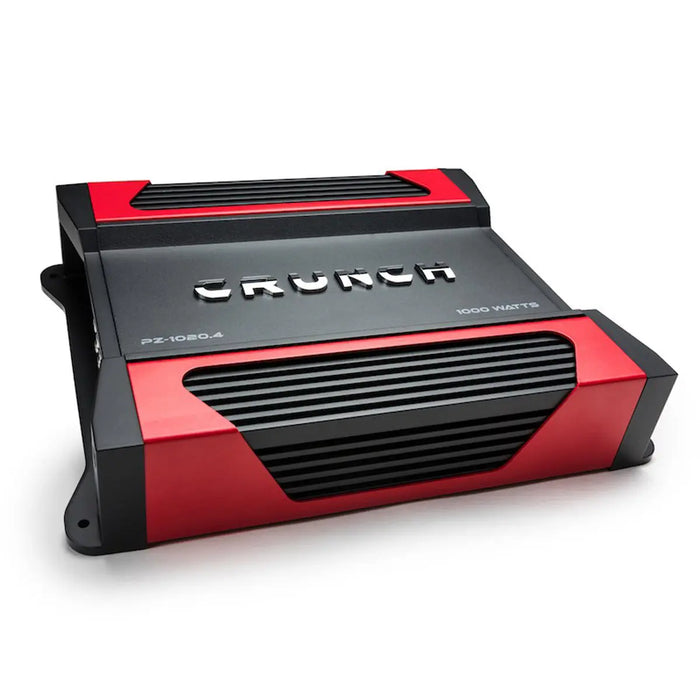

Crunch PZ-1020.4 Powerzone 1000 Watts Class AB 4-Channel Car Audio Amplifier

by Crunch
Out of Stock
$83.31
Condition: NEW
Checked 30-Day Money-Back Guarantee
Checked Fast, Free Shipping on all US Orders
Checked Live Customer Service Representative
Checked Buy Online, Free Local Pickup (Contact us for Availability)

California customers:
Please click here for your Proposition 65 warning.

Crunch PZ-1020.4 Powerzone 1000 Watts  4-Channel Car Audio Amplifier

POWERZONE four-channel amplifier highlighted with bright Crunch red heatsink elements feature high-level inputs utilizing SPEED-FET output devices and QTD Technology produces 1000 watts of power in a four-channel application.

Features:

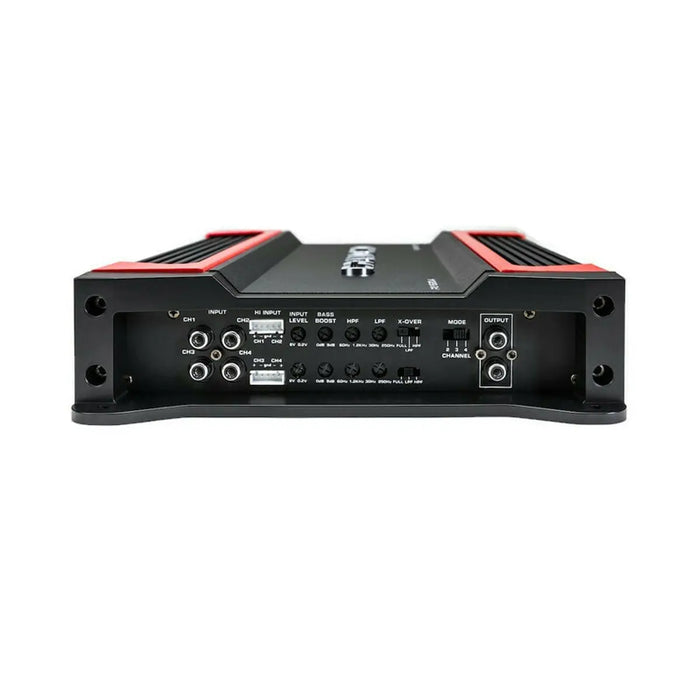

  • HI LEVEL INPUTS
    High-level inputs easily tie into OEM audio systems that do not offer RCA output. Molex connector is included
  • OPERATION MODE
    4 channel operation mode allows either stereo or mono bridged operation
  • CROSSOVER TYPE
    Variable electronic crossovers allow for complete control of the sound
  • ELECTRONIC EQUALIZER
    Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers.
  • CLASS / TOPOLOGY
    Class A/B high sound quality circuit that allows the amplifier to develop high levels of power with minimal distortion
  • OUTPUT DEVICE TECHNOLOGY
    Exclusive Crunch SPEED-FET MOSFET components maximize power efficiency while improving sound quality and minimizing distortion
  • HEAT SINK
    QTD (Quick Thermal Dispersion) technology assures the amplifier makes huge power while running very cool with nearly undetectable musical distortions
  • POWER SUPPLY
    Rugged MOSFET Pulse Width Modulation power supply
    Allows amplifier to product efficient power without taxing the vehicle electrical system
  • OUTPUT CONNECTIONS
    Nickel-plated brass connection with hex set screw terminals to allow for a secure connection and resist erosion
  • CONNECTION TYPE
    Secure connection for all power, ground and speaker connections.
  • FULL-RANGE RCA OUTPUTS FOR SIGNAL PASS THROUGH
    Daisy chain multiple amplifiers to eliminate additional signal cables from the source unit
  • LED SYSTEM PROTECTION CIRCUITRY DIAGNOSTICS
    Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel

Specifications:

  • CLASS
    Class A/B
  • VARIABLE VOLTAGE
    6V - 0.2V
  • SIGNAL TO NOISE
    >90dB
  • FREQUENCY RESPONSE
    10Hz-45KHz
  • CROSSOVER
    VeraCross
    Switchable
    FULL / HPF
  • VARIABLE HIGH PASS CROSSOVER 12DB PER OCTAVE
    CH3 & CH4
    Switchable
    HPF/LPF/FULL
    HPF
    60Hz - 1.2kHz
  • VARIABLE LOW PASS CROSSOVER 12DB PER OCTAVE
    CH1 & CH2
    LPF 60Hz - 1.2kHz
    CH3 & CH4
    Switchable
    HPF/LPF/FULL
    LPF
    30Hz - 250Hz
  • BASS BOOST
    Switchable
    12 / 6 / 0dB
  • POWER @ 1 OHM
    N/A
  • POWER @ 2 OHMS
    4 x 250 Watts
  • POWER @ 4 OHMS
    4 x 125 Watts
  • MONO BRIDGED @ 4 OHMS
    2 x 500 Watts
  • TOTAL CHANNELS
    4
  • AUDIO INPUTS
    RCA
  • AUDIO OUTPUTS
    Full Range
    RCA
  • SPEAKER TERMINAL WIRE GAUGE
    Spade Connector
    Recommended
  • FUSING
    15Ax2
  • TOTAL HARMONIC DISTORTION (THD)
    <0.05%
