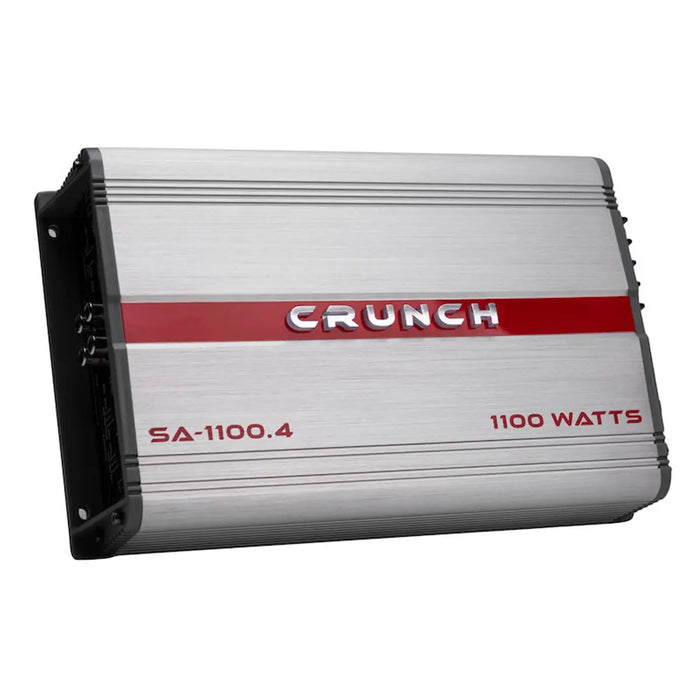

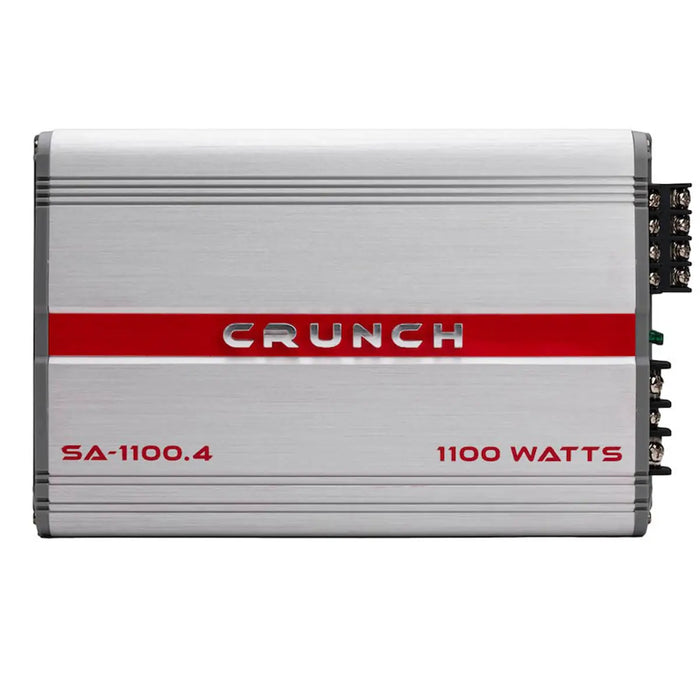

Crunch SA-1100.4 Smash 1100 Watts 4-Channel Class A/B Car Audio Amplifier

by Crunch
Out of Stock
$72.45
Condition: NEW
Checked 30-Day Money-Back Guarantee
Checked Fast, Free Shipping on all US Orders
Checked Live Customer Service Representative
Checked Buy Online, Free Local Pickup (Contact us for Availability)

California customers:
Please click here for your Proposition 65 warning.

Crunch SA-1100.4 Smash 1100 Watts 4-Channel Car Audio Amplifier

This Smash 1,100 Watt 4 Channel Amp features a heat sink that keeps the amplifiers from overheating and a power supply that delivers power with minimal impact on the electrical system, embrace the highest sound quality connection with RCA materials that help prevent interference and minimize distortion. Anywhere the adventure leads to, Smash will be there for your audio.

Features:

  • LOW NOISE PREAMPLIFIER CIRCUIT
    Maximum low voltage signal from the source unit comes into the amplifier through a low voltage circuit which delivers minimal distortion through the amplification process.

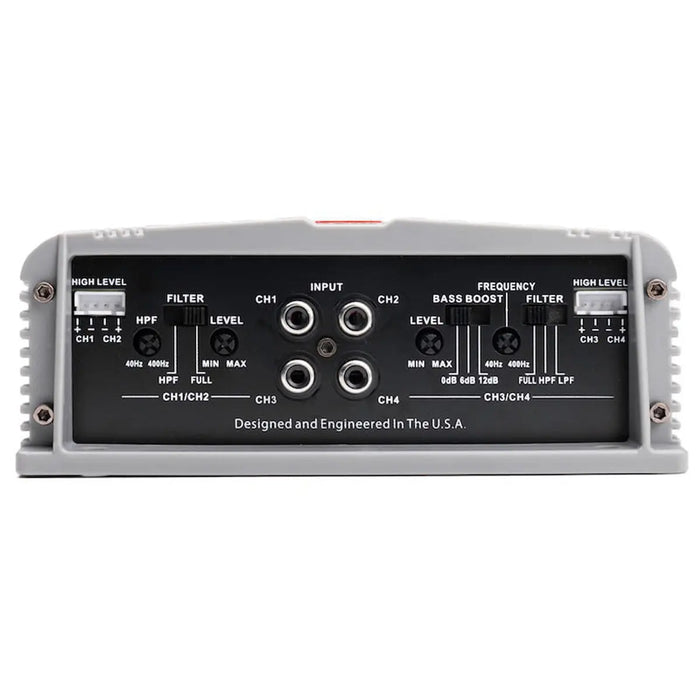

  • RCA INPUTS
    Highest sound quality connection with quality RCA materials helps prevent interference and minimize distortion in the signal path.
  • HIGH-LEVEL INPUTS
    Easily tie into OEM audio systems that do not offer RCA output to maximize after-market amplifier power.
  • OPERATION MODE
    Four-Channel Stereo, Dual Stereo Bridged, Stereo + Bridged Mono, Dual Bridged Mono
  • CROSSOVER TYPE
    Variable Electronic 12dB Per Octave
  • ELECTRONIC EQUALIZER
    Fully Adjustable 12dB Crossovers
  • CLASS/TOPOLOGY
    Class A/B: High sound quality circuit that allows Smash to develop high levels of power with minimal distortion.
  • OUTPUT DEVICE TECHNOLOGY
    Exclusive Crunch SPEED-FET MOSFET components maximize power efficiency while improving sound quality and minimizing distortion.
  • HEAT SINK
    QTD Technology Aluminum: Quick Thermal Dispersion Technology assures additional mass in the aluminum heat sink keeps the amplifier running cool with nearly undetectable distortions during normal music listening.
  • POWER SUPPLY
    High energy Pulse Width Modulated Power Supply delivers power with minimal impact on the electrical system.

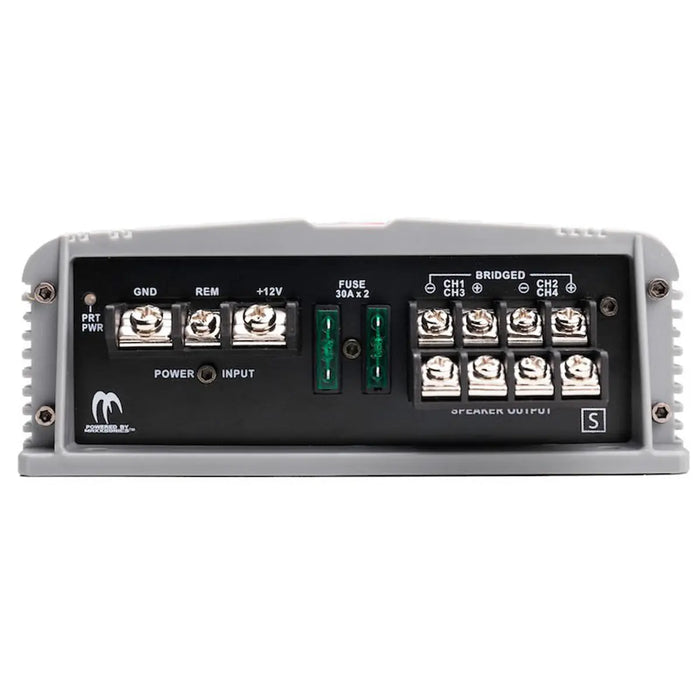

  • OUTPUT CONNECTIONS
    Nickel Plated Brass Connection with terminals allow for secure connection while resisting corrosion.
  • CONNECTION TYPE
    Screw Down Connectors: Easy access for hand tool allowing a quick and secure connection.
  • LED SYSTEM PROTECTION CIRCUITRY DIAGNOSTICS
    Monitor overload and speaker short protection with lighted indicators on the amplifier end panel.

Specifications:

  • CLASS
    Class A/B
  • TOTAL CHANNELS
    4
  • POWER @ 1 OHM (CH X WATTS)
    N/A
  • POWER @ 2 OHMS (CH X WATTS)
    4 x 40
  • POWER @ 4 OHMS (CH X WATTS)
    4 x 30
  • MONO BRIDGED @ 4 OHMS (CH X WATTS)
    2 x 60
  • CROSSOVER
    Variable Electronic 12dB Per Octave
  • TONE CONTROL/PARAMETRIC EQ
    Built-in bass control
  • BASS BOOST
    Switchable: 0 / +6 / +12dB
  • VARIABLE VOLTAGE
    .2 to 9V
  • FREQUENCY RESPONSE
    10Hz-22kHz
  • SPEAKER LEVEL AUDIO INPUTS
    Yes
  • POWER TERMINAL 12V/GND
    4 AWG
  • SPEAKER TERMINAL WIRE GAUGE
    12 AWG
  • FUSING
    30A
