8-Port Ethernet Gigabit Unmanaged PoE+ Switch with 2 Gigabit Uplink Ports 120W

Sorry, this product has been discontinued.

8-Port Ethernet Gigabit Unmanaged PoE+ Switch with 2 Gigabit Uplink Ports 120W

A reliable 10/100 / 1000Mbps IEEE 802.3af / 802.3at compliant PoE + switch with a total PoE power supply of 120W. Ideal for small installations of 8 PoE devices (IP phones, wired surveillance cameras, wireless access points).
Auto-discovery technology delivers up to 32W to 802.3at PoE + devices that are backwards compatible with 802.3af PoE (15.4W) devices.
The CCTV function supports remote power supply and long-distance data supply up to 250m. This makes it easy to extend the network somewhere without power via an Ethernet cable, but it requires a fix device such as an IP camera.
Port-Power-Prioritization technology ensures continuous power supply for key nodes.
Plug and play, simple setup with no software or configuration required.

‚óŹ 120 watts PoE power supply, up to 30 watts per port
‚óŹ 2 10/100/1000M uplink ports
‚óŹ 8 10/100/1000M PoE+ ports
‚óŹ CCTV mode support remote PoE feeding up to 250m
‚óŹ VLAN mode isolate each PoE Ports for security
‚óŹ Watchdog reactivates the abnormalPD by resuming POE power
‚óŹ IEEE 802.3at / IEEE 802.3af standard compliant
‚óŹ Plug&play, simple setup with no configuration needed


8-Port PoE + 2-Port Uplink

● 10/100/1000Mbps Ethernet Ports
● IEEE 802.3af/802.3at compliant
● 120W total PoE Power supply.
● Ideal for installations of 8 PoE devices
● Pin assignment: alternative 1/2 (+), 3/6 (-)

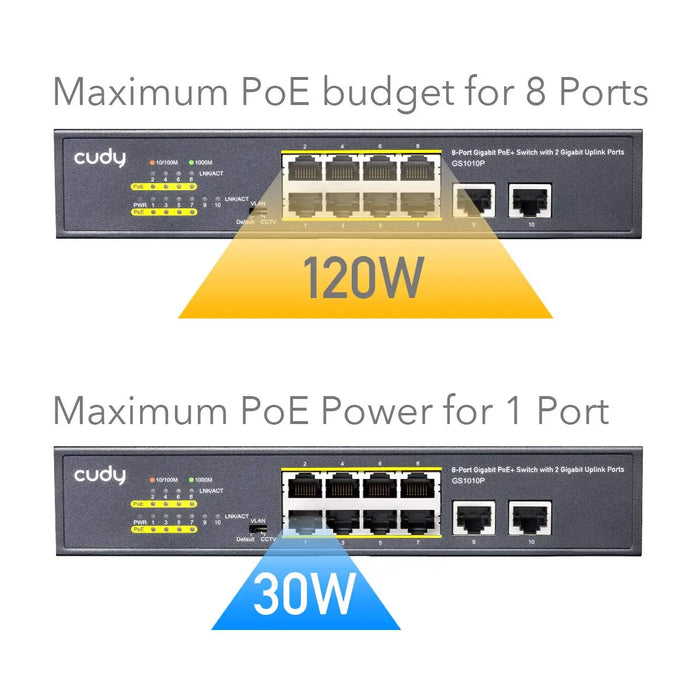

120W Power budget & 30W Maximum One Port

Supports 120W total PoE+ power and up to 30W for one PoE port. Auto detect power device, will not burned non-standard PoE device or normal PoE switch. Complies with IEEE802.3af/at Standard.

Heat Dissipation

● Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment.
● Built-in fan and venting holes help to dissipate heat quickly and ensure stable product operation

High Quality TPS PoE chipset inside

High Quality TPS PoE chipset inside ensure High performance and stable operation of the product.

Auto-sensing technology

● Auto-sensing technology delivers up to 32W to an 802.3at PoE+ device with backwards compatibility for 802.3af PoE (15.4W) devices.
● Port-Power-Prioritization technology ensure continuous power supply of key nodes.

Lightning protection

● Electrostatic standard: contact 6KV, air 8KV
● MTBF > 50000 hour


  • Model: GS1010P
  • PoE standard: IEEE802.3af/at
  • Interface: 10*10/100/1000Mbps The RJ45 port through consultationa
  • Key function: CCTV&VLAN
  • PoE port : ~8 port
  • PoE Total: 120W
  • Power supply : 120W
  • RJ45 PoE power supply: Mode A     Anode1/2     Cathode3/6
  • PoE output-port: Max 32W
  • Indicator: PWR, LNK/ACT, PoE
  • Network media:  10BASE-T: UTP category 3, 4, 5 cable(≤100m);100BASE-TX: UTP category 5, 5e cable(≤100m);
  • 1000BASE-T: UTP category 5e,6 cable(≤100m)
  • MAC Address Table:  8K, Automatic study, automatic updates
  • Jumbo frame: 9216Bytes
  • Packet buffer: 2M bit
  • Transfer Mode: Store-and-forward
  • Packet forwarding rate: 13.4Mpps
  • Bandwidth: 18 Gbps
  • Fan: Fanless
  • Device Dimension: 220*150*44mm
  • Machine Weight: >1kg
  • Green energy saving: Support IEEE(802.3az)
  • Mains Input: 100~240V AC, 50/60Hz
  • Operating Temperature: 0°C ~ 40 °C
  • Storage Temperature : -40 °C ~ 70 °C
  • Operating Humidity: 10% ~ 90% non-condensing
  • Storage Humidity:  5% ~ 90% non-condensing
  • Surge Protection : ±4KV
  • MTBF: >50000 hour
  • Electrostatic standard : Contact 6KV, air 8KV
