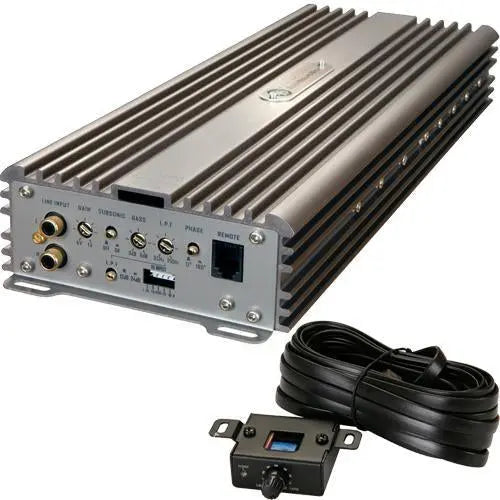

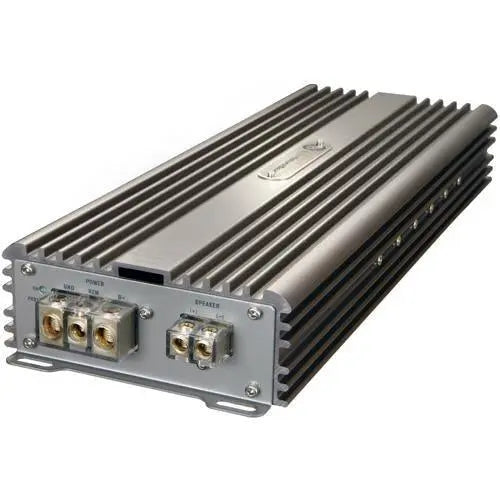

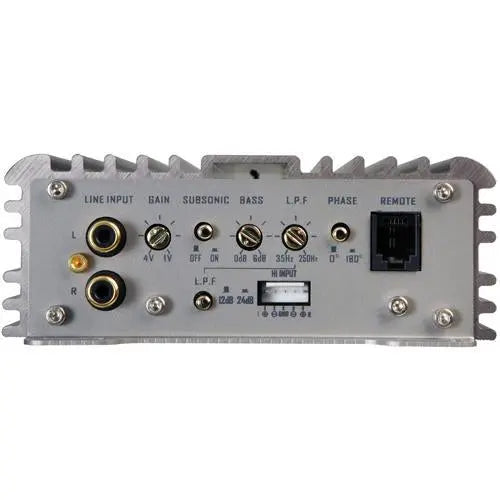

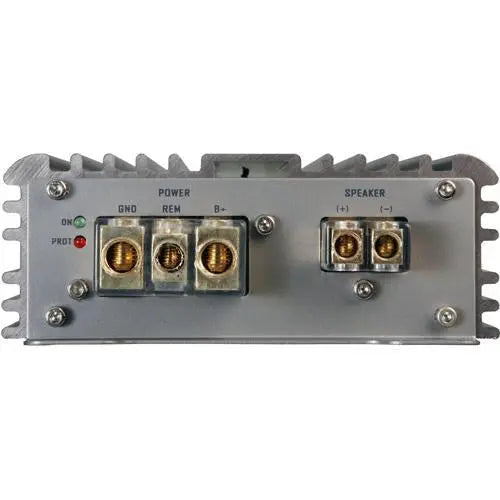

DLS CC-1000 Reference Series 1000 Watt Monoblock Class D Car Amplifier
- Description
- Specs/Features
- Files and Documents
- FAQ
- Proposition 65
Description
Compact and powerful mono amplifier with a power of 1000 Watts RMS @ 1 ohm load
A popular and highly respected power amplifier with high reliability
An amplifier for both amateurs and professional audiophiles
Built-in low-pass filter for subwoofers, variable between 35 and 250 Hz
Built-in protection circuits shut down the amplifier in the event of overloads
Damping factor >150
S/N ratio, A weighted: 92 dB
Remote bass level control is included
High level input with automatic start
RMS output power @ 14.4 Volt
Number of channels: 1
Amplifier class: D
Output power in 1 ohm: 1000 W RMS
Output power in 2 ohm: 700 W RMS
Output power in 4 ohm: 440 W RMS
Damping factor: > 154
Frequency range: 10 Hz - 500 Hz
Low level output: No
Input sensitivity: 1 - 4 Volt
Input impedance: 22 kohm
Input impedance, high level: 45 ohm
High pass filter: Subsonic 30 Hz, ON/OFF
Low pass filter: 35 - 250 Hz, 12 or 24 dB slope
Grand bass filter: Bass boost 0- +6dB variable
Phase control for subwoofers: 0 or 180 degrees switch
High level input with auto start: Yes
Remote phase shift control: No
Power consumption (idle): 0.6 Amp
Power consumption (max): 102 Amp
Integrated fan: No
Rec. power cable: 2 AWG / 33 mm2
Fuses: Use external fuse 100 Amp
Dimensions (W x D x H): 129mm x 368mm x 51mm (5.07" x 14.48" x 2")
Weight: 2.9 kg (6.4 lb)
EAN Bar code: 7331644329305
Authorized Dealer
A popular and highly respected power amplifier with high reliability
An amplifier for both amateurs and professional audiophiles
Built-in low-pass filter for subwoofers, variable between 35 and 250 Hz
Built-in protection circuits shut down the amplifier in the event of overloads
Damping factor >150
S/N ratio, A weighted: 92 dB
Remote bass level control is included
High level input with automatic start
RMS output power @ 14.4 Volt
Number of channels: 1
Amplifier class: D
Output power in 1 ohm: 1000 W RMS
Output power in 2 ohm: 700 W RMS
Output power in 4 ohm: 440 W RMS
Damping factor: > 154
Frequency range: 10 Hz - 500 Hz
Low level output: No
Input sensitivity: 1 - 4 Volt
Input impedance: 22 kohm
Input impedance, high level: 45 ohm
High pass filter: Subsonic 30 Hz, ON/OFF
Low pass filter: 35 - 250 Hz, 12 or 24 dB slope
Grand bass filter: Bass boost 0- +6dB variable
Phase control for subwoofers: 0 or 180 degrees switch
High level input with auto start: Yes
Remote phase shift control: No
Power consumption (idle): 0.6 Amp
Power consumption (max): 102 Amp
Integrated fan: No
Rec. power cable: 2 AWG / 33 mm2
Fuses: Use external fuse 100 Amp
Dimensions (W x D x H): 129mm x 368mm x 51mm (5.07" x 14.48" x 2")
Weight: 2.9 kg (6.4 lb)
EAN Bar code: 7331644329305
Authorized Dealer
Specs/Features
Compact and powerful mono amplifier with a power of 1000 Watts RMS @ 1 ohm load
A popular and highly respected power amplifier with high reliability
An amplifier for both amateurs and professional audiophiles
Built-in low-pass filter for subwoofers, variable between 35 and 250 Hz
Built-in protection circuits shut down the amplifier in the event of overloads
Damping factor >150
S/N ratio, A weighted: 92 dB
Remote bass level control is included
High level input with automatic start
RMS output power @ 14.4 Volt
Number of channels: 1
Amplifier class: D
Output power in 1 ohm: 1000 W RMS
Output power in 2 ohm: 700 W RMS
Output power in 4 ohm: 440 W RMS
Damping factor: > 154
Frequency range: 10 Hz - 500 Hz
Low level output: No
Input sensitivity: 1 - 4 Volt
Input impedance: 22 kohm
Input impedance, high level: 45 ohm
High pass filter: Subsonic 30 Hz, ON/OFF
Low pass filter: 35 - 250 Hz, 12 or 24 dB slope
Grand bass filter: Bass boost 0- +6dB variable
Phase control for subwoofers: 0 or 180 degrees switch
High level input with auto start: Yes
Remote phase shift control: No
Power consumption (idle): 0.6 Amp
Power consumption (max): 102 Amp
Integrated fan: No
Rec. power cable: 2 AWG / 33 mm2
Fuses: Use external fuse 100 Amp
Dimensions (W x D x H): 129mm x 368mm x 51mm (5.07" x 14.48" x 2")
Weight: 2.9 kg (6.4 lb)
EAN Bar code: 7331644329305
Authorized Dealer
