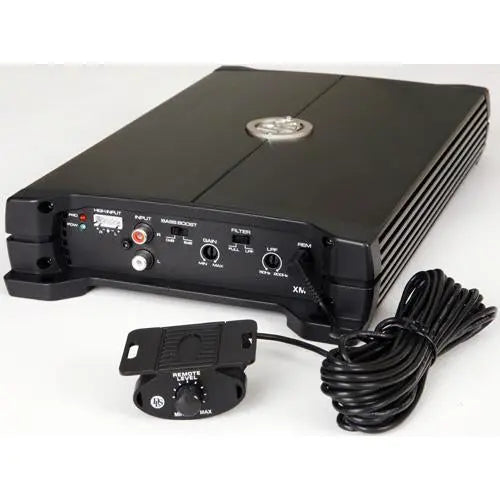

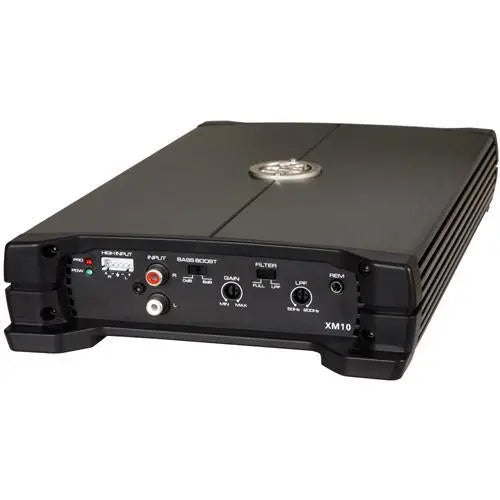

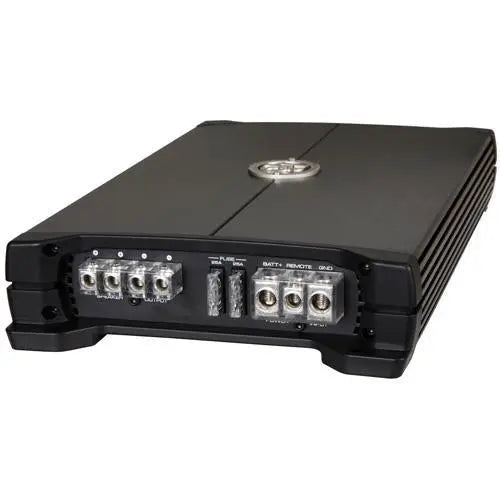

DLS Performance XM10 AB Class 550W Compact Monoblock Car Amplifier
- Description
- Specs/Features
- Files and Documents
- FAQ
- Proposition 65
Description
DLS XM10 Performance Series Class AB 1-Channel Monoblock 550 Watt Car Amplifier
Brand: DLS
MPN: XM10
Condition: New
Compact and powerful mono amplifier with peak music power of 550 Watts @ 2 ohm load
A popular and good power amplifier with high reliability
Built-in low-pass filter for subwoofers, variable between 50 and 200 Hz
With the filter disconnected the amplifier works as a fullrange amplifier
Built-in protection circuits shut down the amplifier in the event of overloads
BASS BOOST switch, +6 dB
Remote bass level control is included
High level input with automatic start
Cooling fan in the bottom plate
RMS output power @ 14.4 V
Authorized Dealer
Brand: DLS
MPN: XM10
Condition: New
Compact and powerful mono amplifier with peak music power of 550 Watts @ 2 ohm load
A popular and good power amplifier with high reliability
Built-in low-pass filter for subwoofers, variable between 50 and 200 Hz
With the filter disconnected the amplifier works as a fullrange amplifier
Built-in protection circuits shut down the amplifier in the event of overloads
BASS BOOST switch, +6 dB
Remote bass level control is included
High level input with automatic start
Cooling fan in the bottom plate
RMS output power @ 14.4 V
Authorized Dealer
Specs/Features
Specifications:
- Number of channels: 1
- Amplifier class: AB
- Peak power: 550 W
- Output power in 2 ohm: 415 W RMS
- Output power in 4 ohm: 256 W RMS
- Mono bridge mode 4 ohm: N/A
- Damping factor: > 80
- S/N ratio, A-weighted: > 93 dB
- Frequency range: 10 Hz - 30 kHz
- Low level output: No
- Input sensitivity: 0.25 - 5 V
- Input impedance: 22 kohm
- Input impedance, high level: 220 ohm
- Low pass filter: 50 - 200 Hz
- Grand bass filter: Bass boost OFF - +6dB
- High level input with auto start: Yes
- Remote phase shift control: No
- Power consumption (idle): 0.6 A
- Remote bass level control: Yes
- Power consumption (max): 50 A
- Integrated fan: Yes
- Rec. power cable: Minimum 5AWG (16 mm2)
- Fuses: 2 x 25 A
- Dimensions (W x D x H): 189mm x 322mm x 51mm (7.44" x 12.67" x 2")
- Weight: 3 kg (6.6 lb)
