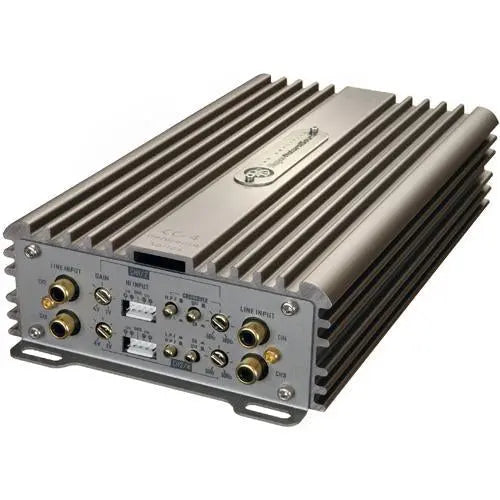

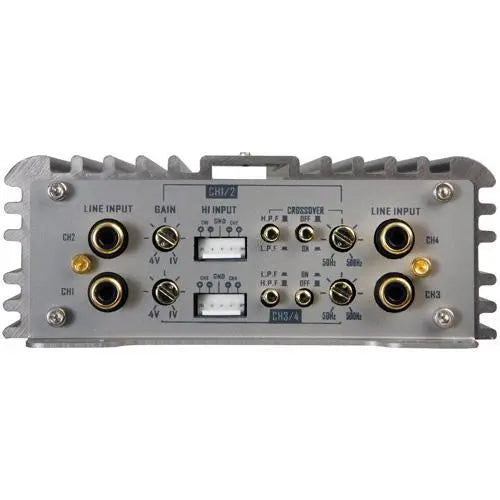

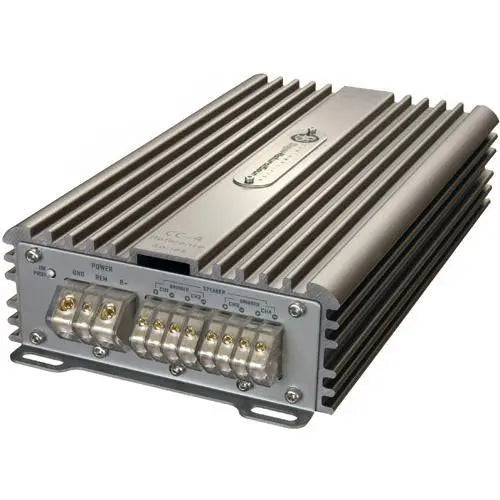

DLS Reference CC4 4-Channel AB Class 280W RMS Compact SQ Car Amplifier

Availability:
Out of stock
Sold out
Original price $0.00 - Original price $0.00
Original price $0.00
$176.95
$176.95 - $176.95
Current price $176.95

DLS Reference CC4 4-Channel AB Class 280W RMS Compact SQ Car Amplifier

  • Small and powerful amplifier with power output of 4 x 70 Watts RMS, and in mono bridge-connection
  • It puts out all of 2 x 140 Watts
  • A good sounding amplifier for both amateurs and professionals
  • Built-in/switchable low pass and high pass filters
  • Damping factor >250
  • Signal to noise ratio, A-weighted: 110 dB
  • THD at 5W, 1 kHz. <0,02%
  • Built-in protection circuits shut down the amplifier in the event of overloads
  • Hi level input with Auto start
  • Use it for a front system and a subwoofer
  • Number of channels: 4
  • Amplifier class: AB
  • Output power in 2 ohm: 4 x 70 Watt
  • Output power in 4 ohm: 4 x 50 Watt
  • Mono bridge mode 4 ohm: 2 x 140 Watt
  • Damping factor: >250
  • S/N ratio, A-weighted: >110 dB
  • Frequency range: 10 Hz - 50 kHz
  • Input sensitivity: 1 - 4 Volt
  • Input impedance: 6 kohm
  • Input impedance, high level: 45 ohm
  • High level input with auto start: Yes
  • Remote bass level control: No
  • Low level output: No
  • Remote phase shift control: No
  • Filters channel A & B: HP 50 - 500 Hz, LP 50 - 500 Hz
  • Filters channel C & D: HP 50 - 500 Hz, LP 50 - 500 Hz
  • Power consumption (idle): 0.5 A
  • Power consumption (max): 40 A
  • Rec. power cable: 16 sq mm (5 AWG)
  • Fuses: 2 x 20 A
  • Dimensions (W x D x H): 129mm x 250mm x 51mm (5.07" x 9.85" x 2")
  • Weight: 1.8 kg
  • Authorized Dealer
